Telematics Button Assembly S51
Telematics Button Assembly S51

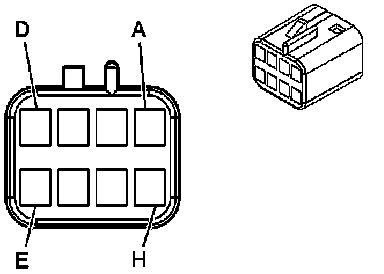

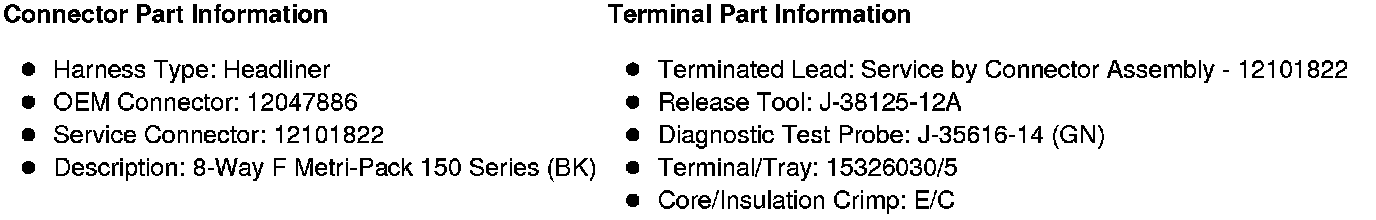

Component Connector End Views

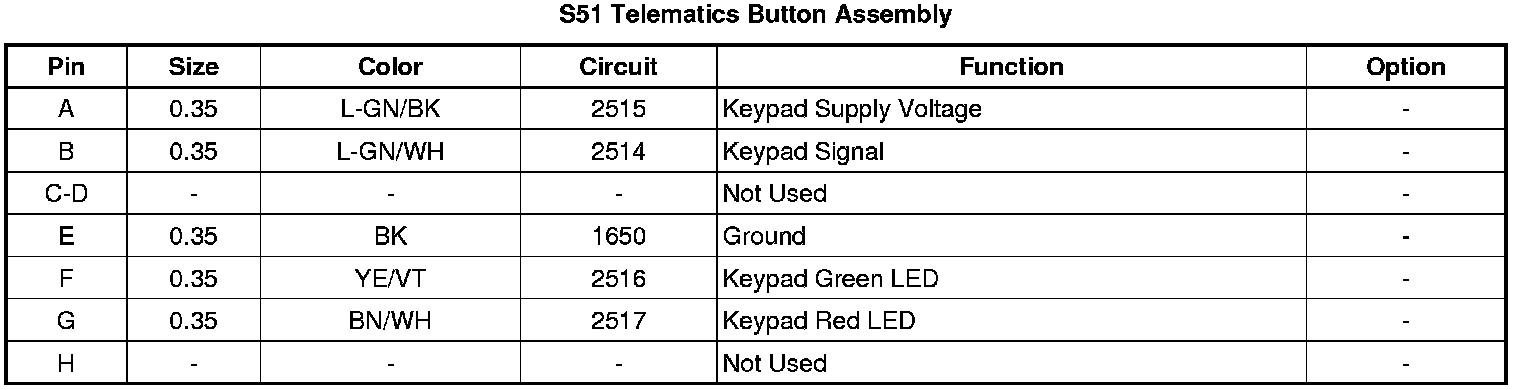

S51 Telematics Button Assembly
