Multi-Function Switch - Overhead Console S48B
Multi-Function Switch - Overhead Console S48B

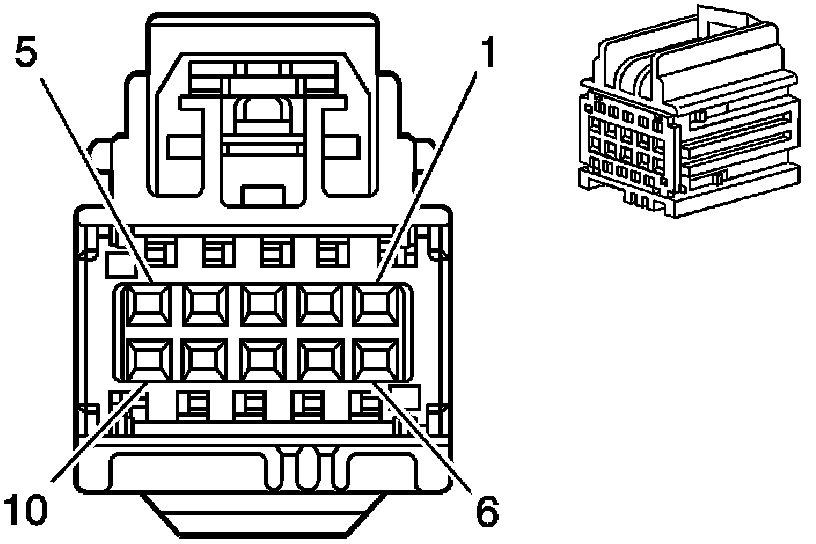

Component Connector End Views

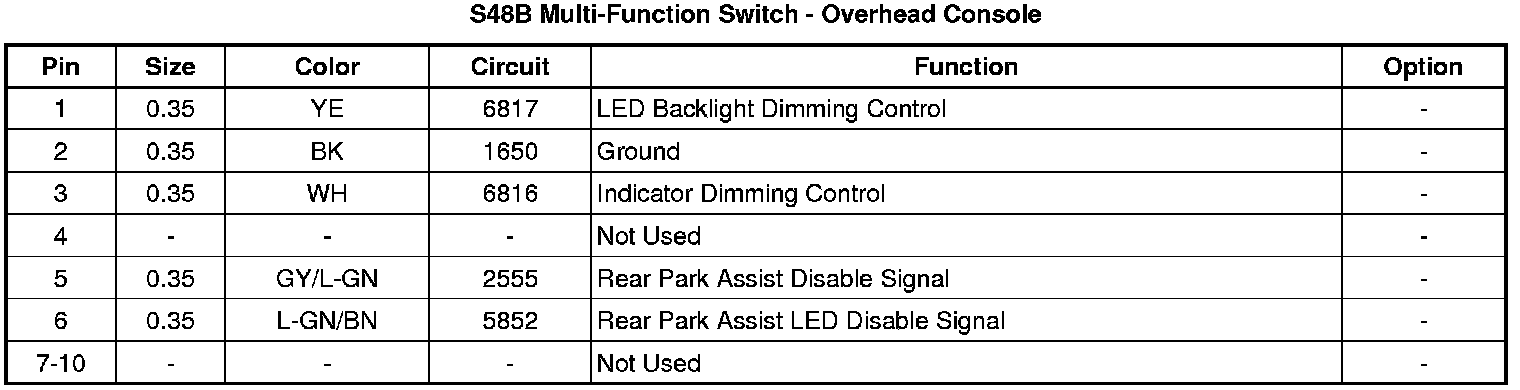

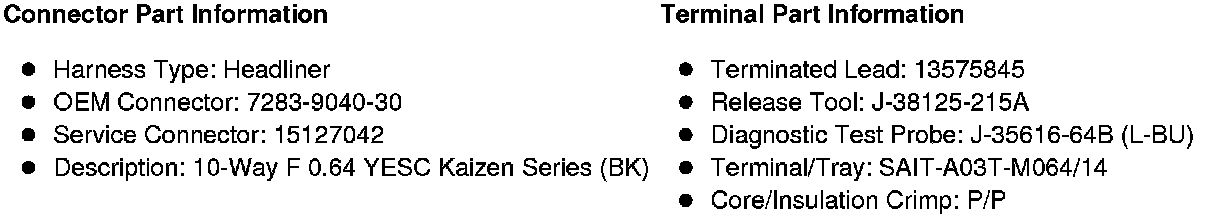

S48B Multi-Function Switch - Overhead Console
