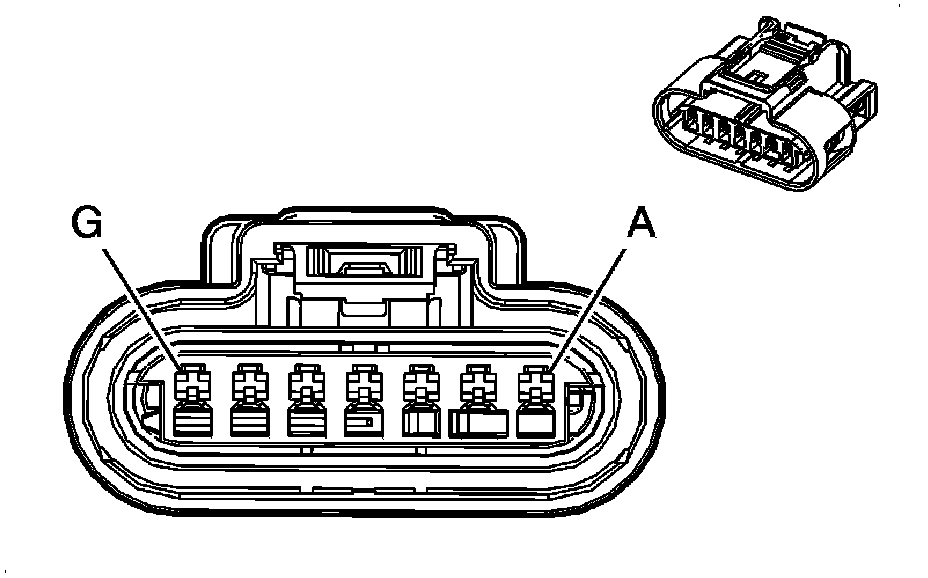

Ignition Coil Module K35
Ignition Coil Module K35

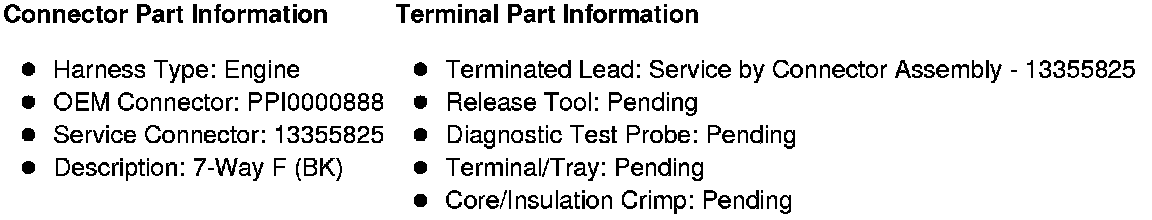

Component Connector End Views
K35
Ignition Coil
Module
