Auxiliary Data Connector X84B
Auxiliary Data Connector X84B
Component Connector End Views

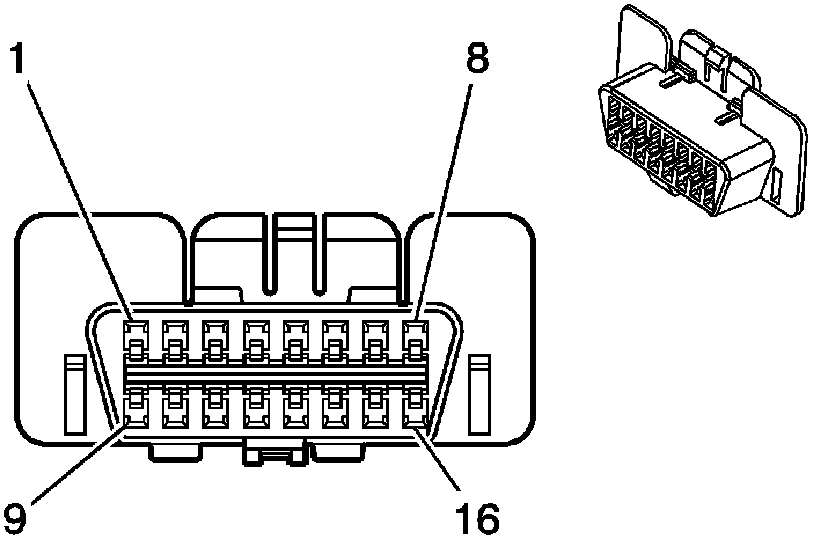

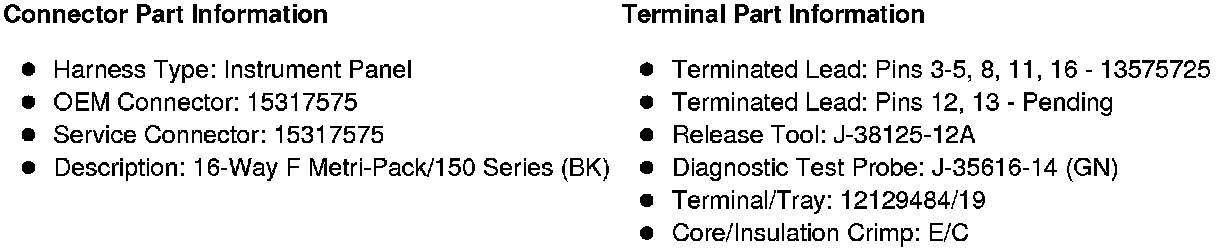

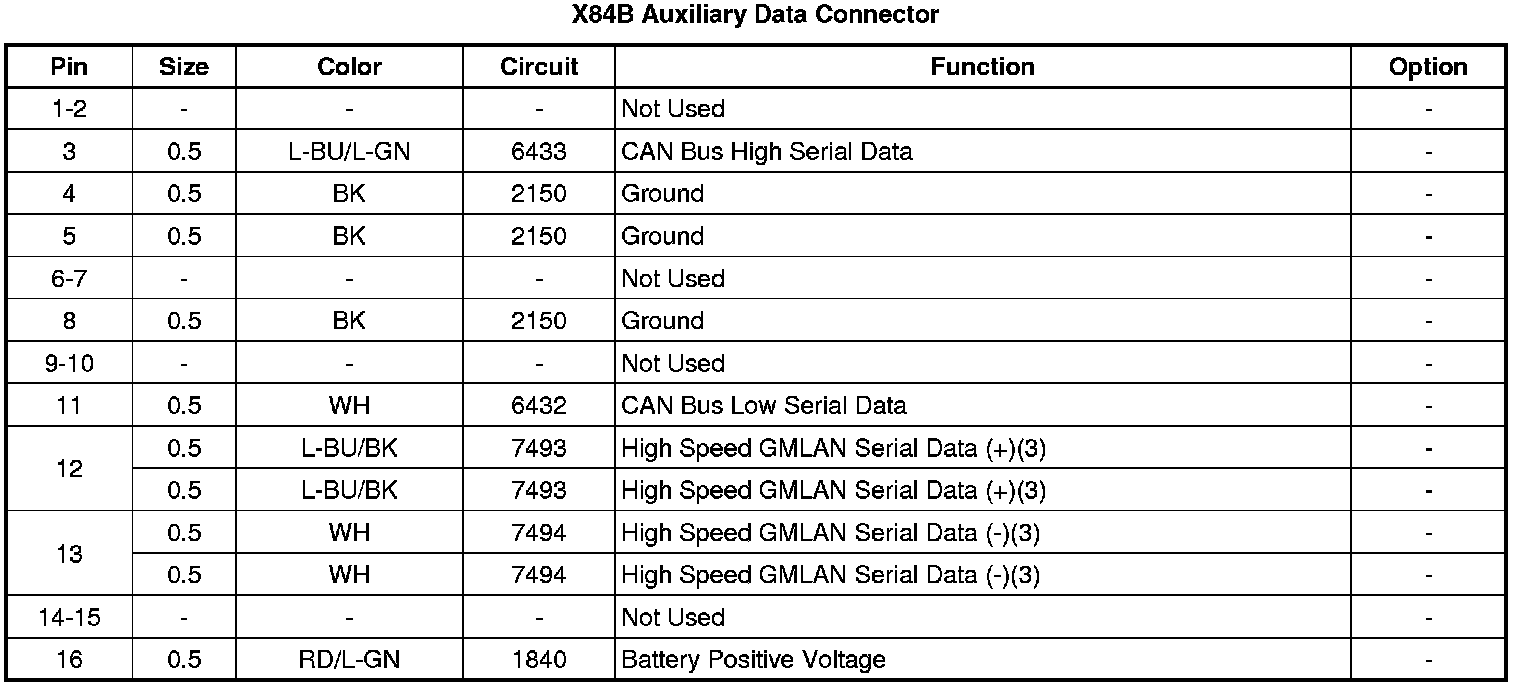

X84B Auxiliary Data Connector
