Brake Control Brake Pedal Position Sensor

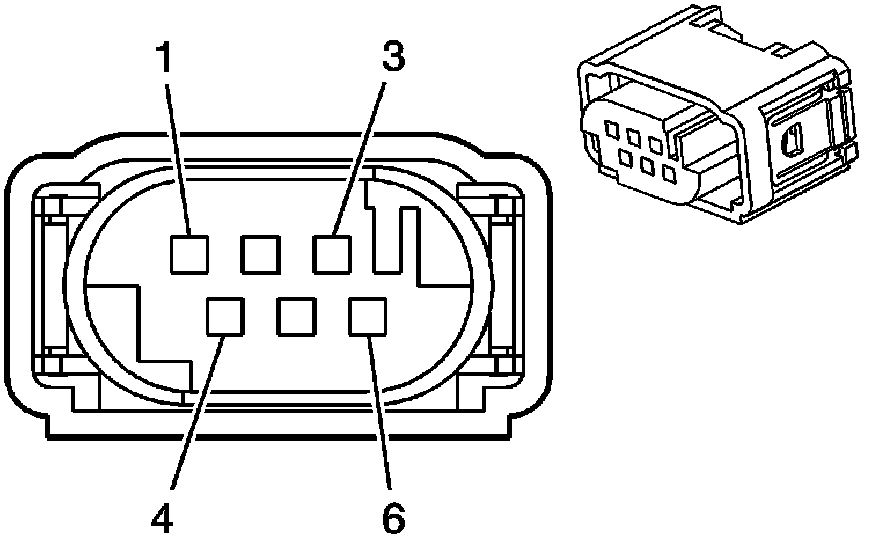

Component Connector End Views

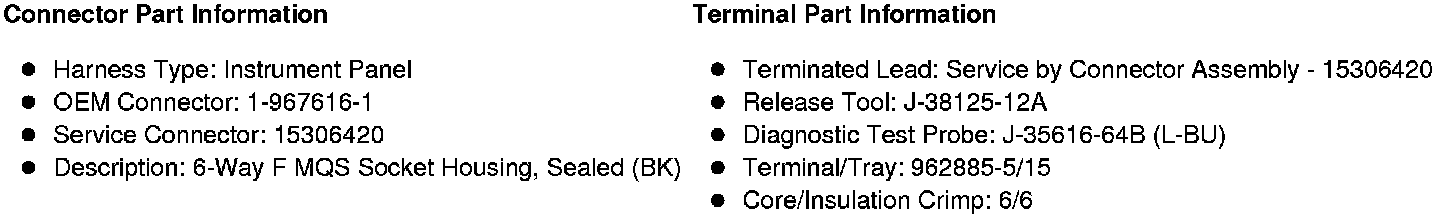

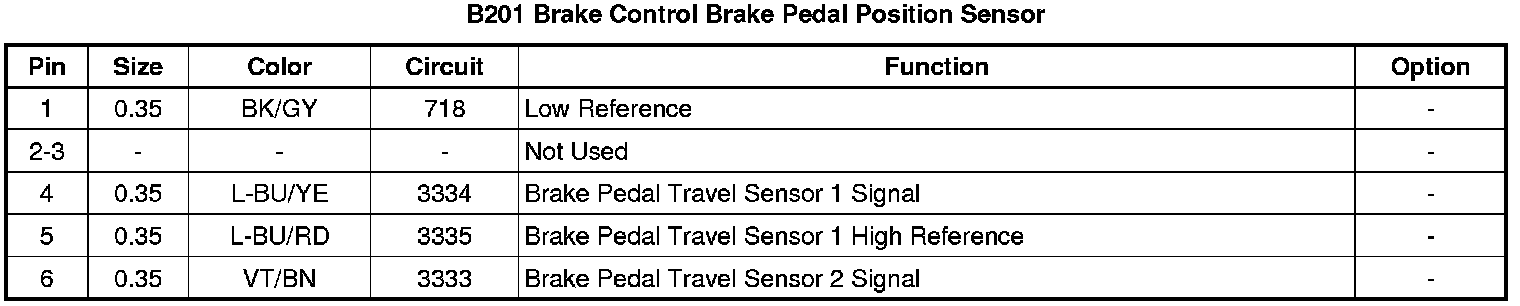

B201 Brake Control Brake Pedal Position Sensor
