Control Solenoid Valve Assembly (MH2)
Control Solenoid Valve Assembly (MH2)
Component Connector End Views

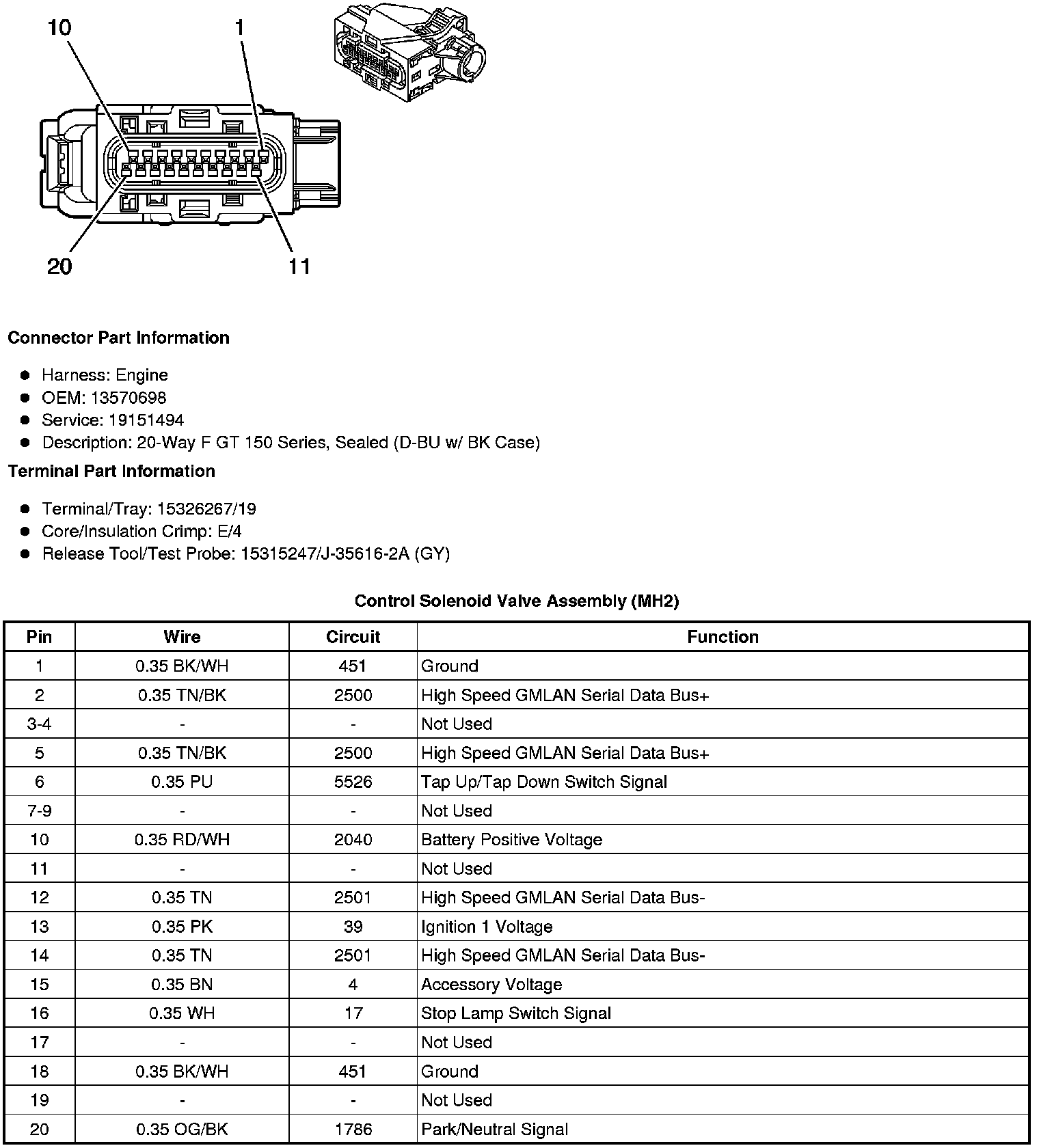

Control Solenoid Valve Assembly (MH2)
