Auxiliary Power Outlet
Auxiliary Power Outlet

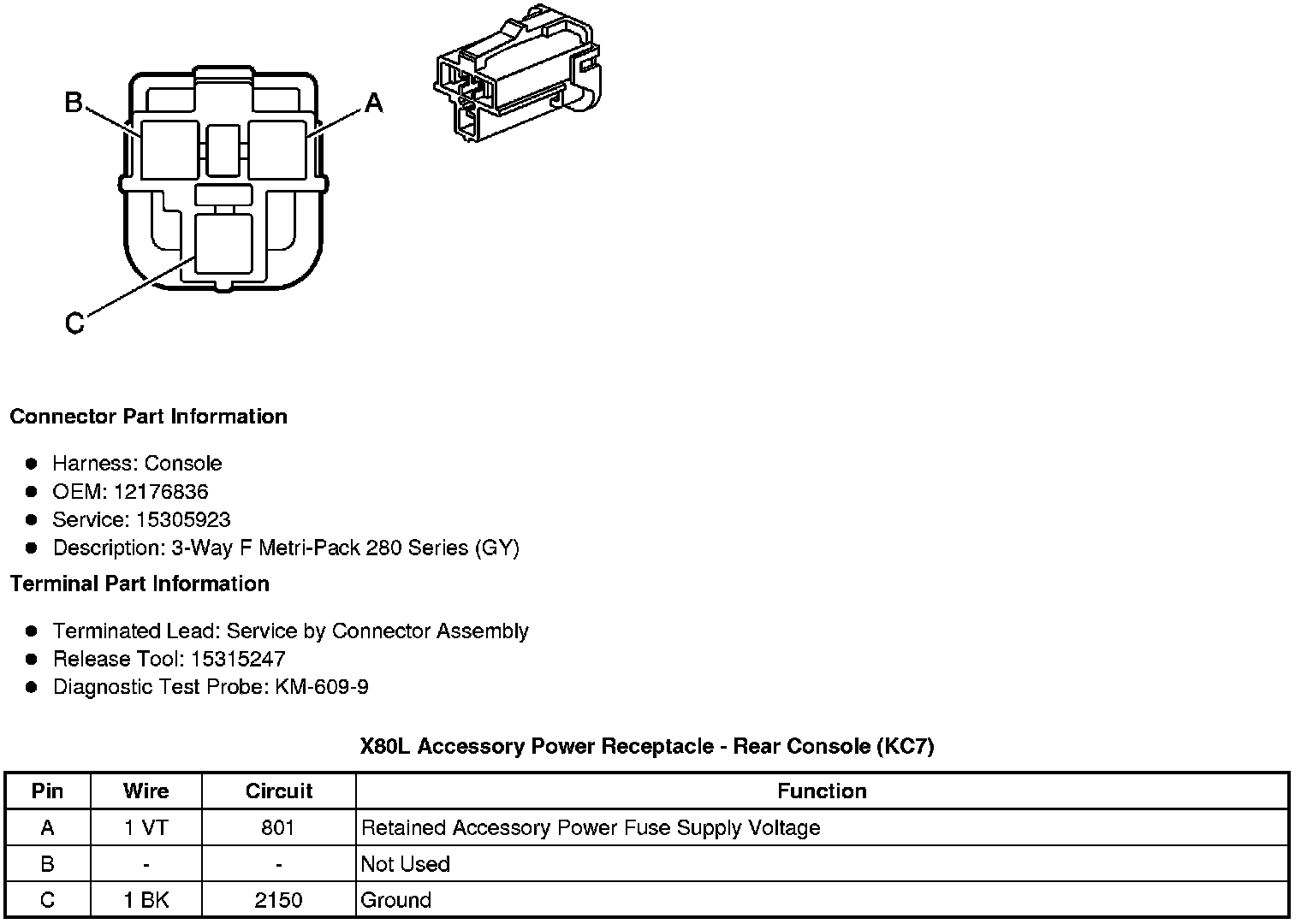

Component Connector End Views
X80L Accessory Power Receptacle - Rear Console (KC7)
