Fuse Block - Battery Auxiliary

Luggage Compartment/Rear of Vehicle Component Views

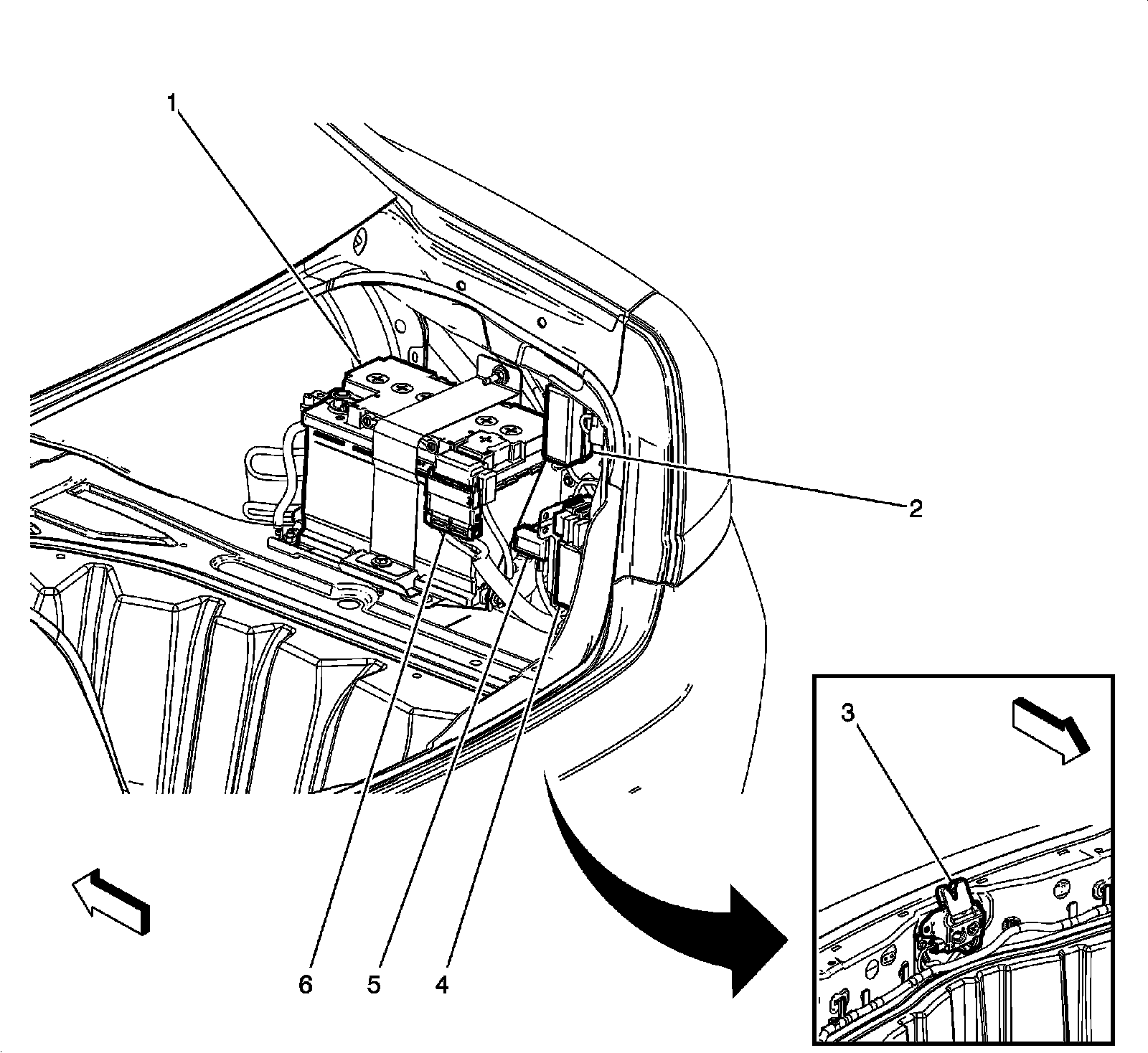

Right Side of the Rear Compartment Components





1 - C1B Battery- Auxiliary

2 - Fuse

3 - M40 Rear Compartment Lid Latch

4 - X53C Fuse Block - Rear Body Right

5 - U1- Battery Isolator

6 - X50E Fuse Block - Battery Auxiliary
