System Diagram
Engine Controls Schematics

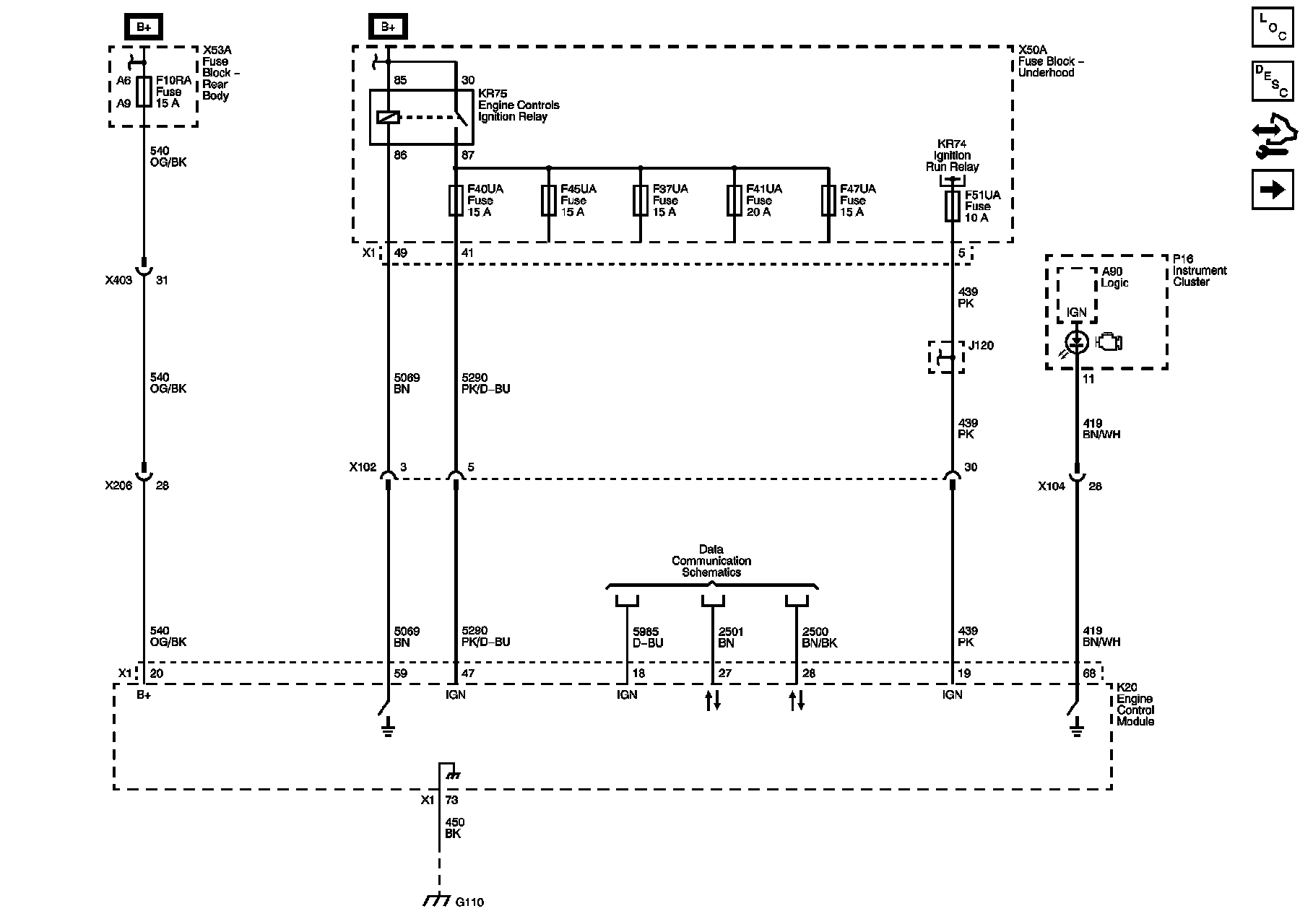

Module Power, Ground and Serial Data

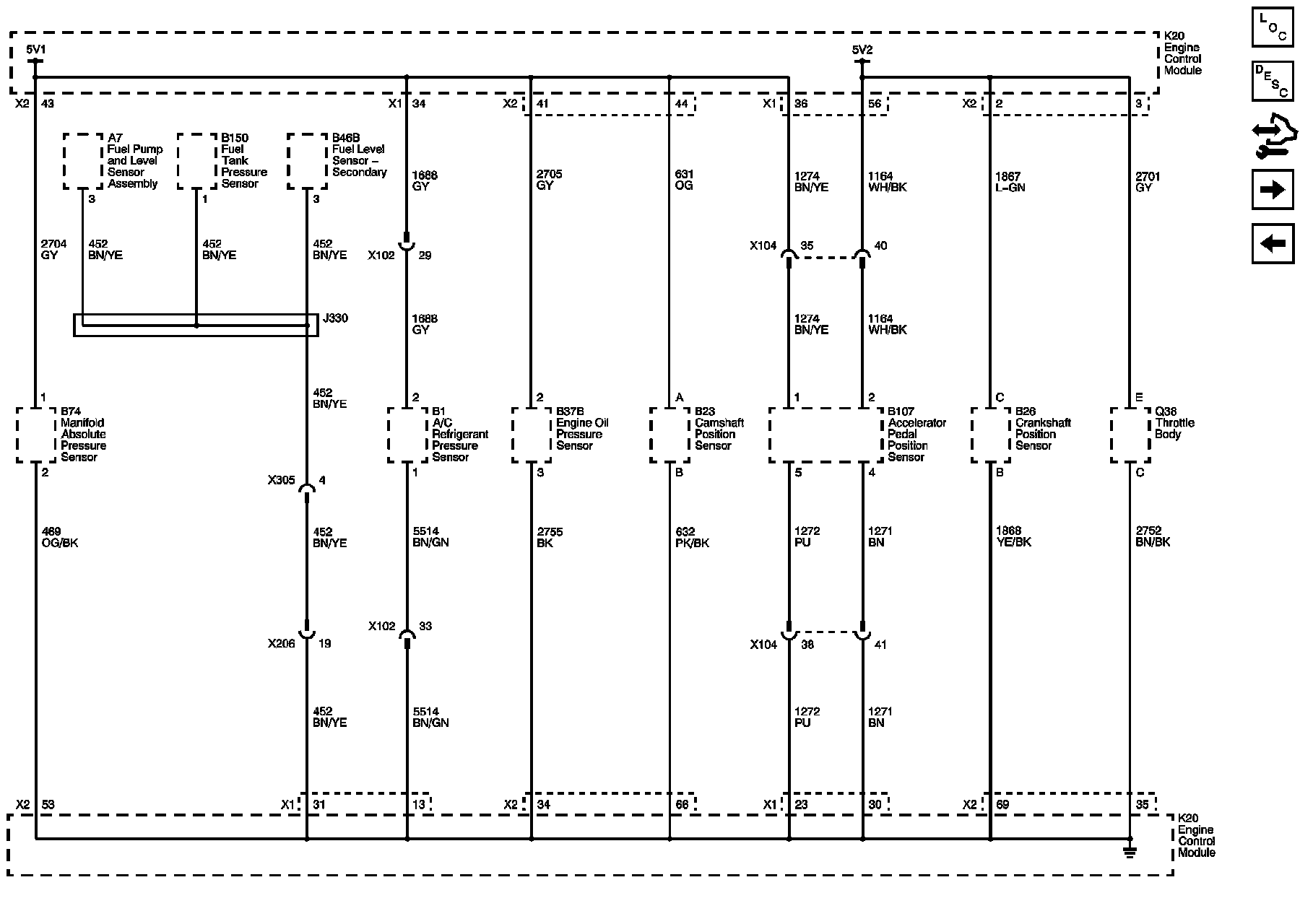

5V1, 5V2, and Low Reference Bus
Pressure and Temperature Sensors
Throttle Controls

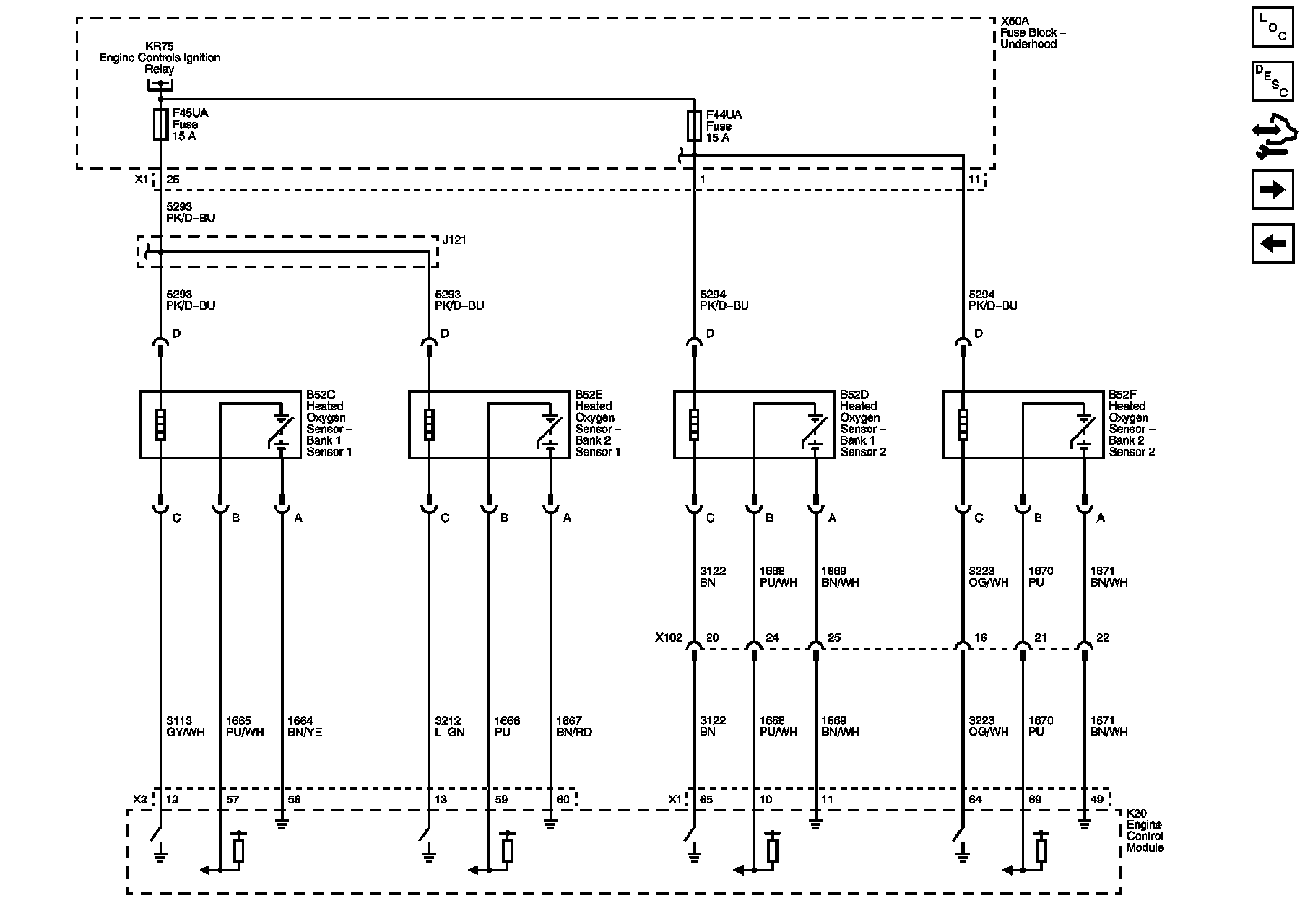

Oxygen Sensors
Ignition System Coils 1, 3, 5, and 7

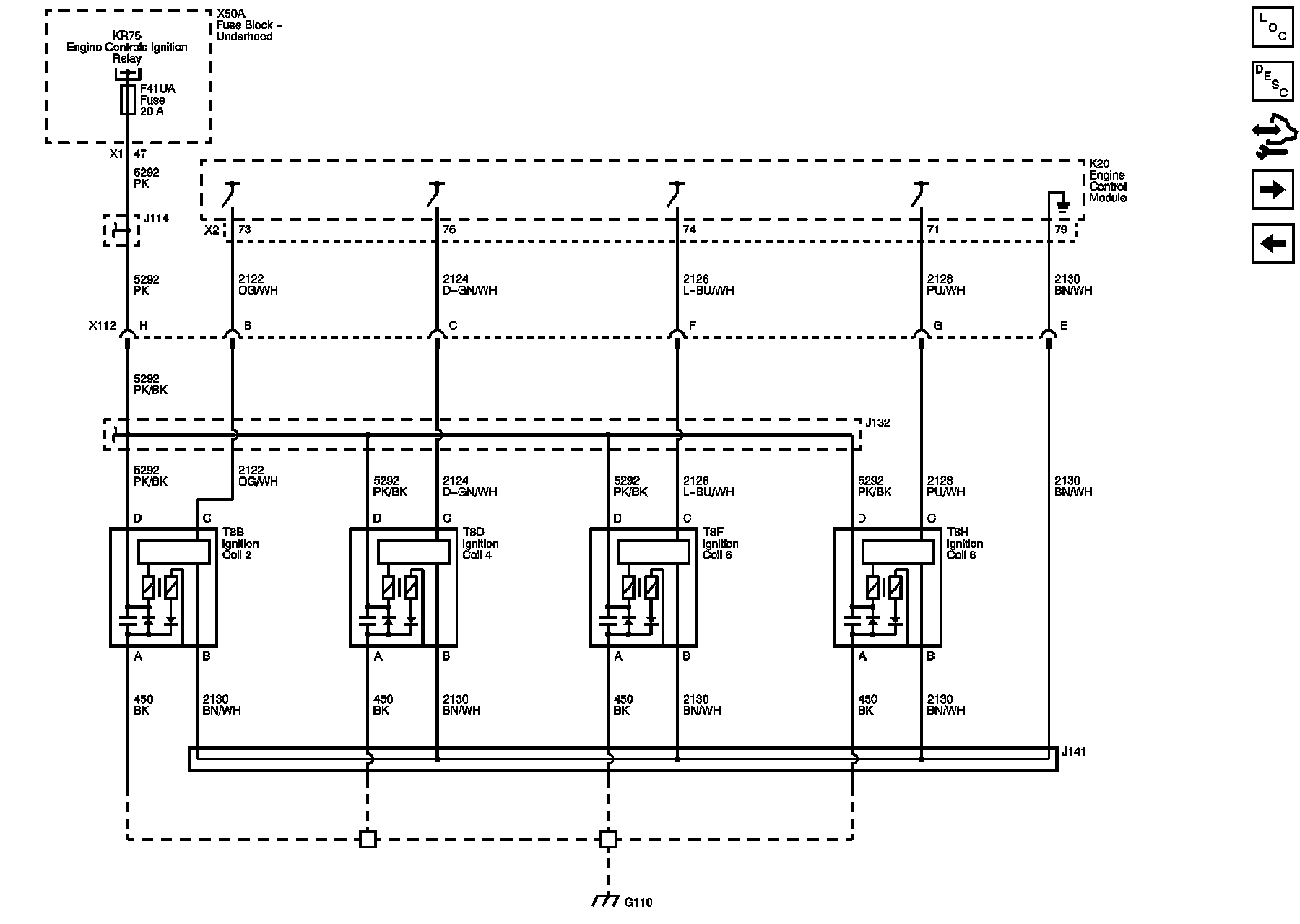

Ignition System Coils 2, 4, 6, and 8

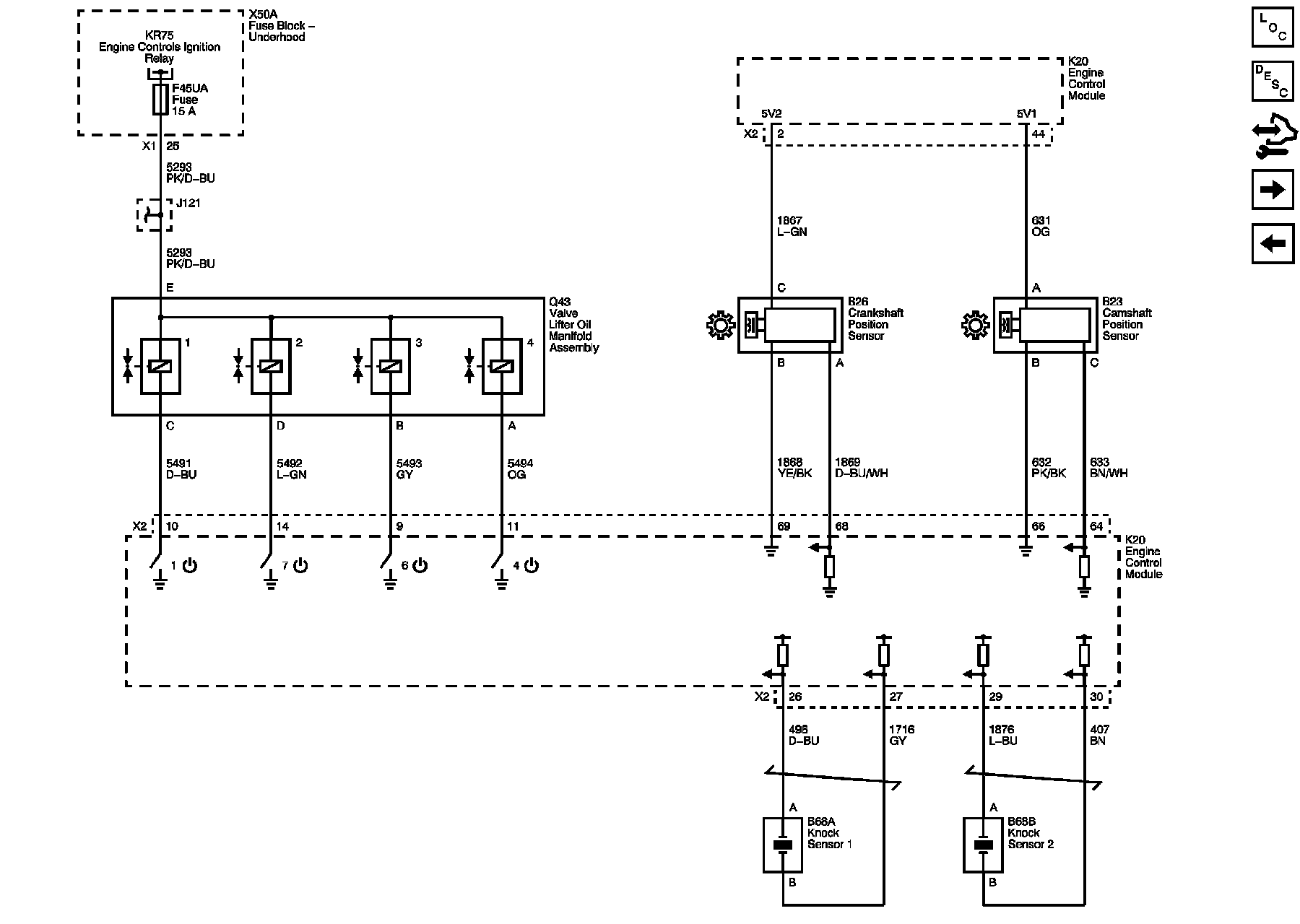

Camshaft, Crankshaft, and Knock Sensors

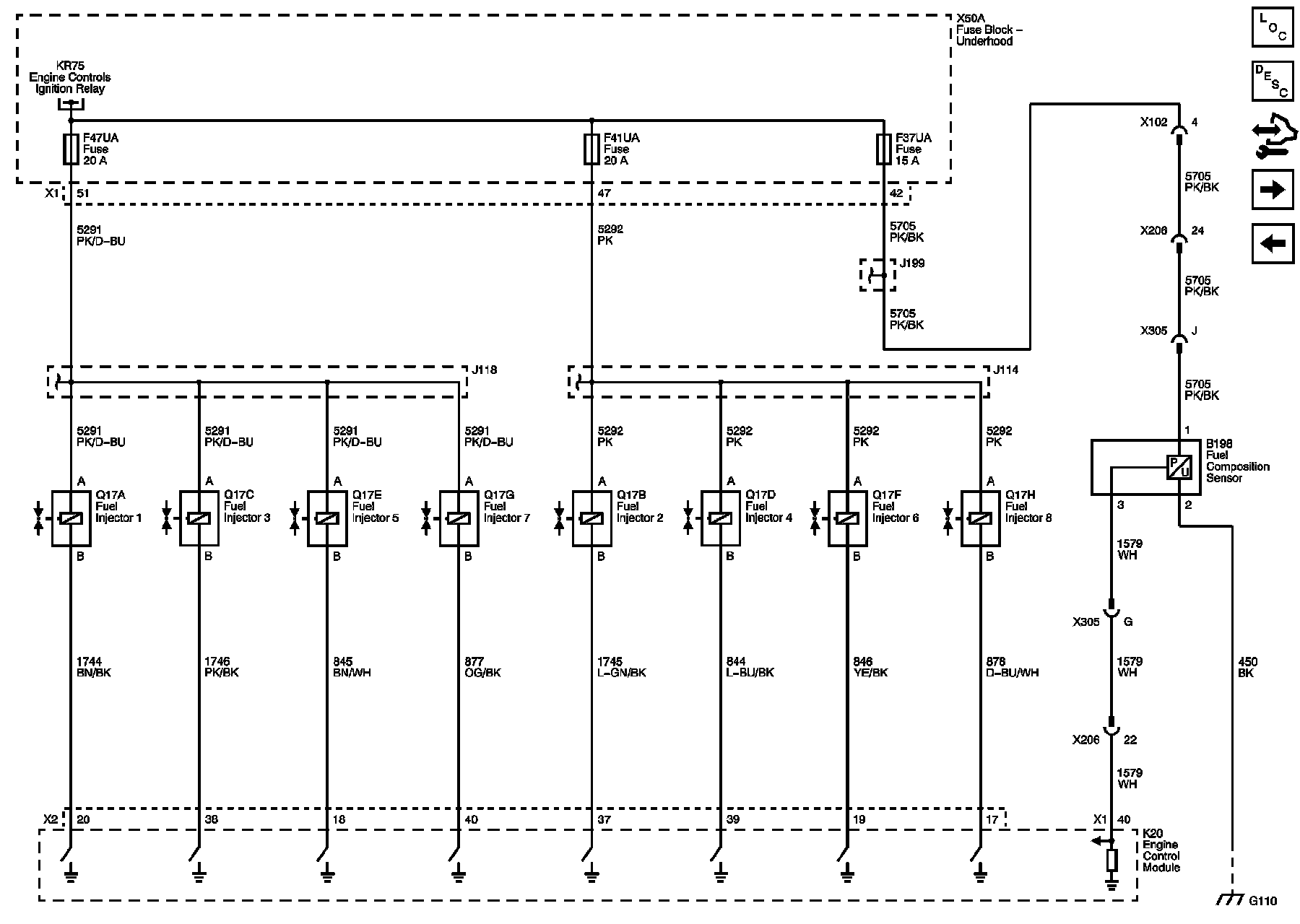

Fuel Injector Controls
Fuel Controls- Fuel Pump Controls
Fuel Controls- Fuel Pump and Fuel Pressure Sensor Controls
Fuel Controls- Evaporative Emissions Controls

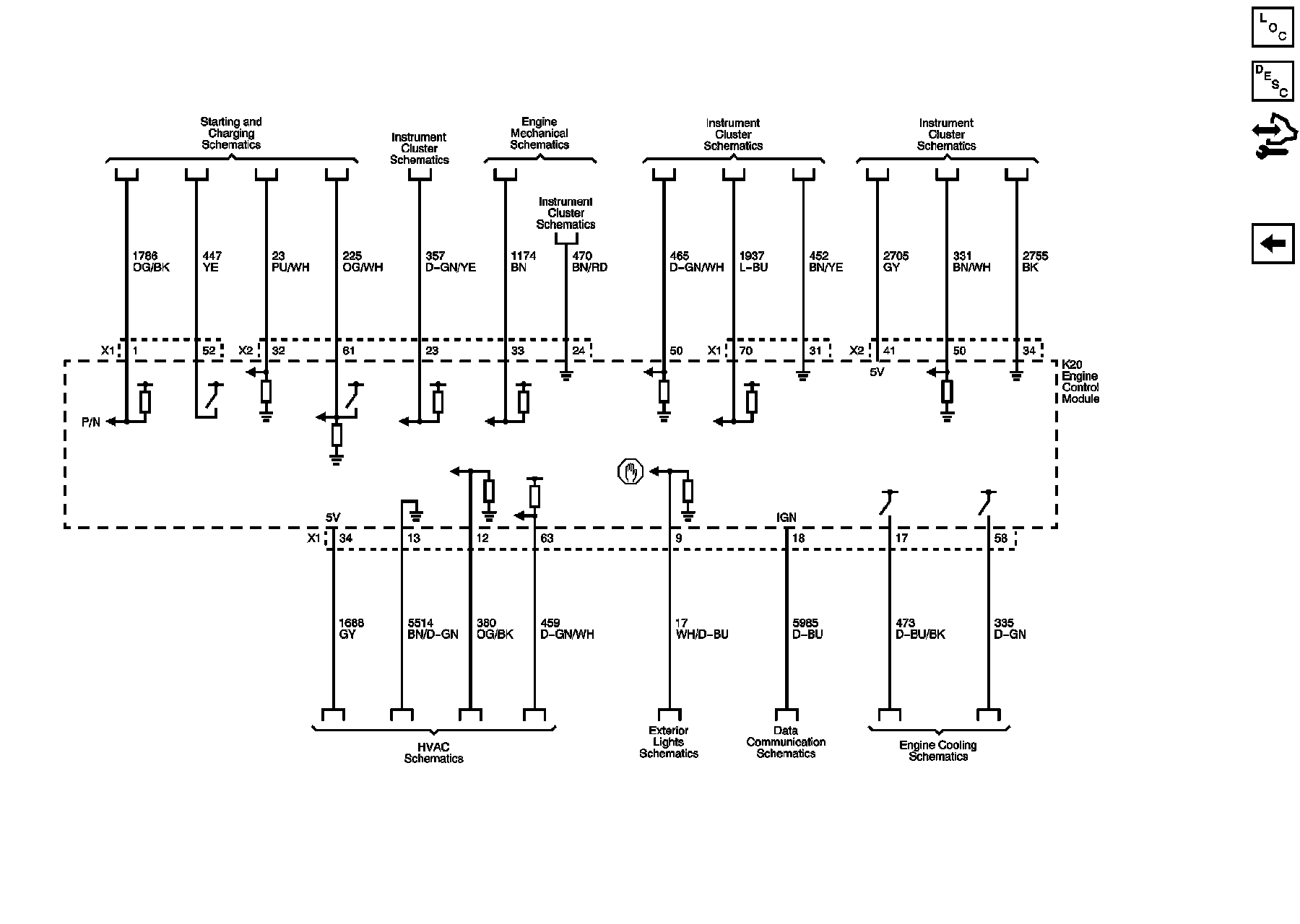

Controlled/Monitored Subsystem References
