Multi-Function Switch Module - Center Console (9C3)
Multi-Function Switch Module - Center Console (9C3)
Component Connector End Views

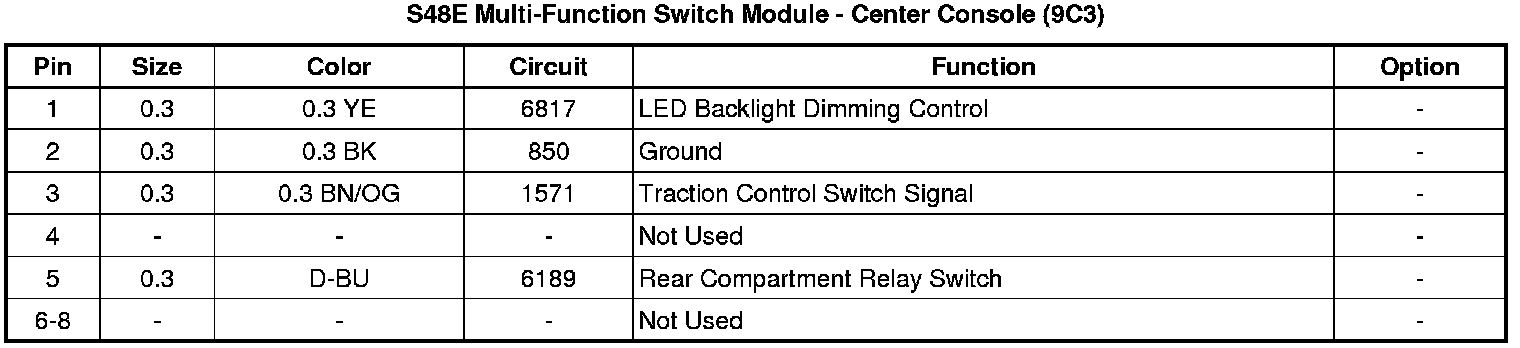

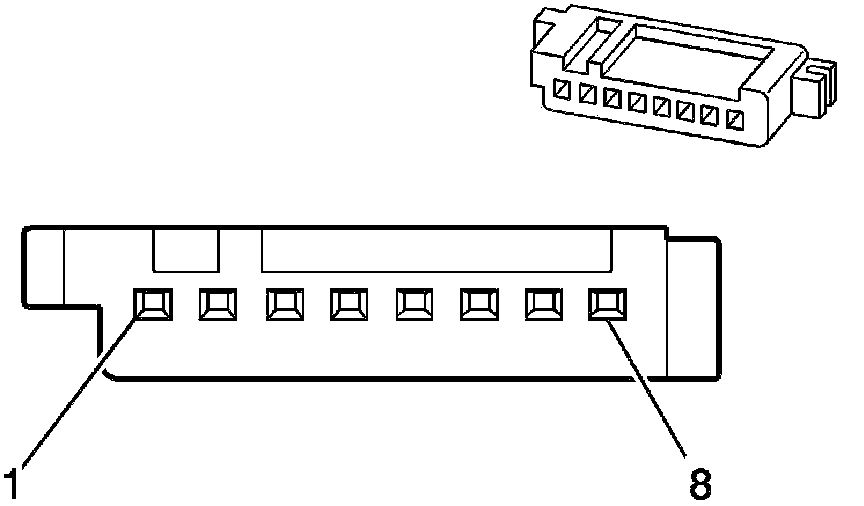

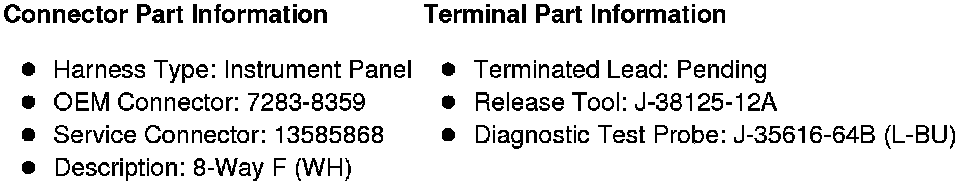

S48E Multi-Function Switch Module - Center Console (9C3)
