HVAC Control Module (without C68)
HVAC Control Module (without C68)

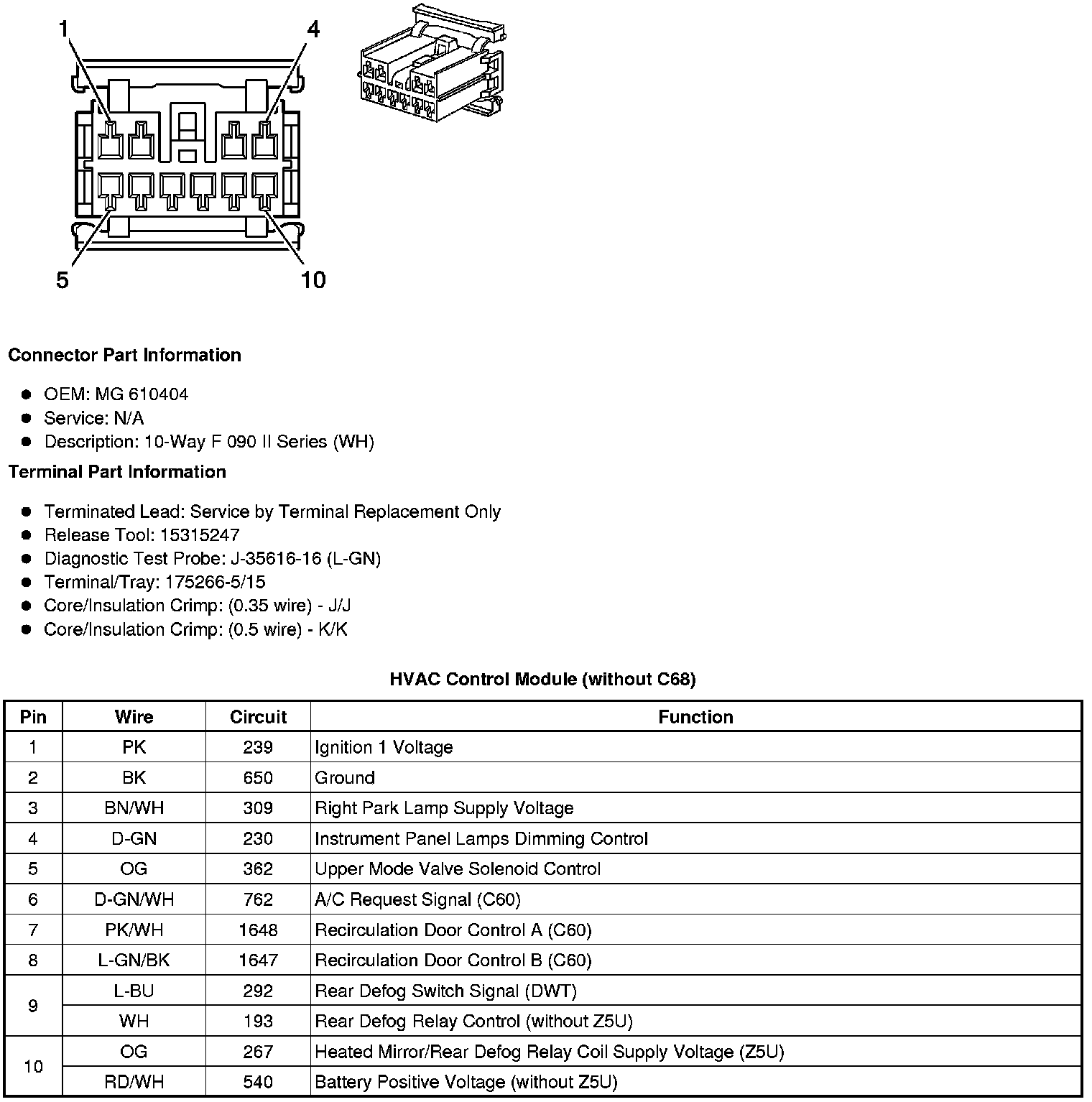

Component Connector End Views
HVAC Control Module (without C68)
