Home
>>
Chevrolet
>>
2011
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Driver (ABZ)
Window Switch - Driver (ABZ)
Component Connector End Views

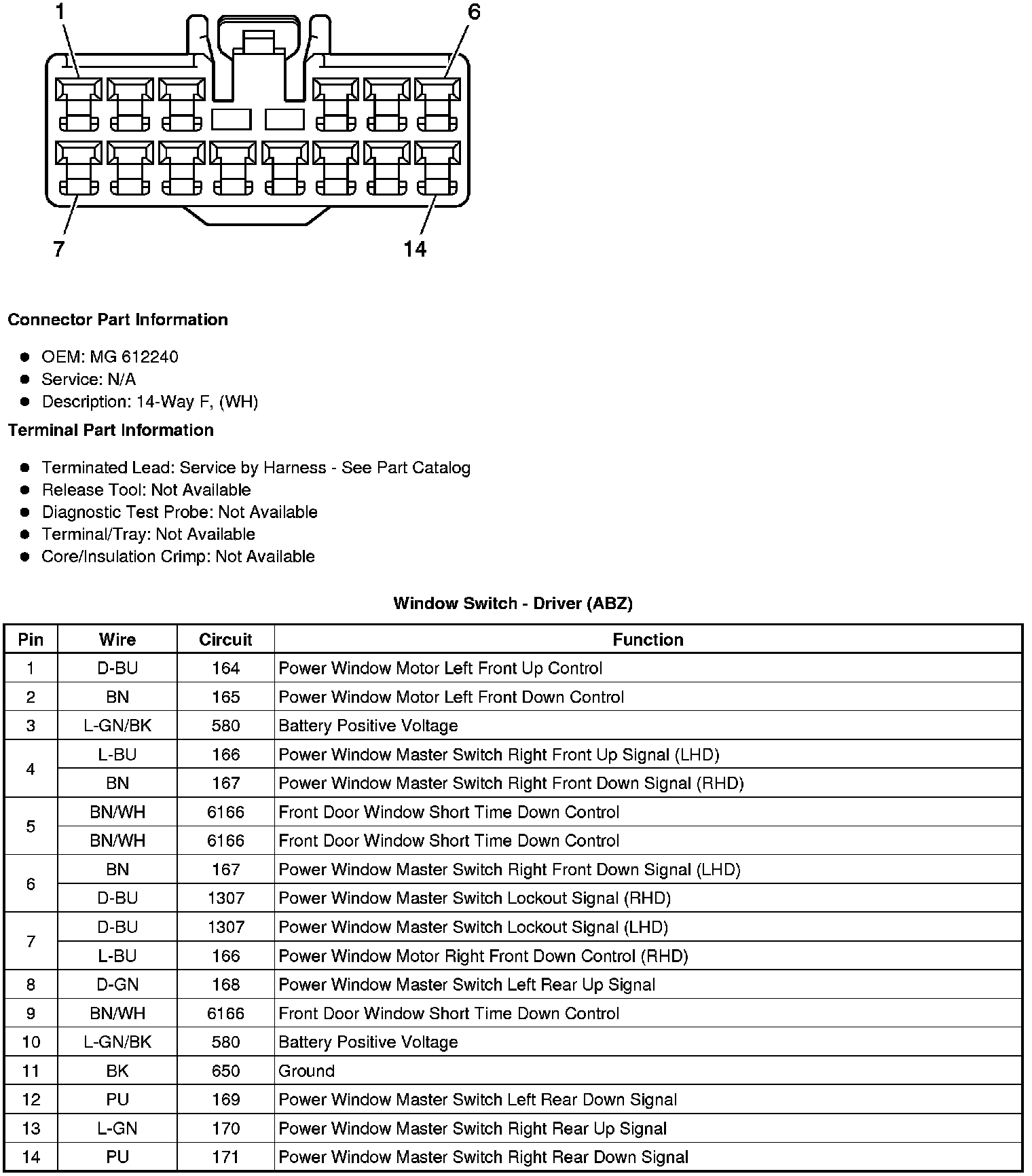

Window Switch - Driver (ABZ)
