Home
>>
Chevrolet
>>
2011
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Module
>>
Inflatable Restraint I/P Module (AK5)
Inflatable Restraint I/P Module (AK5)

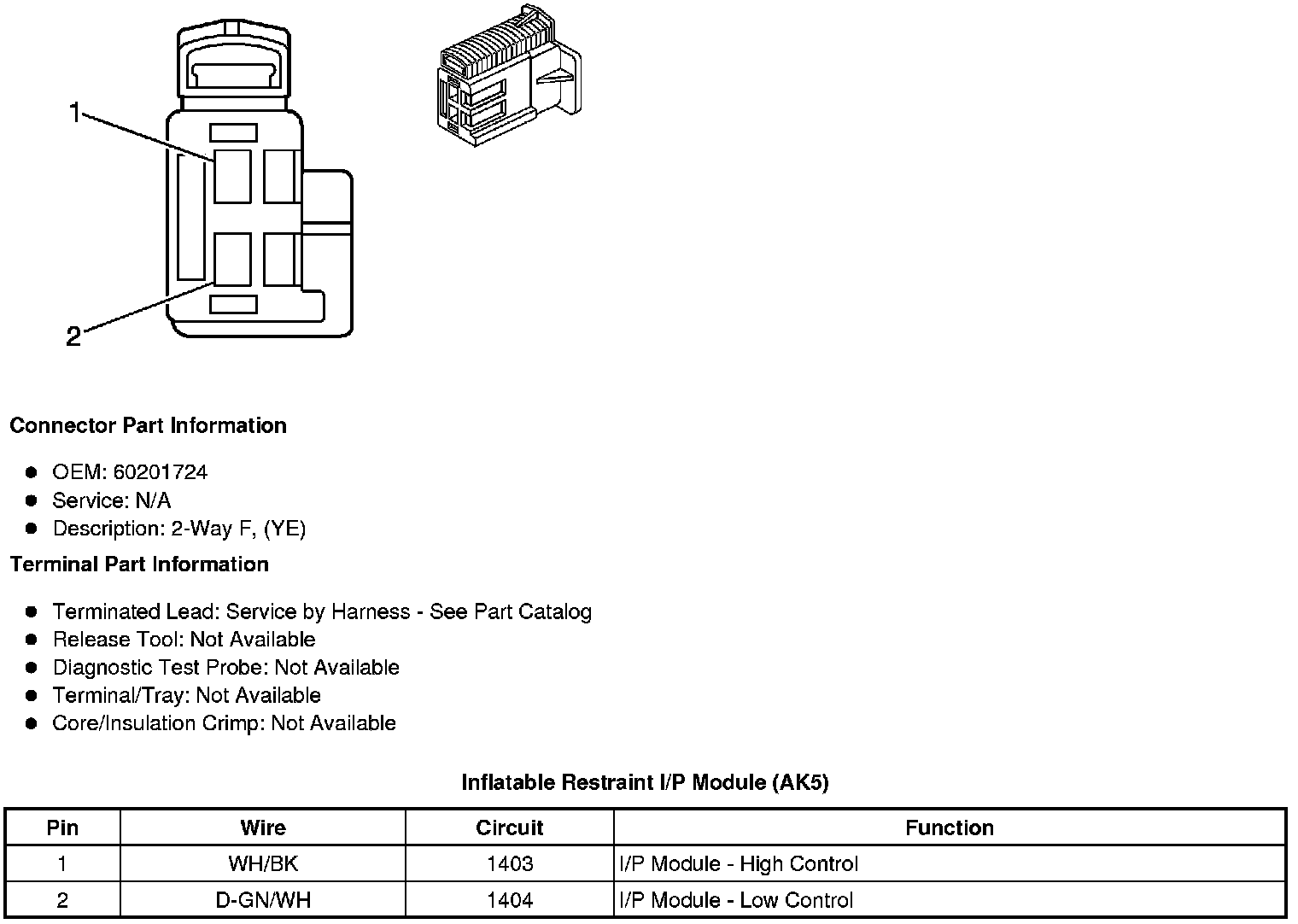

Component Connector End Views
Inflatable Restraint I/P Module (AK5)
