Inflatable Restraint Sensing and Diagnostic Module (SDM) (without WHB/AR1)

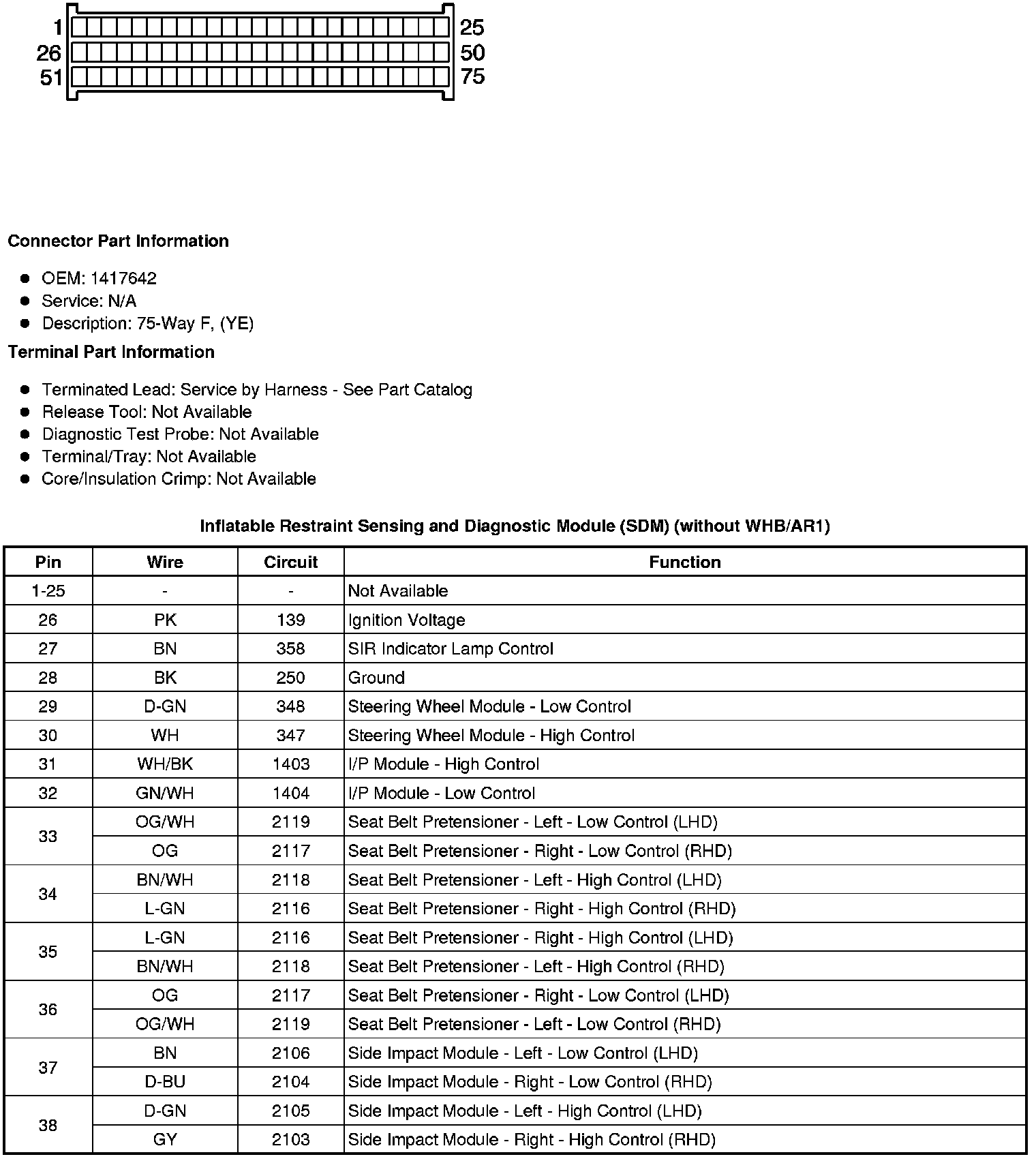

Component Connector End Views

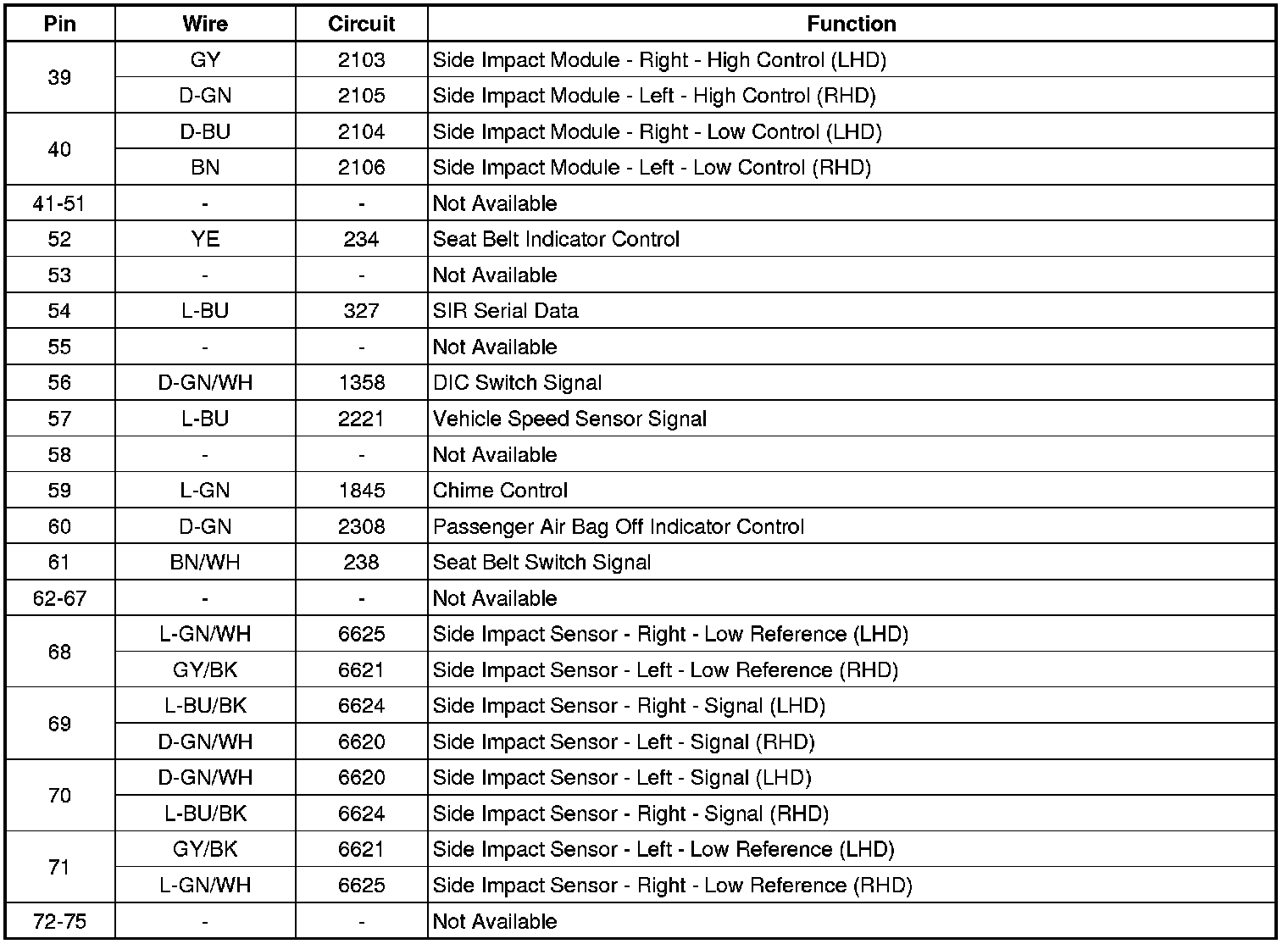

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without WHB/AR1)
