Front Suspension

Stabilizer Shaft Insulator Replacement

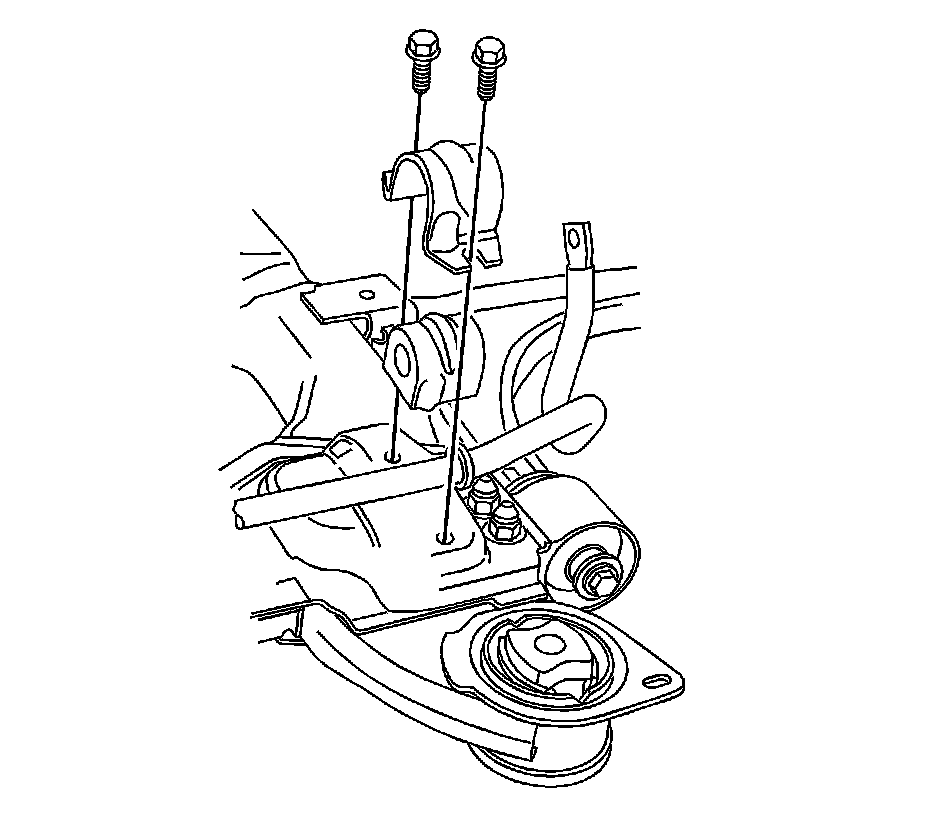

Removal Procedure





Important: The stabilizer shaft insulators and clamps can only be service when the stabilizer shaft is removed from the vehicle.


Remove the stabilizer shaft assembly. Refer to Stabilizer Shaft Replacement (Front Suspension).

Installation Procedure





Important: The installation of the insulators, clamps and bolts and torque specifications reside in the stabilizer shaft replacement procedure.


Install the stabilizer shaft assembly. Refer to Stabilizer Shaft Replacement (Front Suspension).
