Chevrolet
>>
2010
>>
Impala V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

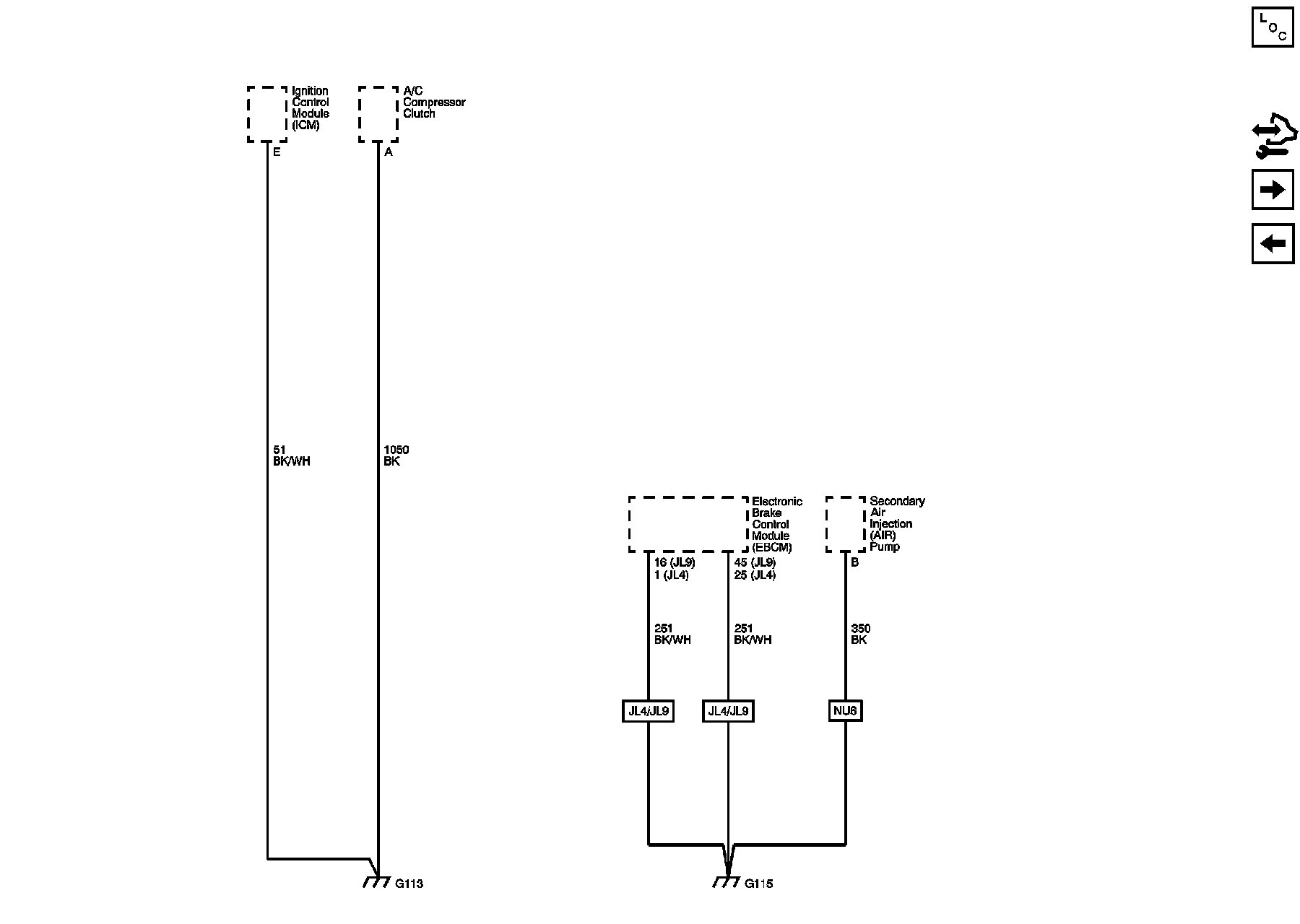

Ground Distribution Schematics
>>
G113
G113
Ground Distribution Schematics
G113
