Home >> Chevrolet >> 2010 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Start Relay >> Locations

Neutral Start Relay: Locations

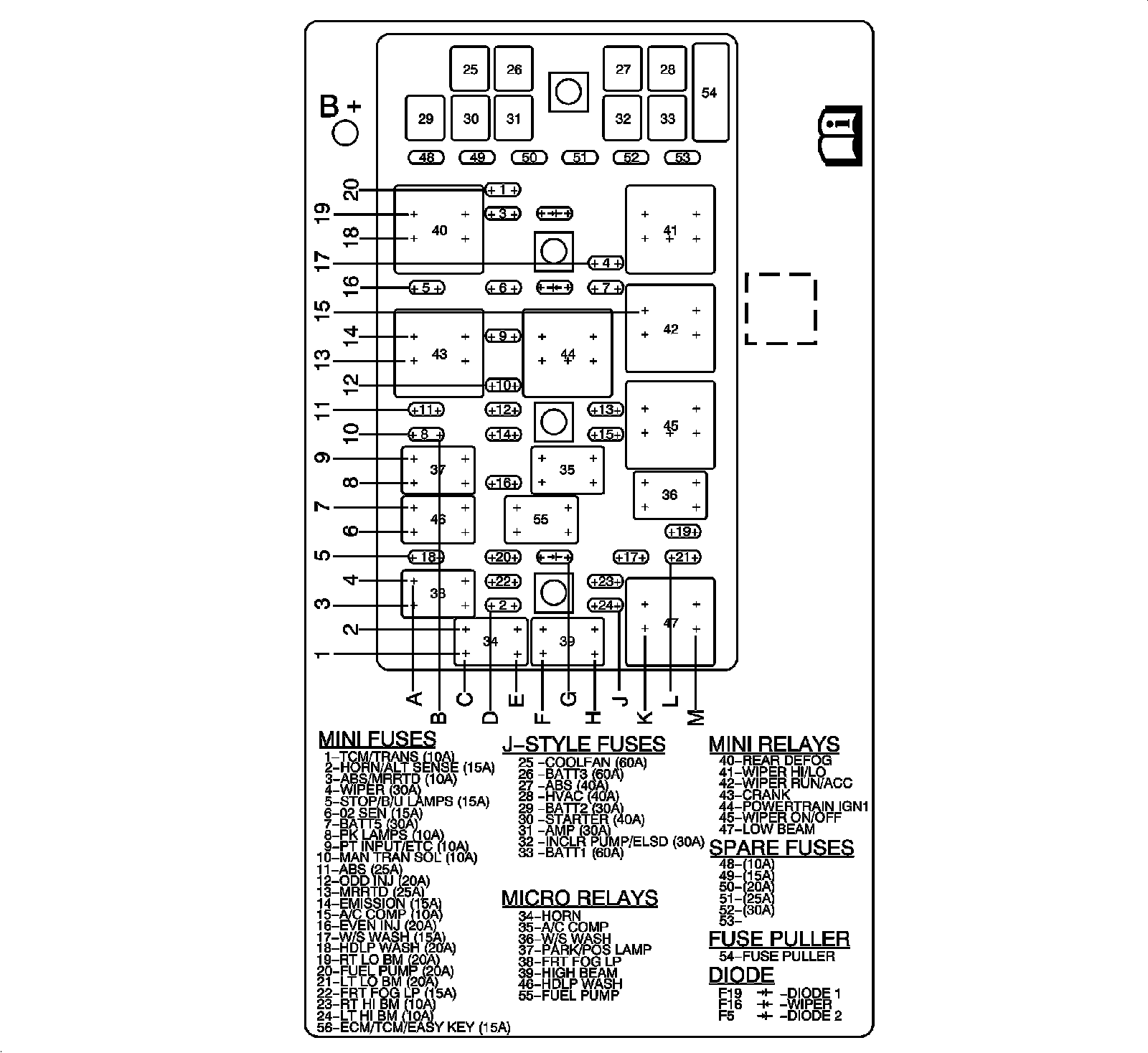

Electrical Center Identification Views

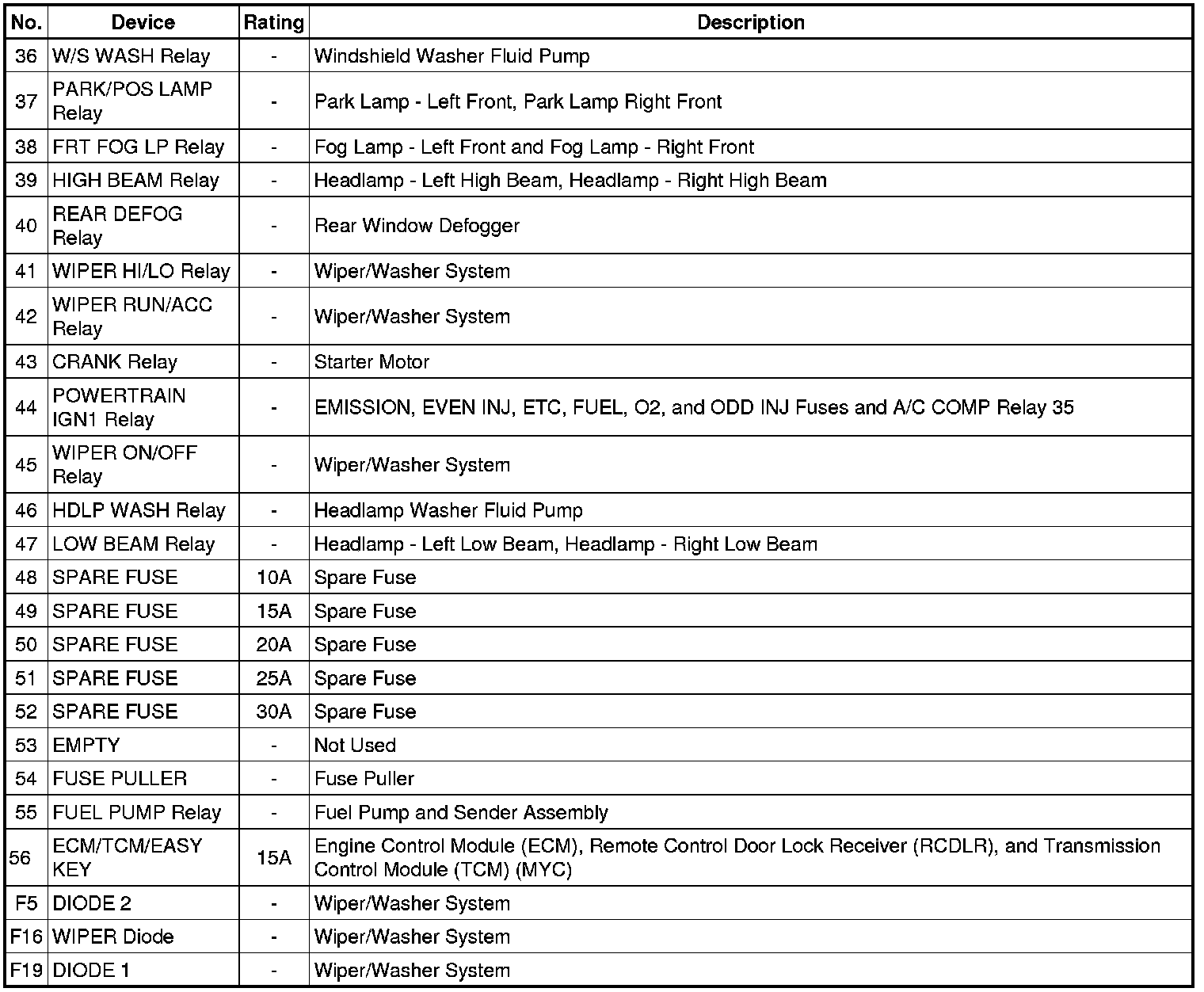

Fuse Block - Underhood Label
