Chevrolet
>>
2010
>>
Corvette V8-6.2L SC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Starting and Charging

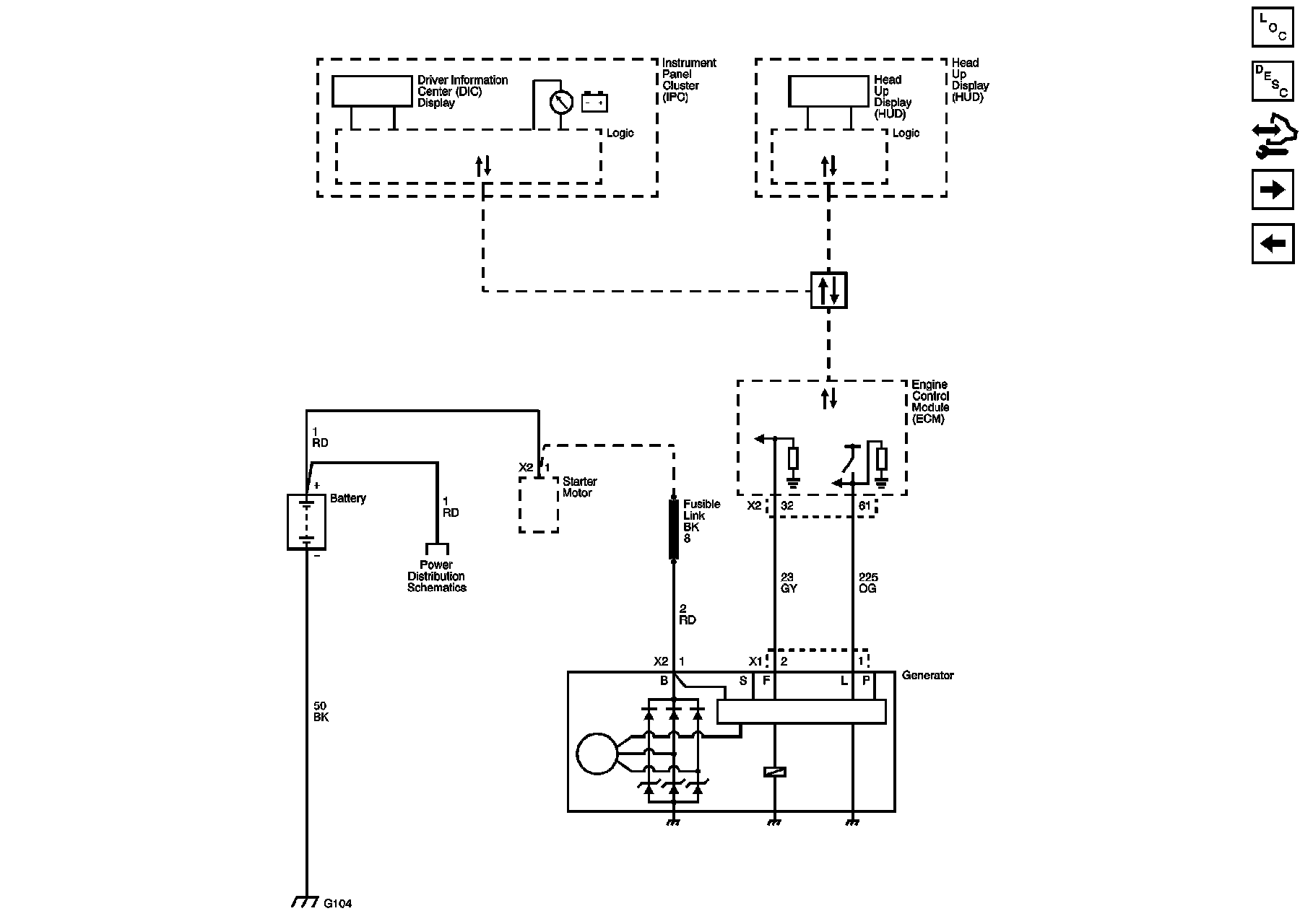

Schematics
Starting
Charging (LS3/LS7)
Charging (LS9)
