Power Steering Fluid Reservoir Inlet Hose Replacement

Power Steering Fluid Reservoir Inlet Hose Replacement (LS9)

Removal Procedure

1. Place drain pans under the vehicle as needed.
2. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.




3. Compress the power steering fluid reservoir inlet hose clamp (1).
4. Disconnect the power steering fluid reservoir inlet hose (2) from the remote power steering fluid reservoir.

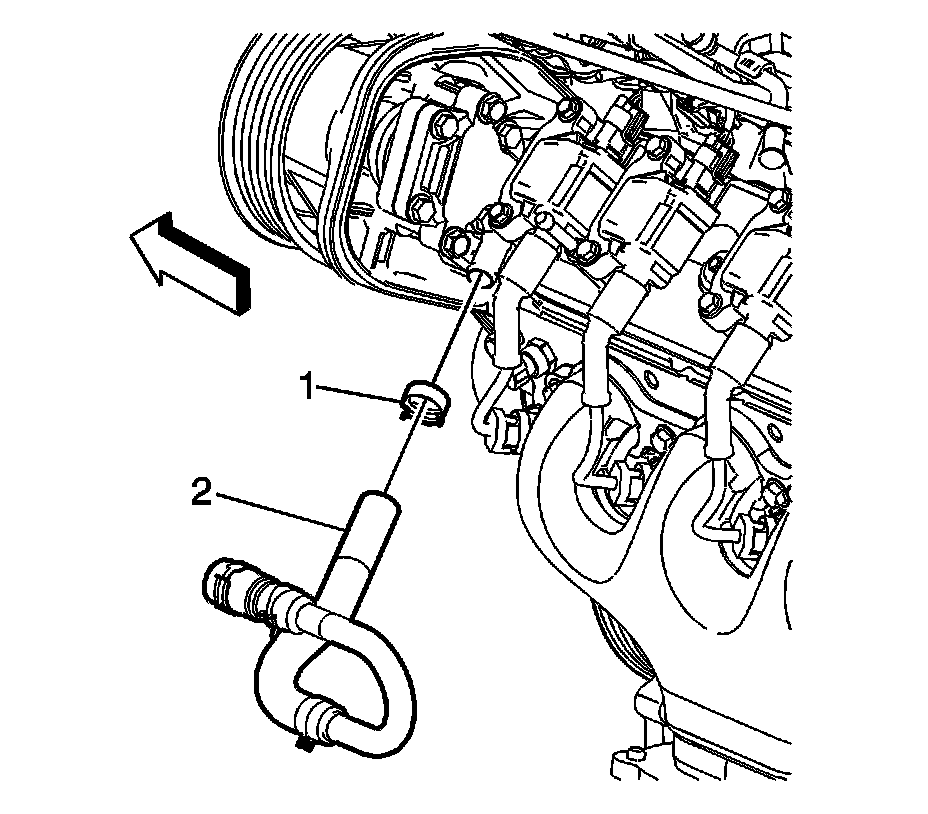

5. Compress the power steering fluid reservoir inlet hose clamp (1).
6. Disconnect the power steering fluid reservoir inlet hose (2) from the power steering pump.
7. Remove the power steering fluid reservoir inlet hose from the vehicle.

Installation Procedure




1. Position the power steering fluid reservoir inlet hose (2) to the vehicle.
2. Compress the power steering fluid reservoir inlet hose clamp (1).
3. Connect the power steering fluid reservoir inlet hose (2) to the power steering pump and release the clamp.




4. Compress the power steering fluid reservoir inlet hose clamp (1).
5. Connect the power steering fluid reservoir inlet hose (2) to the remote power steering fluid reservoir and release the clamp.
6. Clean any excess power steering fluid from the vehicle and remove the drain pans.
7. Fill and bleed the power steering system. Refer to Power Steering System Bleeding (Service and Repair).
