Engine Mount - Left Side




Engine Mount Replacement - Left Side

Removal Procedure




1. Remove the front suspension crossmember. Refer to Front Suspension Crossmember Replacement (Without Z06) (Front Suspension Crossmember Replacement) Front Suspension Crossmember Replacement (With Z06 or ZR1) (Front Suspension Crossmember Replacement).

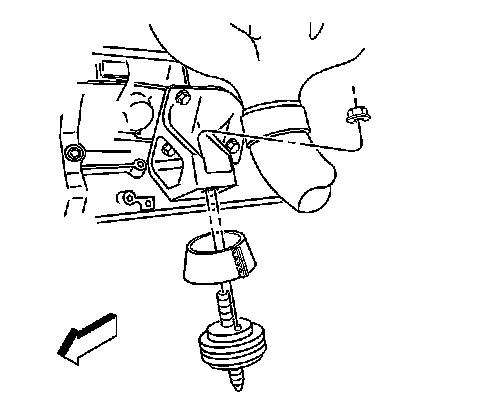

2. Remove the engine mount-to-engine mount bracket nut.
3. Remove the engine mount.
4. Remove the engine mount heat shield from the engine mount, if necessary.

Installation Procedure




1. Install the engine mount heat shield to the engine mount, if necessary.
2. Install the engine mount.

Notice: Refer to Fastener Caution (Fastener Caution).

3. Install the engine mount-to-engine mount bracket nut.

* Except LS9/ZR1, tighten the nut to 65 Nm (48 lb ft).
* For LS9/ZR1, tighten the nut to 100 Nm (74 lb ft).

4. Install the front suspension crossmember. Refer to Front Suspension Crossmember Replacement (Without Z06) (Front Suspension Crossmember Replacement) Front Suspension Crossmember Replacement (With Z06 or ZR1) (Front Suspension Crossmember Replacement).
