Home
>>
Chevrolet
>>
2010
>>
Corvette V8-6.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Buckle Switch
Seat Belt Buckle Switch
Component Connector End Views

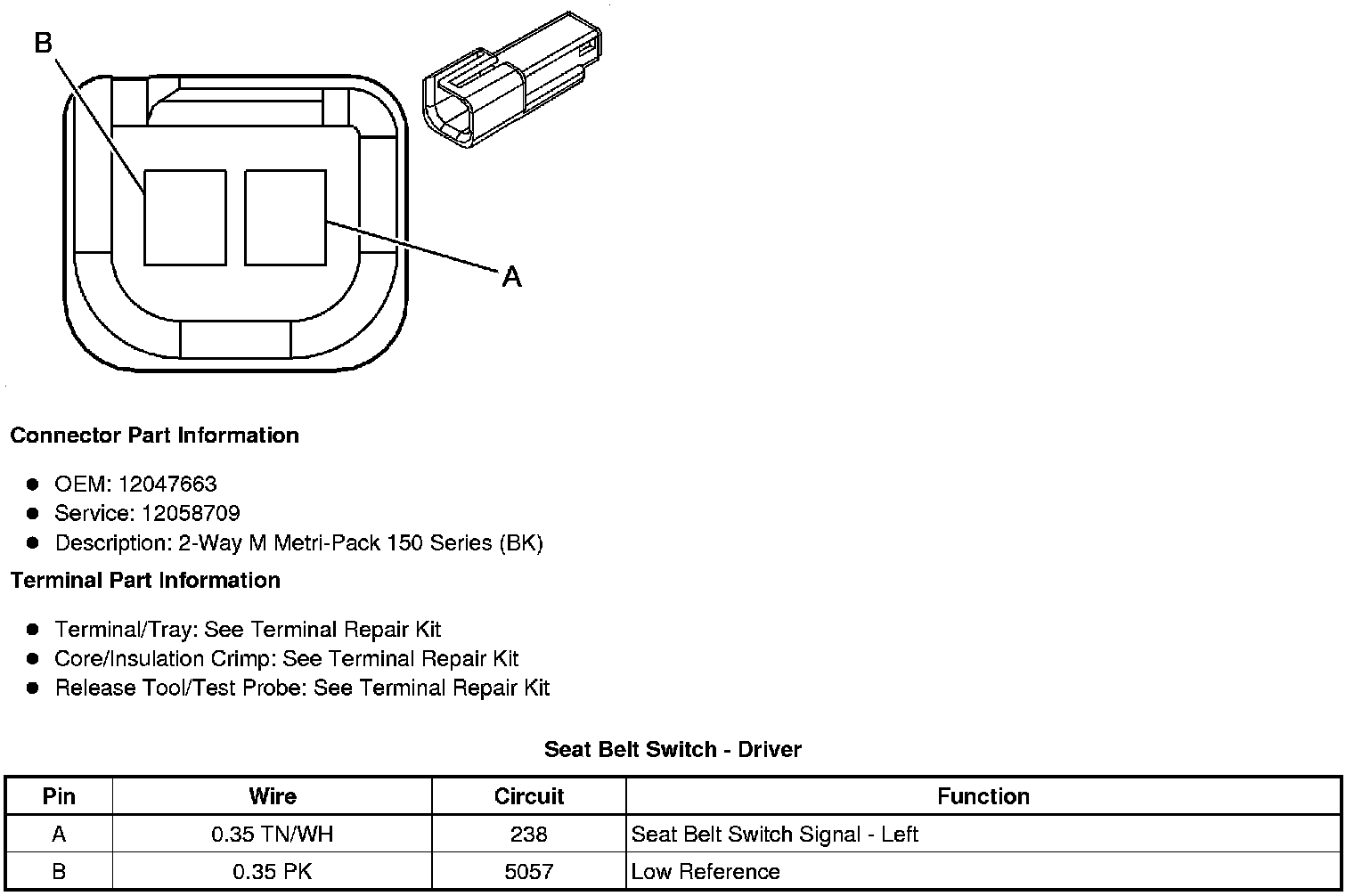

Seat Belt Switch - Driver

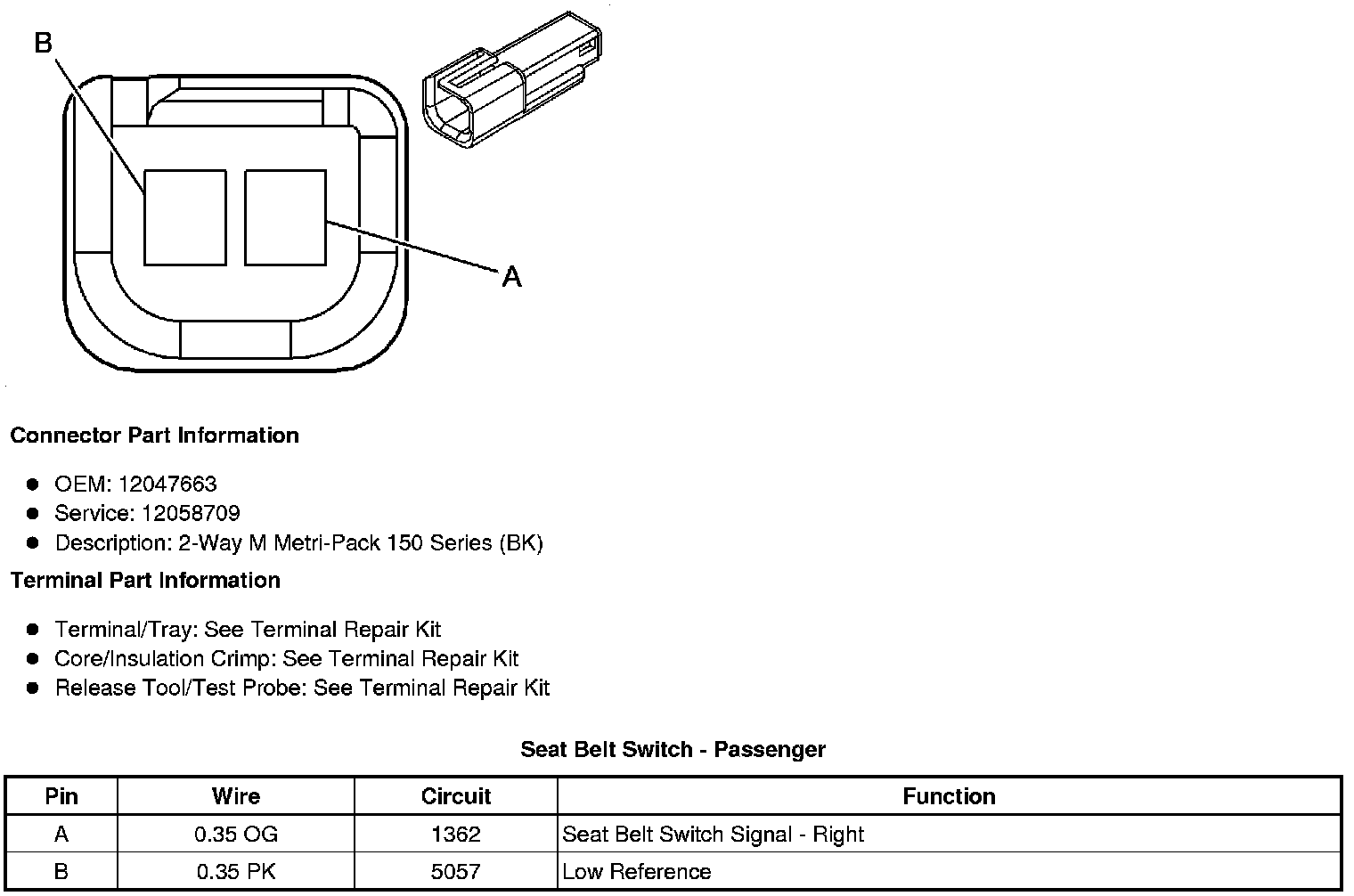

Seat Belt Switch - Passenger
