Rear Brake Caliper Cooling Air Scoop Replacement

Rear Brake Caliper Cooling Air Scoop Replacement

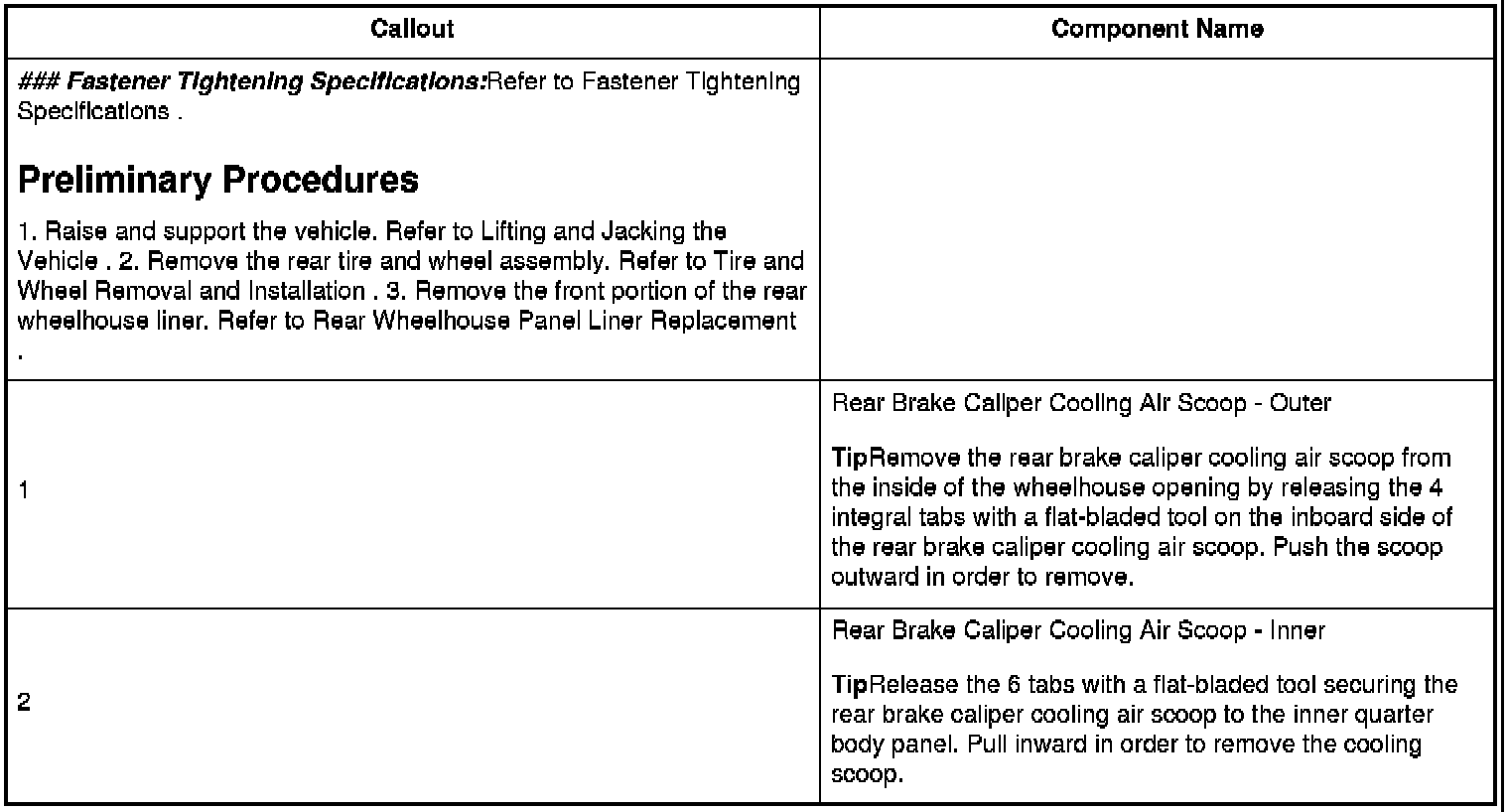

Fastener Tightening Specifications:
###

Preliminary Procedures

TipRemove the rear brake caliper cooling air scoop from the inside of the wheelhouse opening by releasing the 4 integral tabs with a flat-bladed tool on the inboard side of the rear brake caliper cooling air scoop. Push the scoop outward in order to remove.

TipRelease the 6 tabs with a flat-bladed tool securing the rear brake caliper cooling air scoop to the inner quarter body panel. Pull inward in order to remove the cooling scoop.
