X497
X497

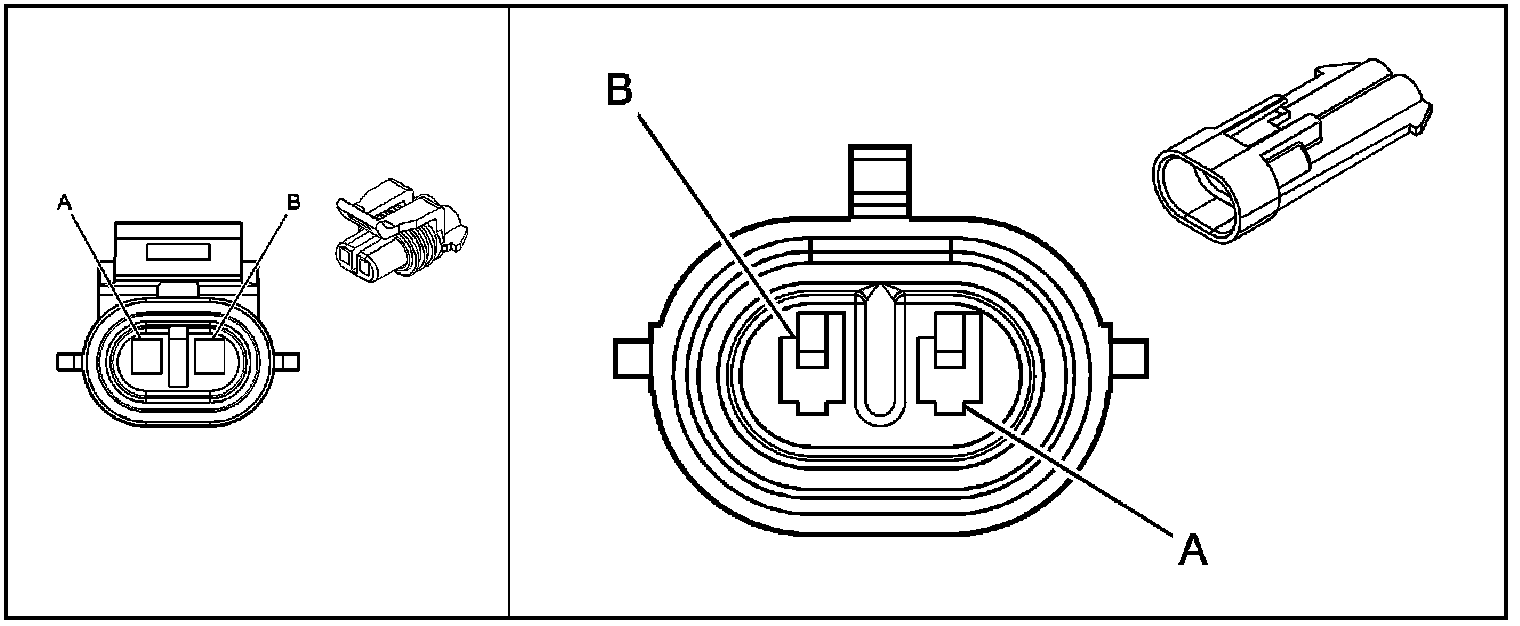

Inline Harness Connector End Views

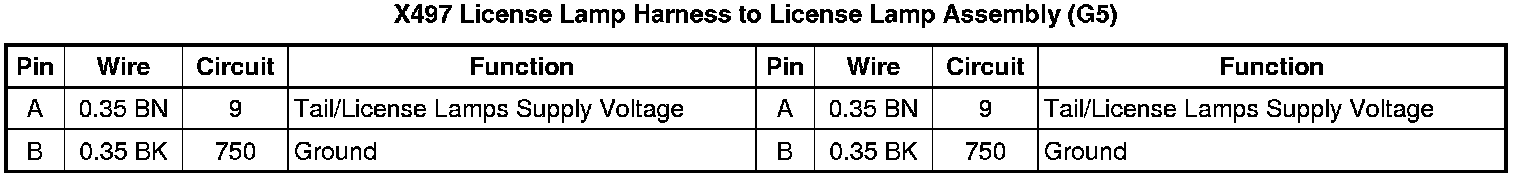

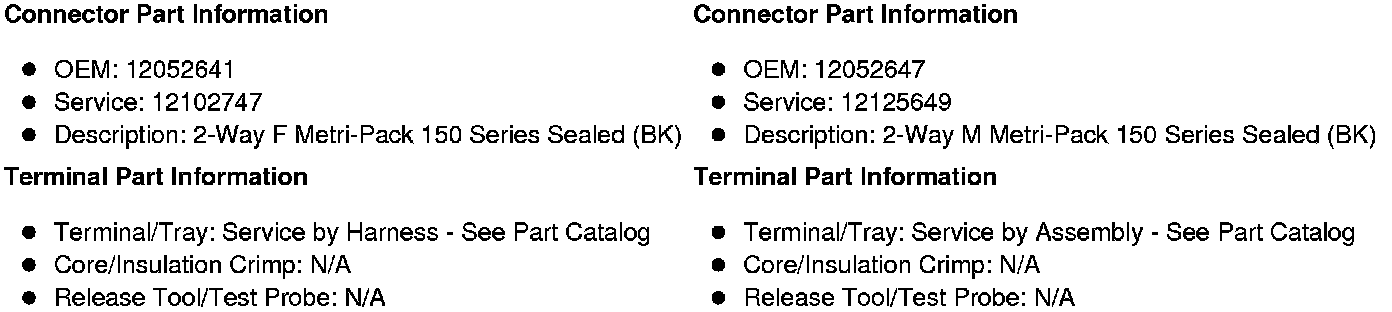

X497 License Lamp Harness to License Lamp Assembly (G5)
