Turbo Boost Gauge
Turbo Boost Gauge

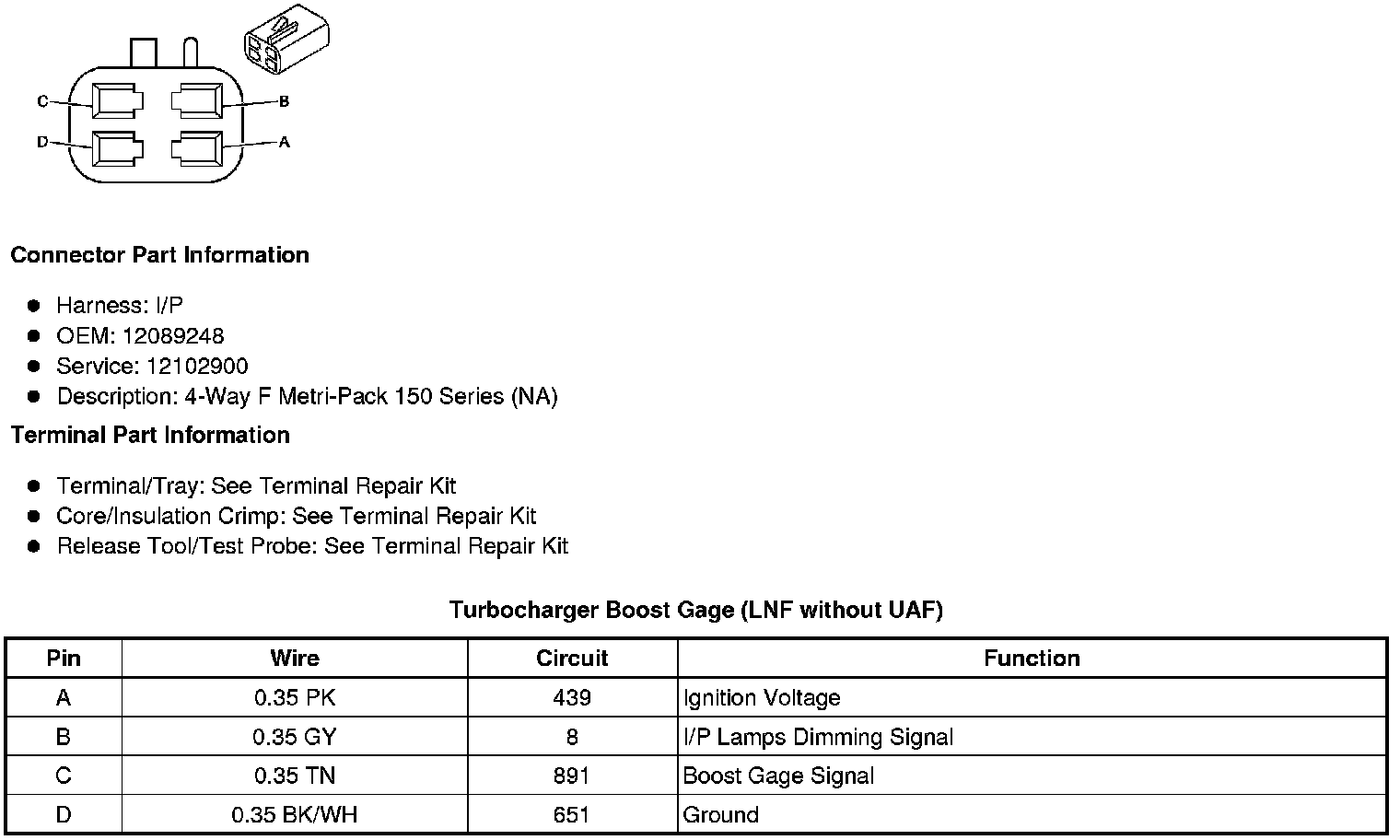

Component Connector End Views
Turbocharger Boost Gage (LNF without UAF)
