4-5-6 Clutch Overhaul




4-5-6 Clutch Overhaul

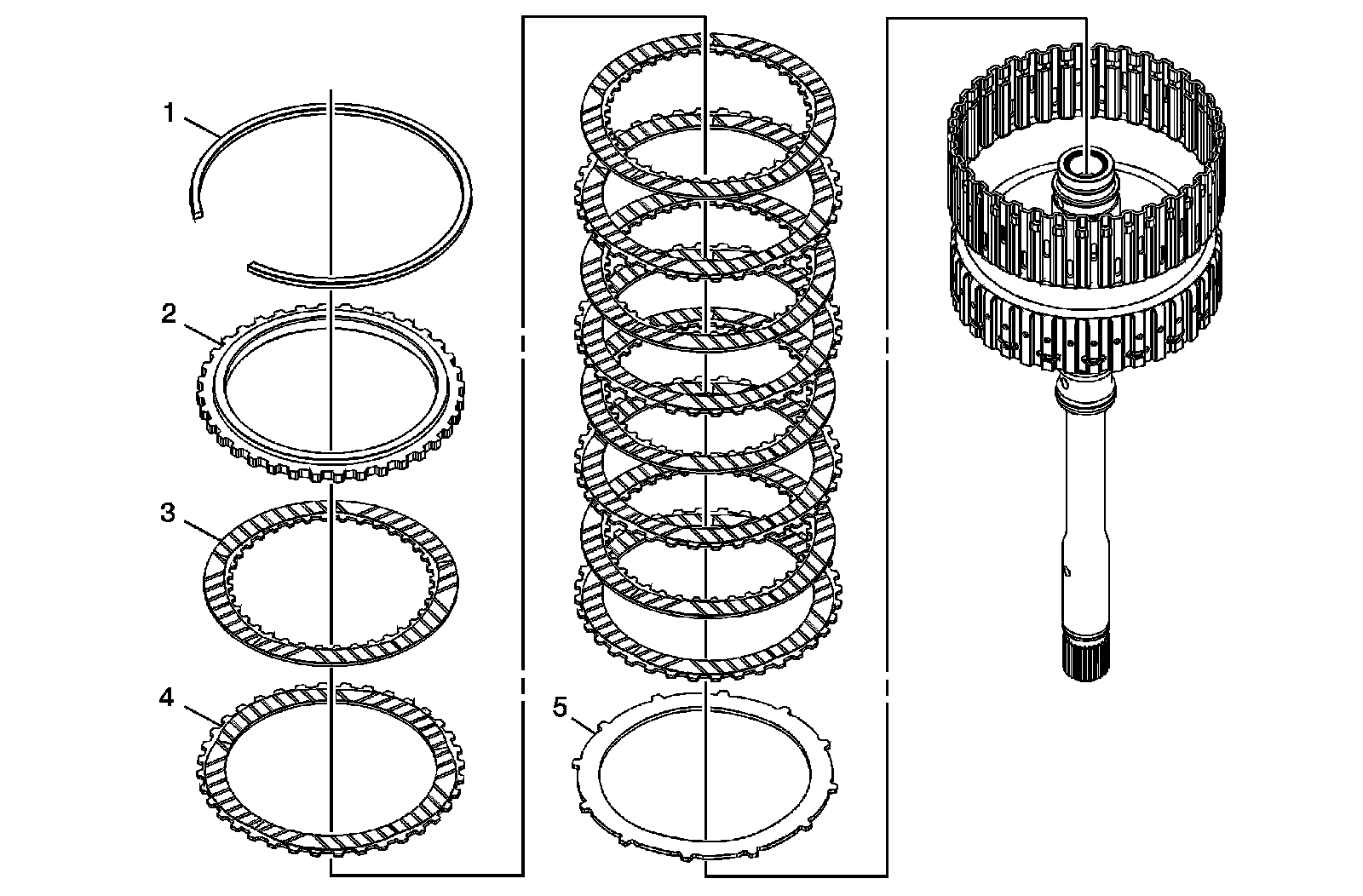

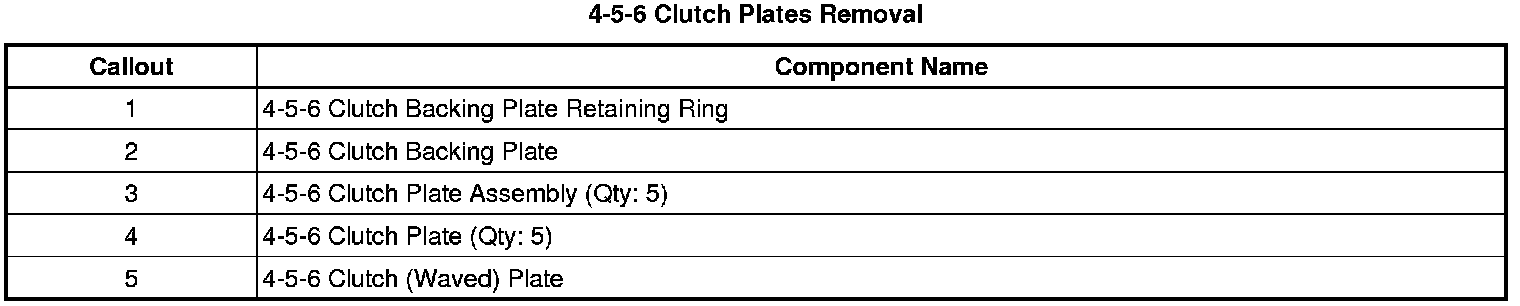

4-5-6 Clutch Plates Removal

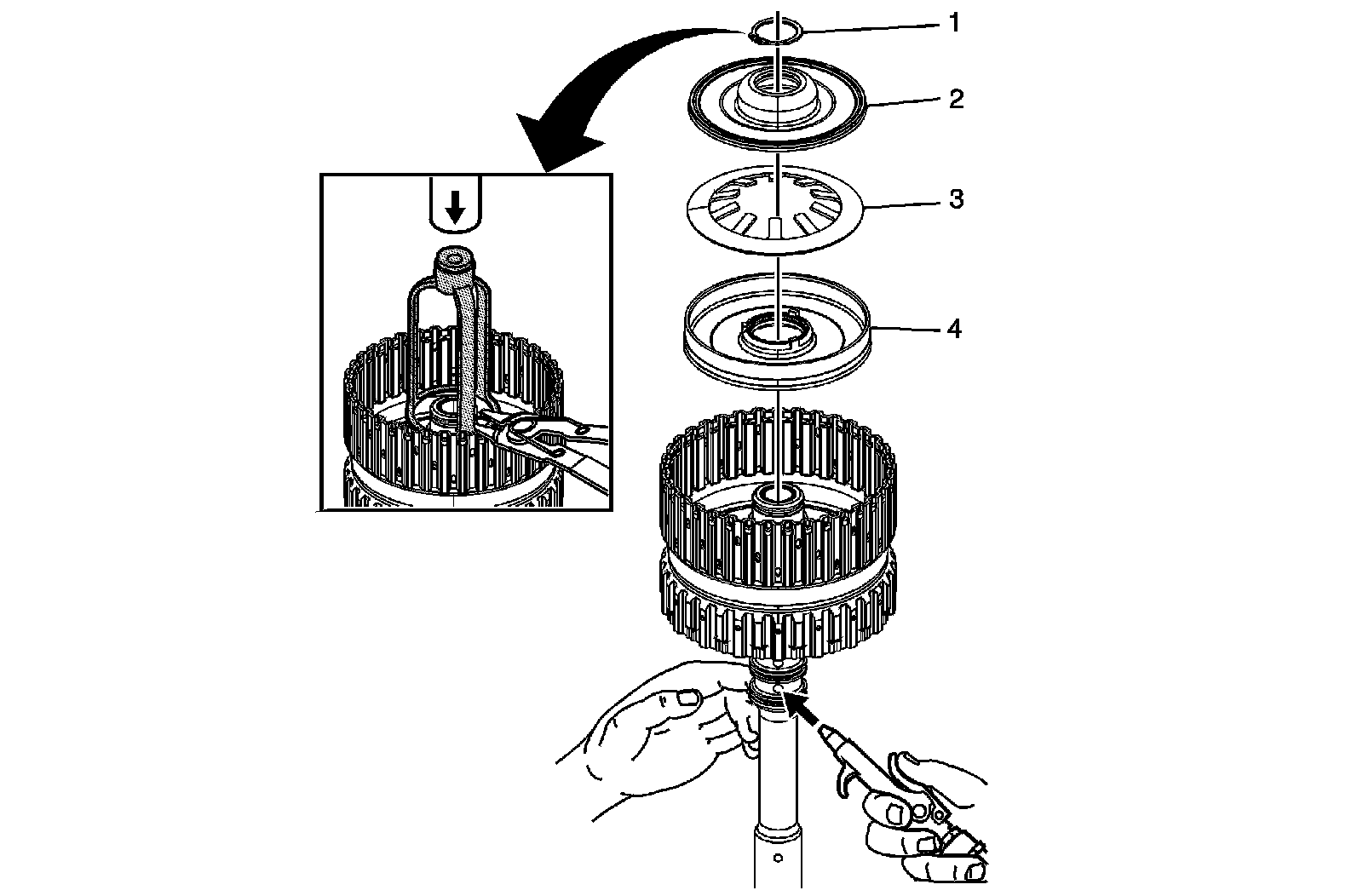

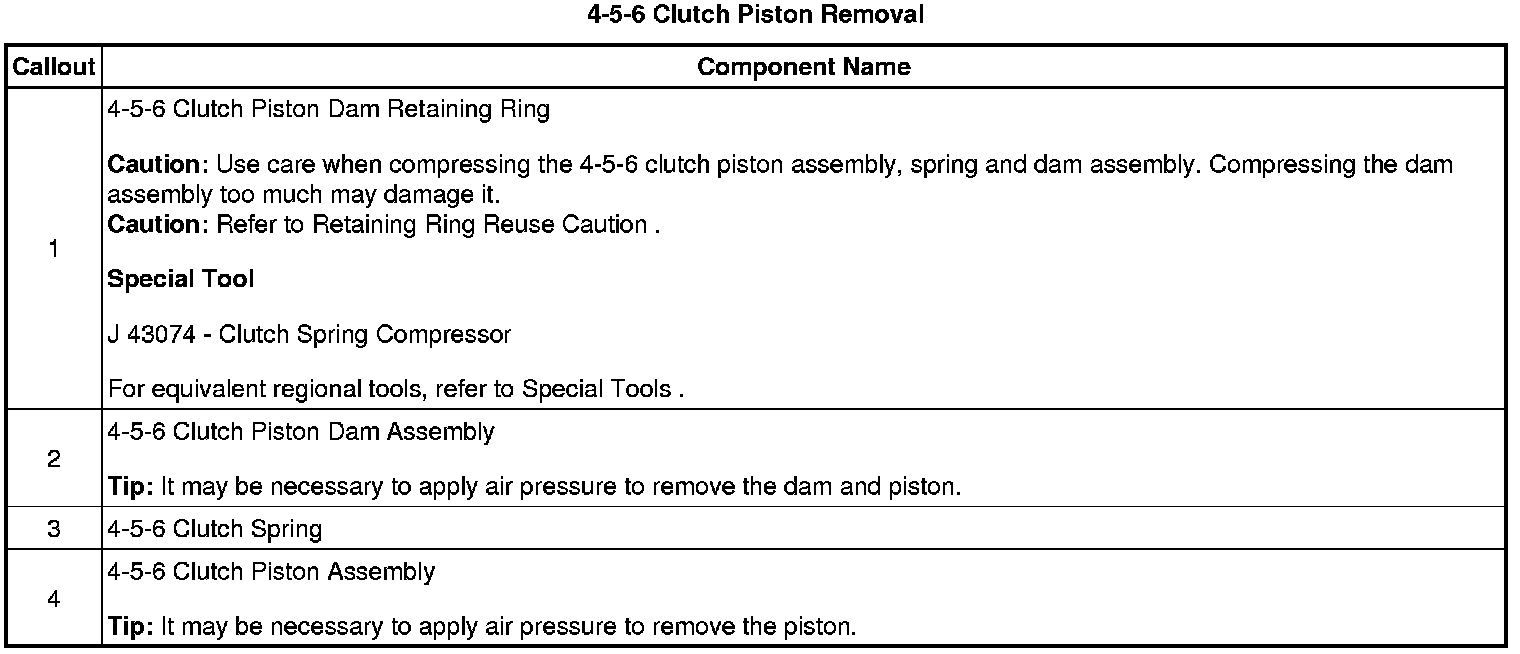

4-5-6 Clutch Piston Removal

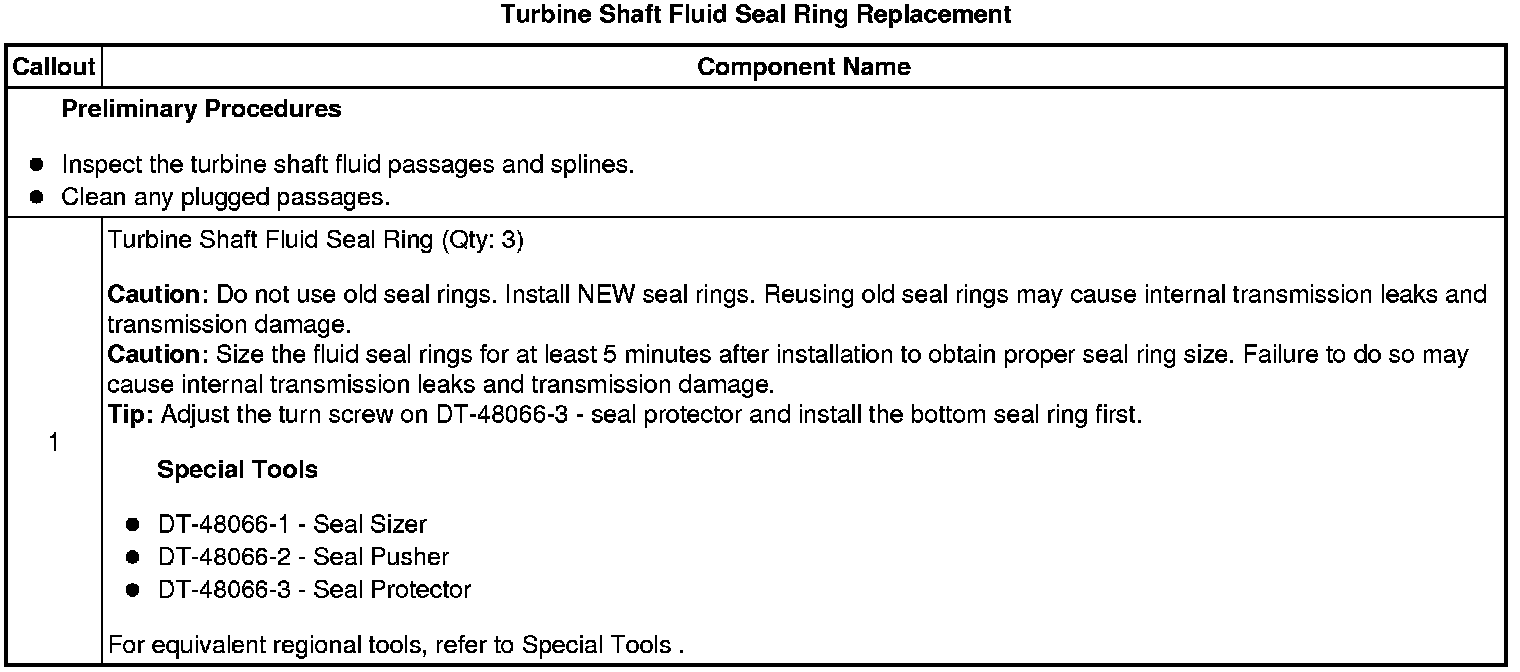

Turbine Shaft Fluid Seal Ring Replacement









4-5-6 Clutch Piston Installation

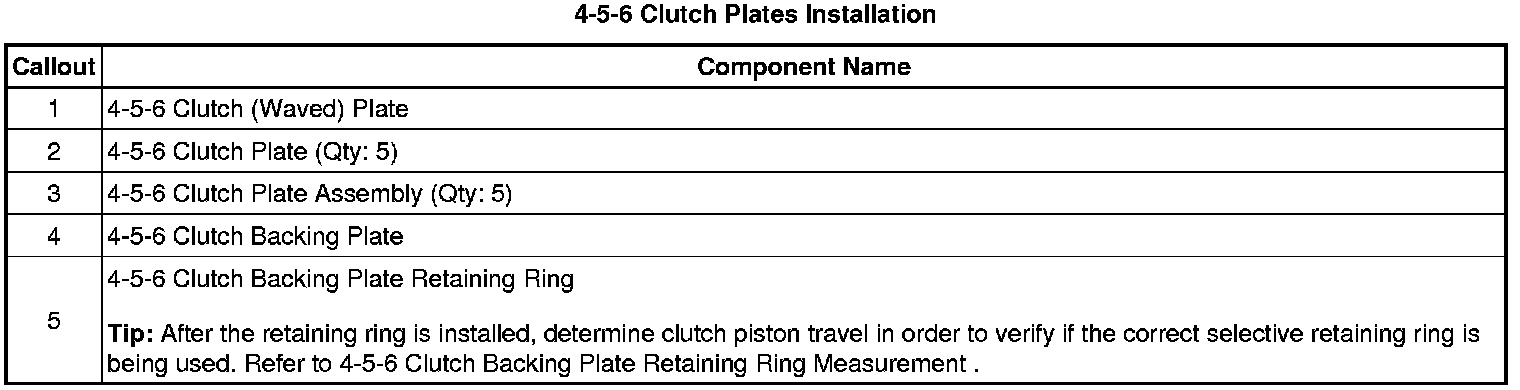

4-5-6 Clutch Plates Installation
