Home
>>
Chevrolet
>>
2010
>>
Camaro V8-6.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

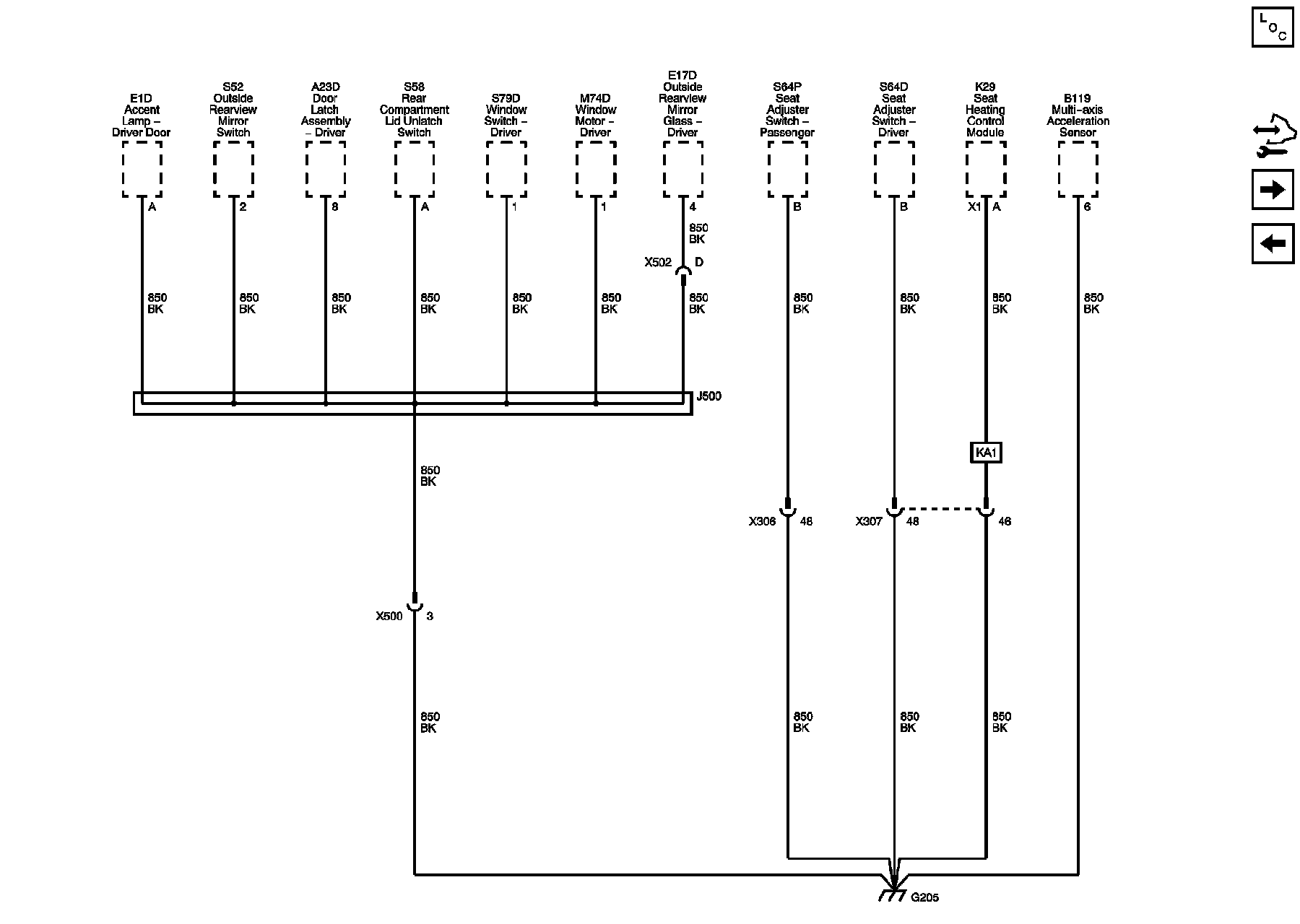

Ground Distribution Schematics
>>
G205
G205
Ground Distribution Schematics
G205
