Transmission Fluid Cooler Pipe Seal Replacement

Transmission Fluid Cooler Pipe Seal Replacement

Special Tools

- DT-45201 Cooler Line Seal Remover
- DT-47770 Seal Installer
- For equivalent regional tools, refer to Special Tools, Tools and Equipment

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle, Service and Repair

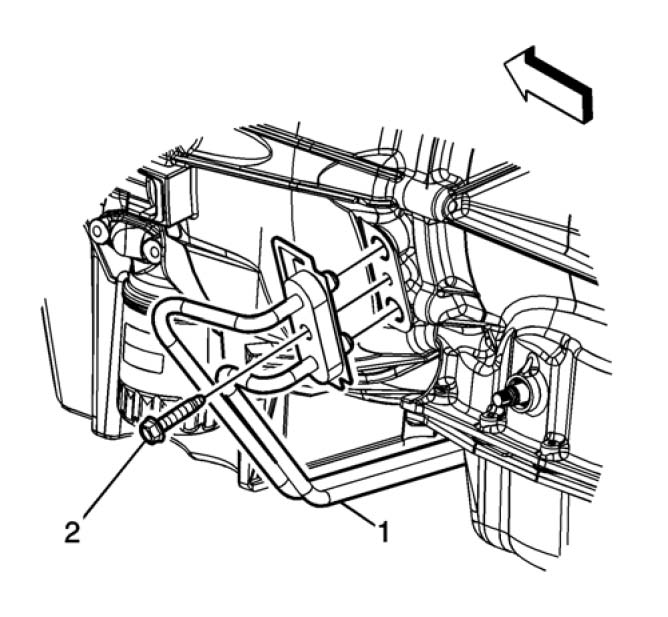

2. Remove the transmission fluid cooler pipe bolt (2) from the transmission.
3. Remove the transmission fluid cooler pipes from the transmission.

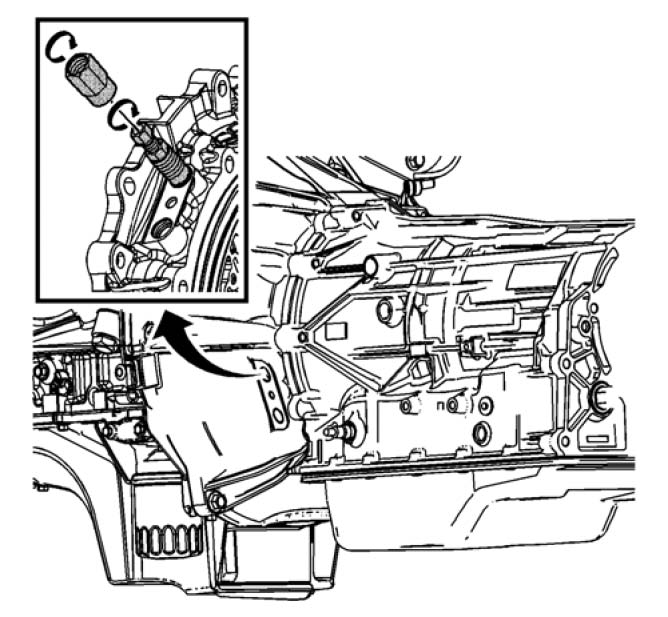

4. Using DT-45201 remover , remove the transmission fluid cooler pipe seals from the transmission.

Installation Procedure

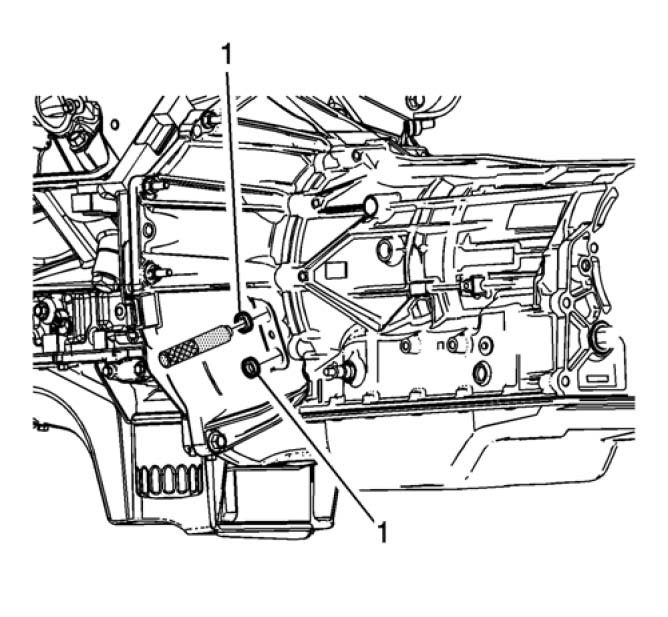

1. Using DT-47770 installer, , install the transmission fluid cooler pipe seals (1) in the transmission.






2. Install transmission fluid cooler pipes (1) the to the transmission.

Caution: Refer to Fastener Caution, Fastener Caution

3. Install the transmission fluid cooler pipe bolt (2) to the transmission and tighten to 22 Nm (16 lb ft).
4. Lower the vehicle.
5. Check the transmission fluid level.
