Chevrolet
>>
2010
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

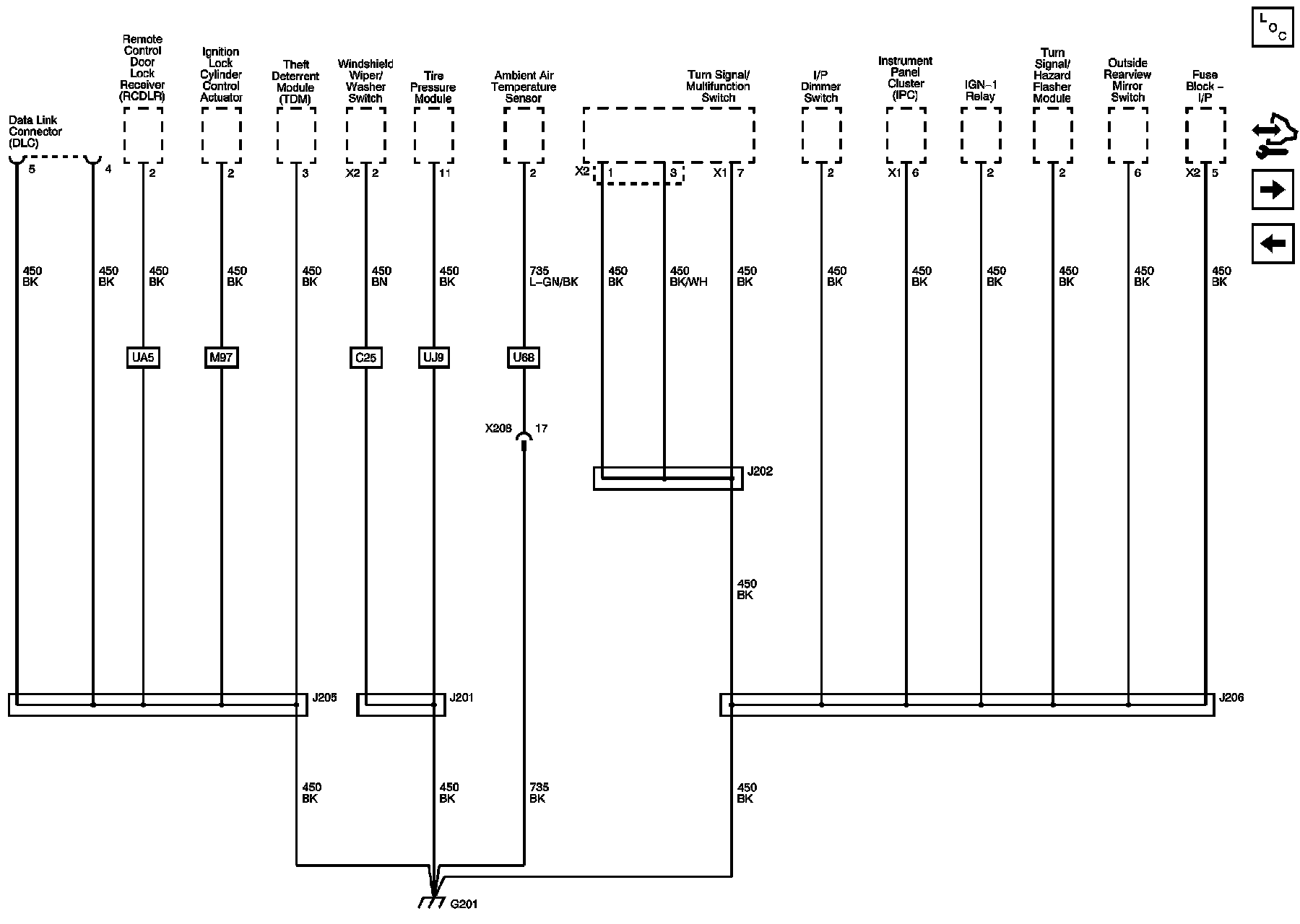

Ground Distribution Schematics (with WHB)
>>
G201
G201
Ground Distribution Schematics (with WHB)
G201
