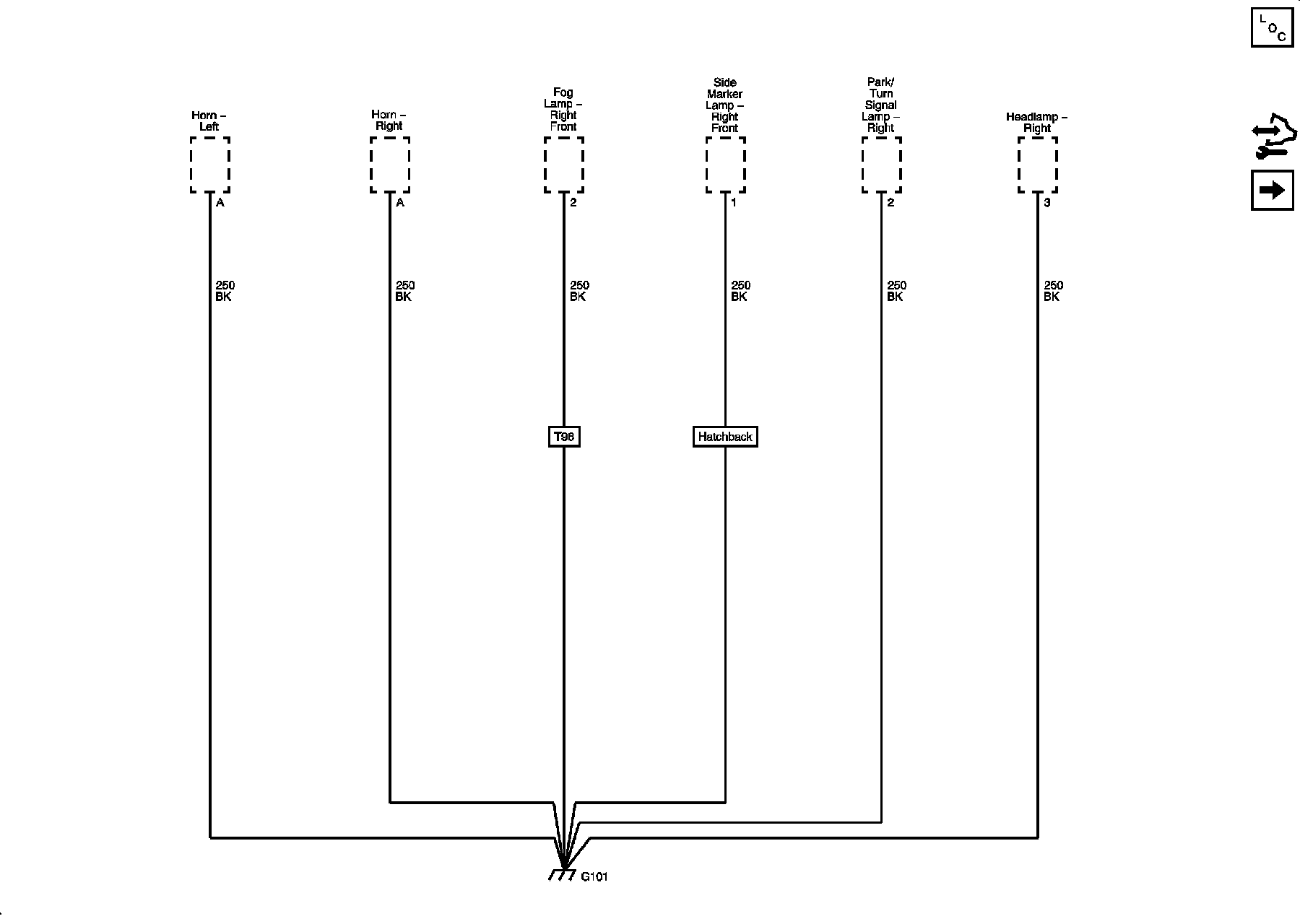

Ground Distribution Schematics (with WHB)
>>
G101
G101
Ground Distribution Schematics (with WHB)
G101
