Home
>>
Chevrolet
>>
2010
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
>>
Y4M - Manual Transmission
Y4M - Manual Transmission

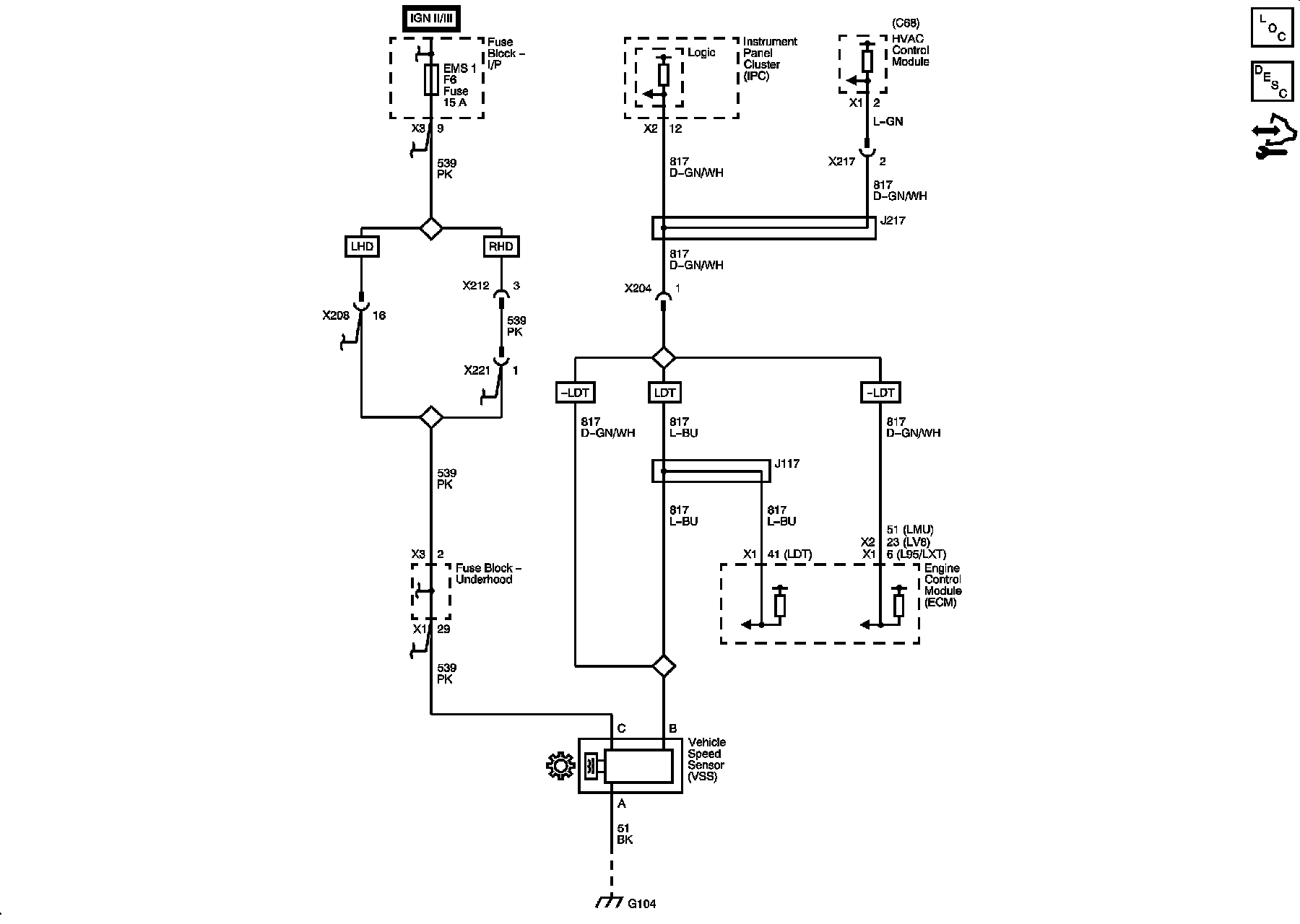

Manual Transmission Schematics (Y4M)
