Blower Motor Switch (Without C68)
Blower Motor Switch (Without C68)
Component Connector End Views

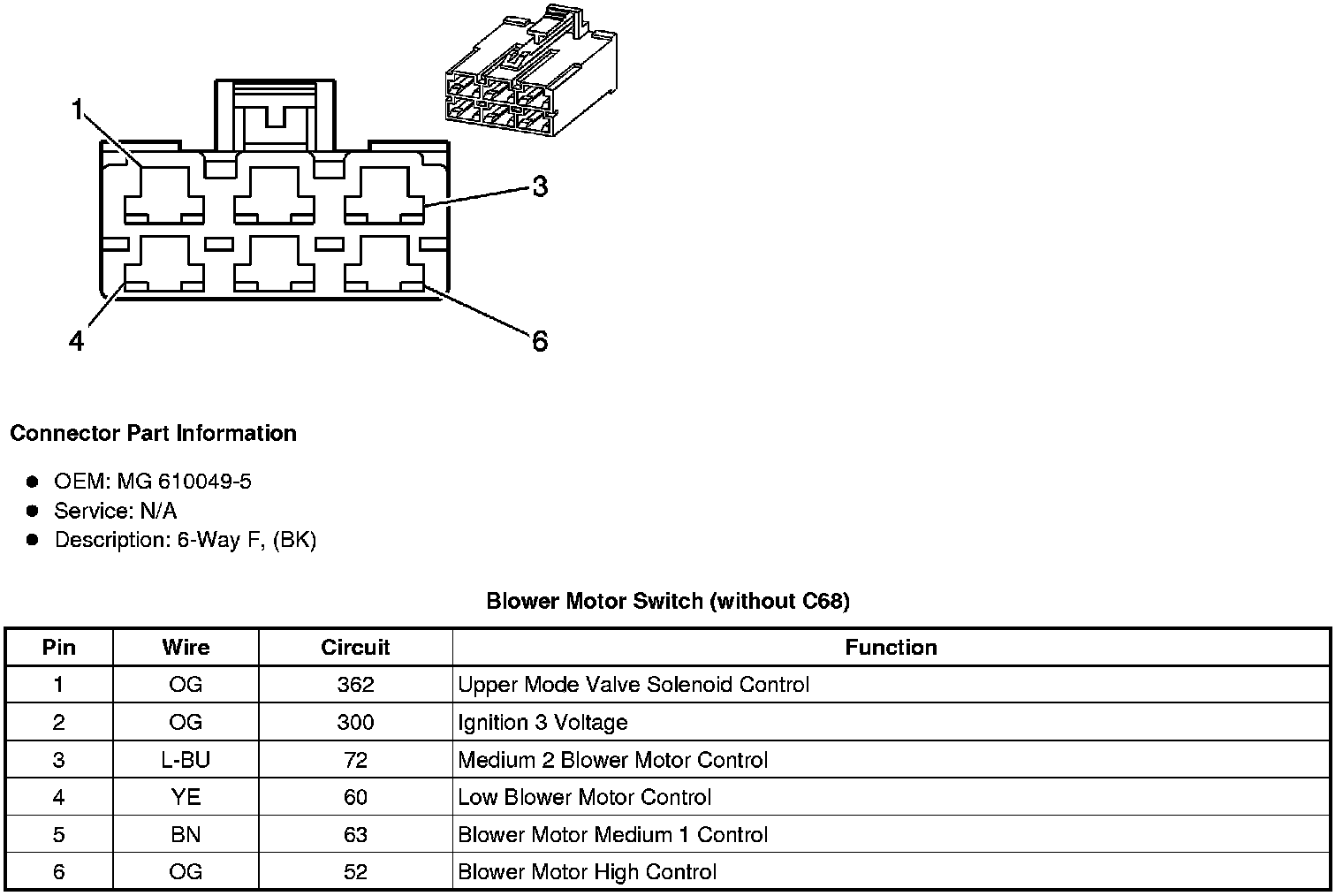

Blower Motor Switch
(without C68)
