Antenna, Radio

Component Connector End Views

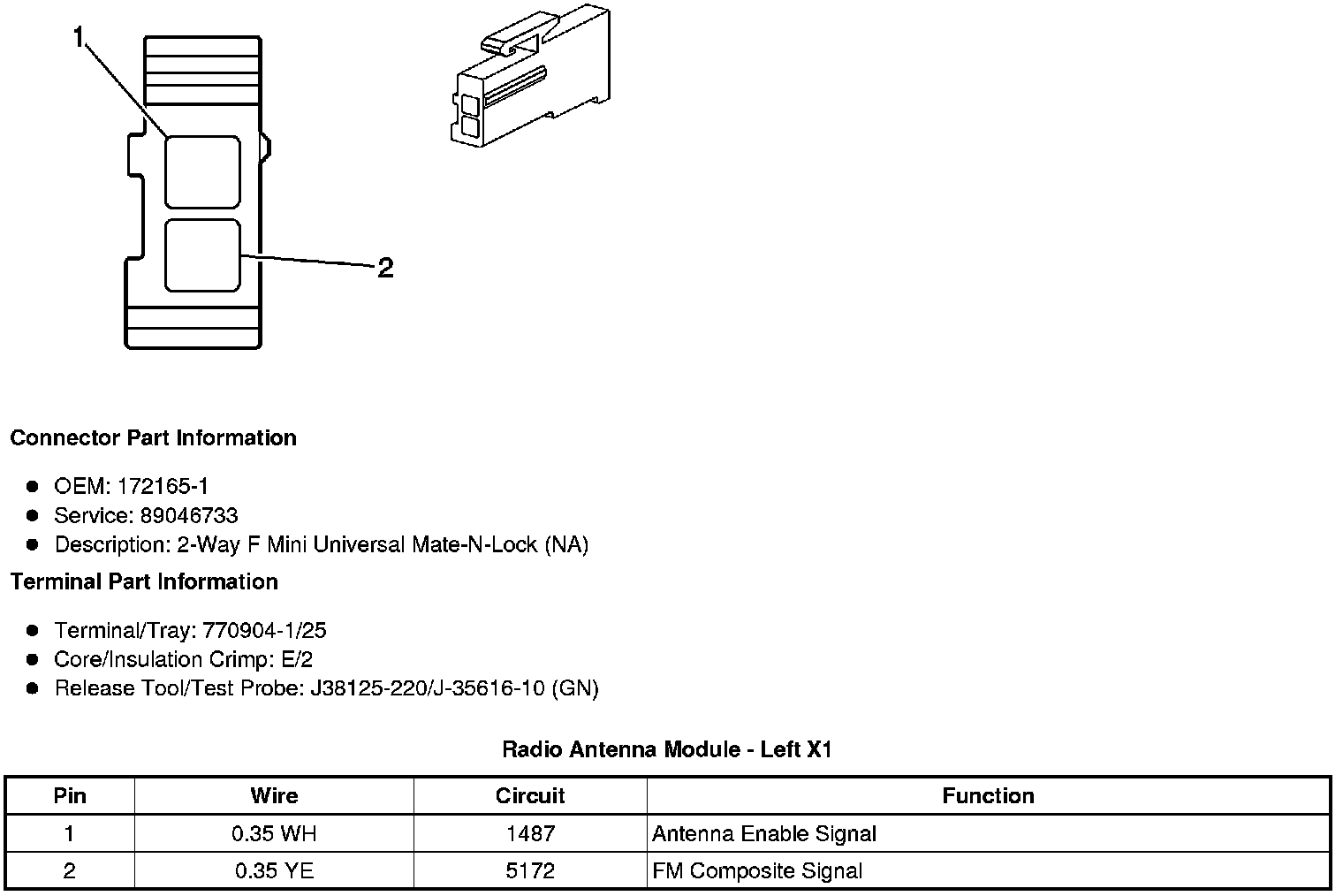

Radio Antenna Module - Left X1

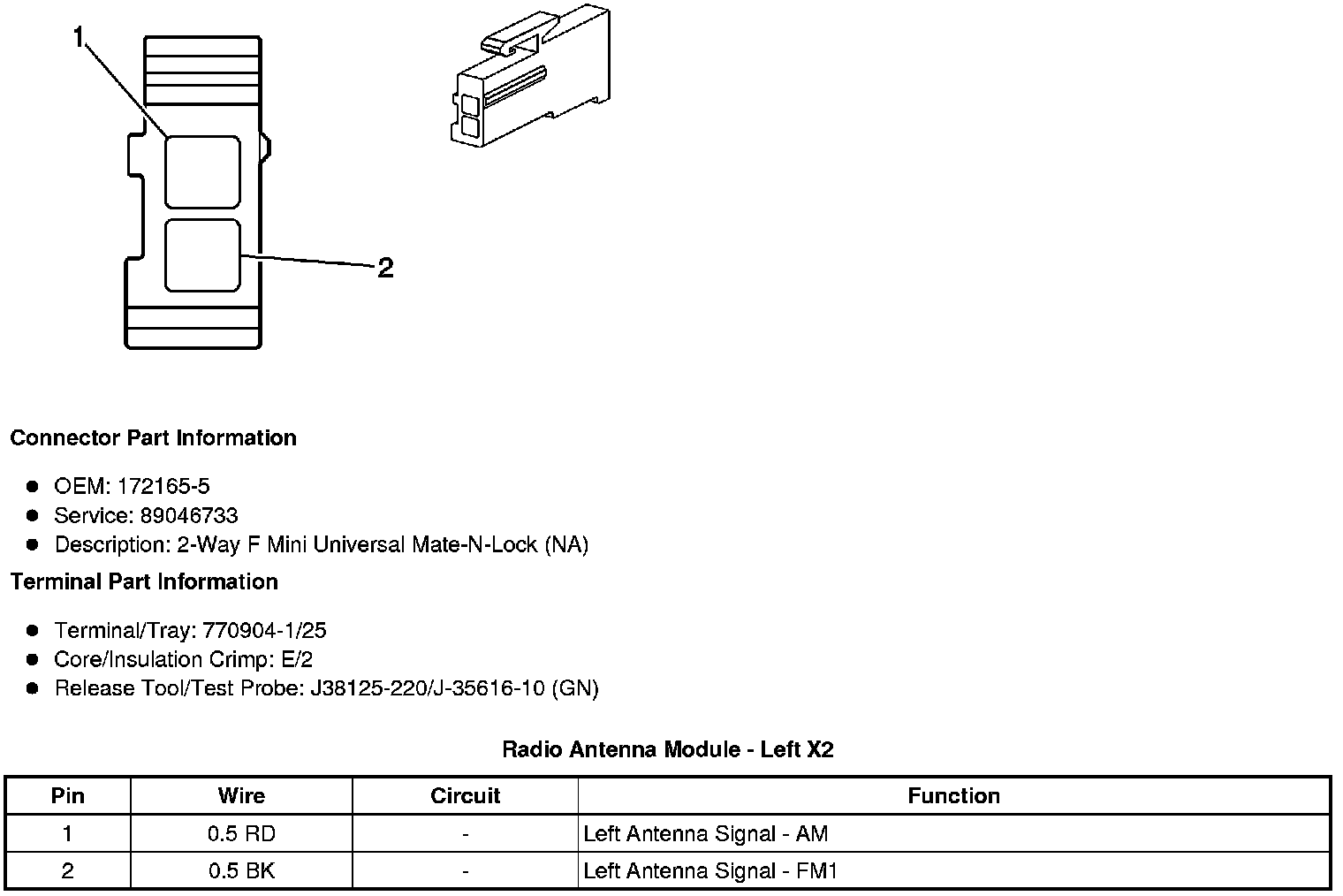

Radio Antenna Module - Left X2

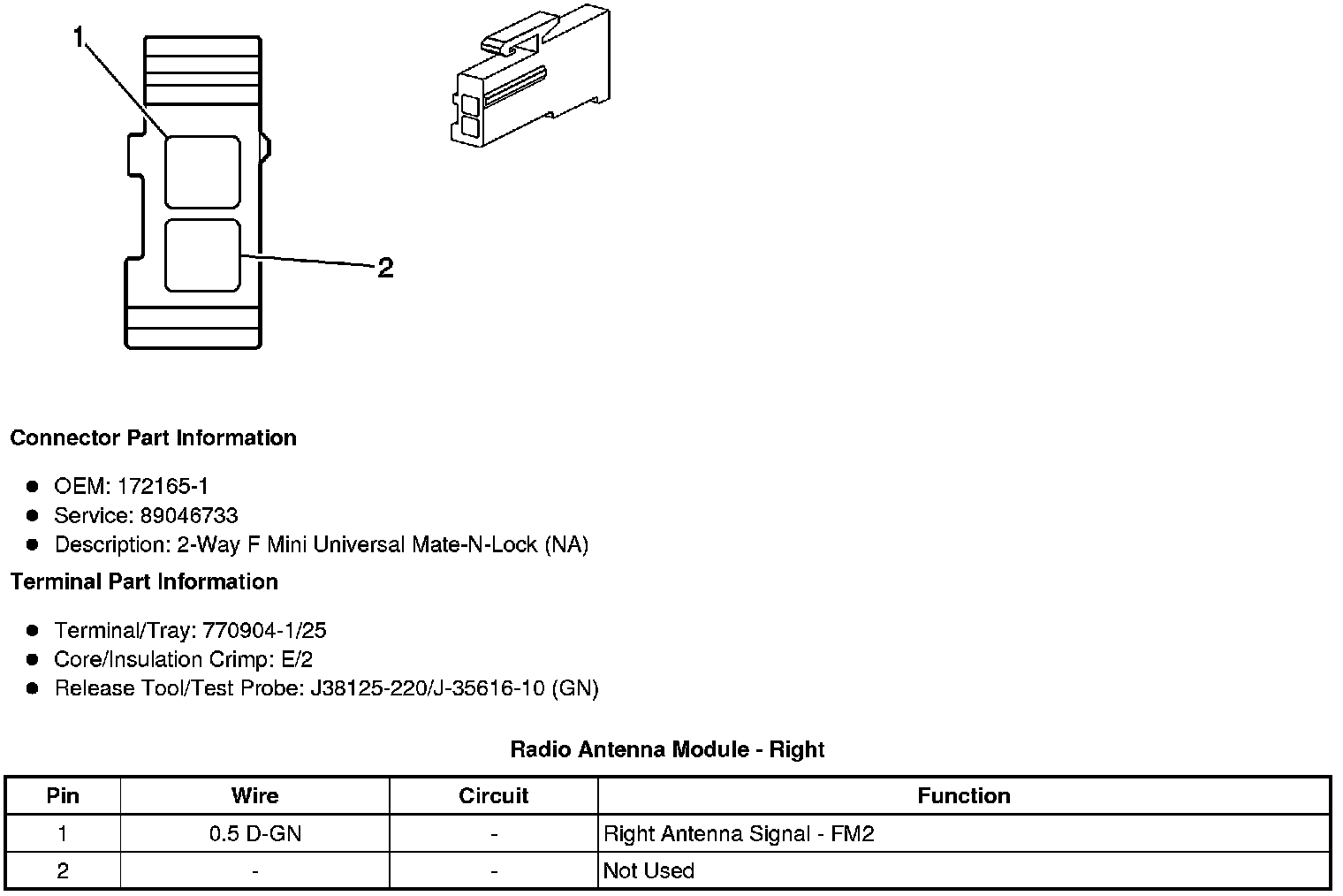

Radio Antenna Module - Right
