Home
>>
Chevrolet
>>
2008
>>
Malibu L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery Control Module
Battery Control Module
Component Connector End Views

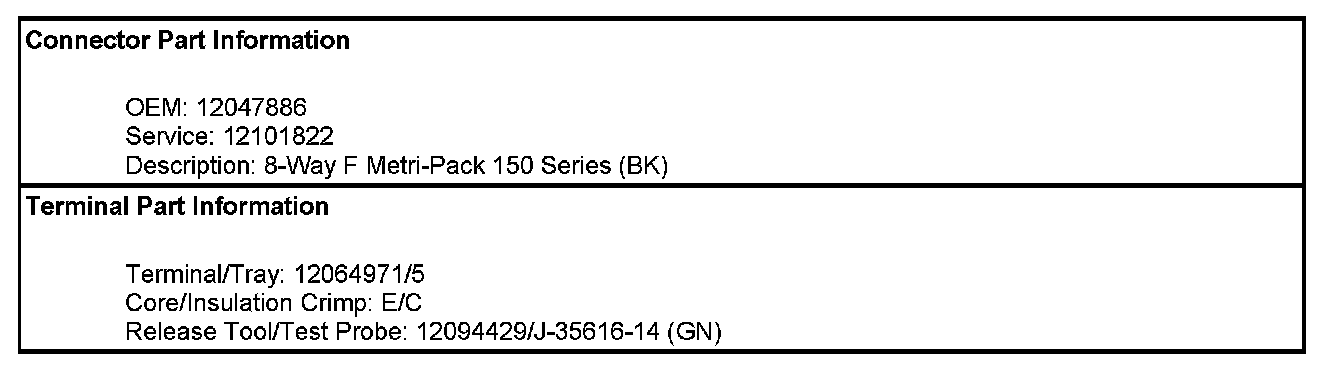

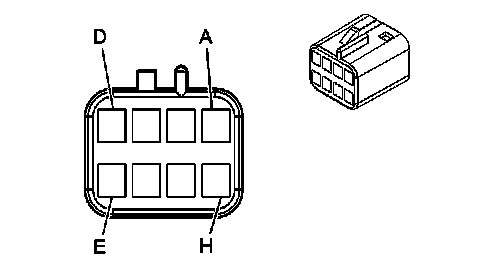

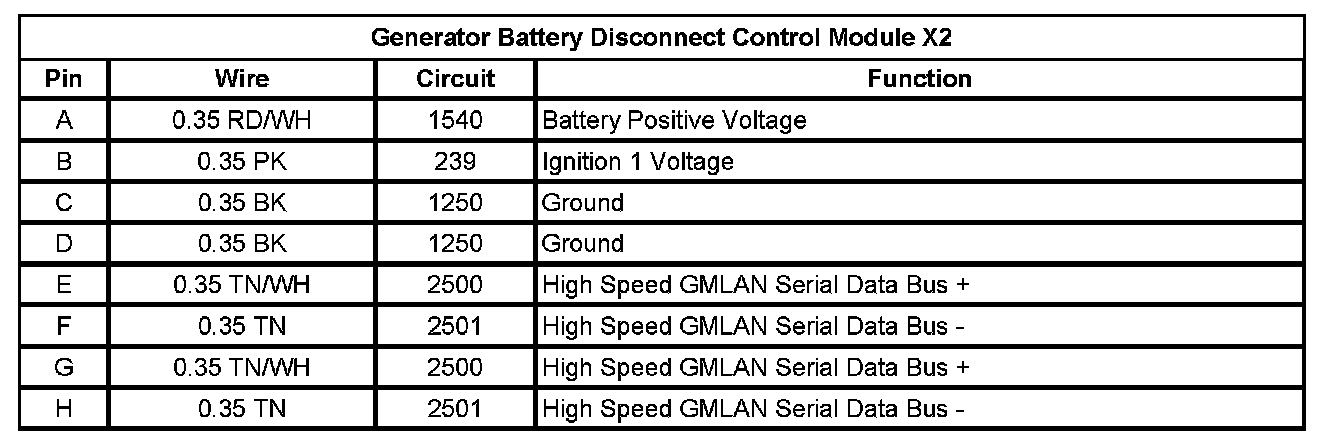

Generator Battery Disconnect Control Module X2
