Seat Belt Tension Sensor
Seat Belt Tension Sensor

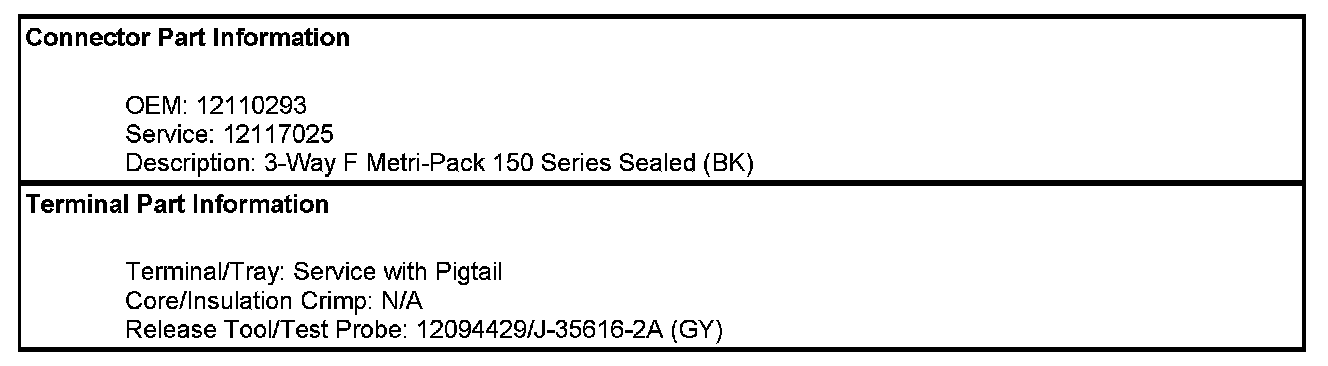

Component Connector End Views - Continued

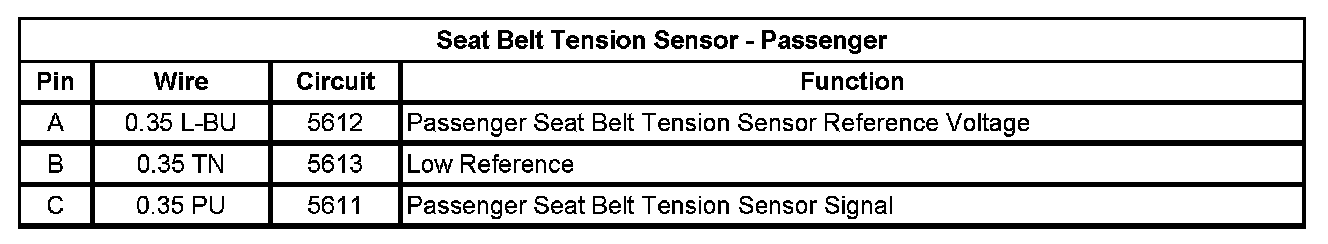

Seat Belt Tension Sensor
- Passenger
