Impala V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Branching Point
>>

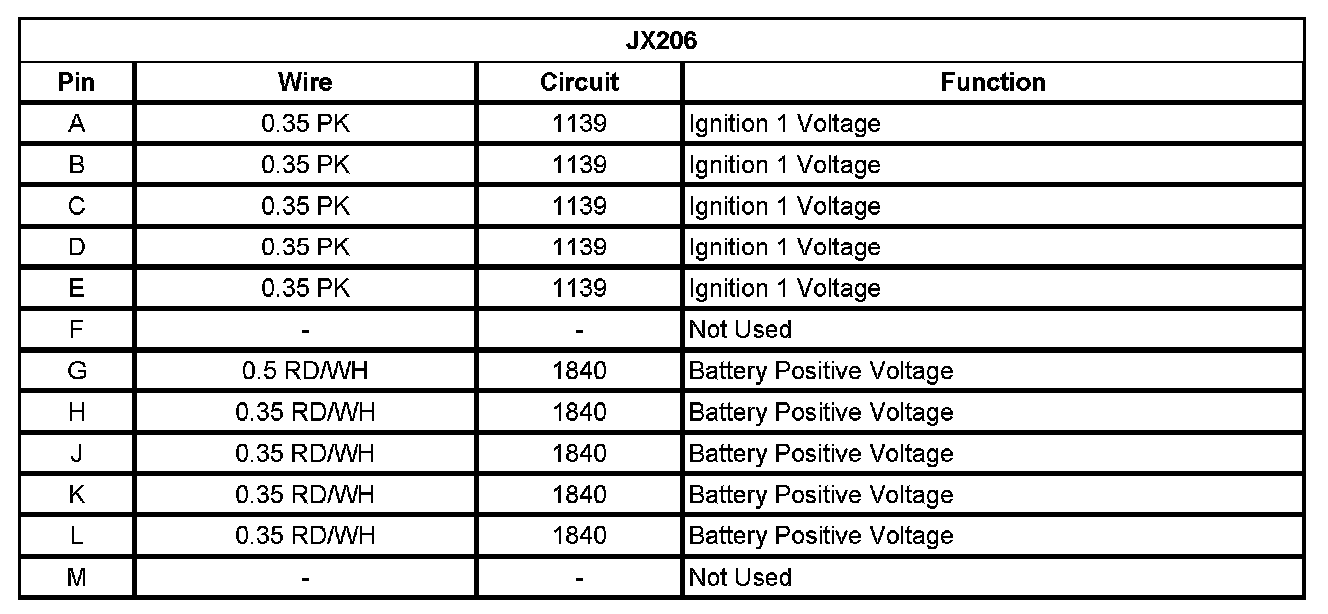

JX206
JX206

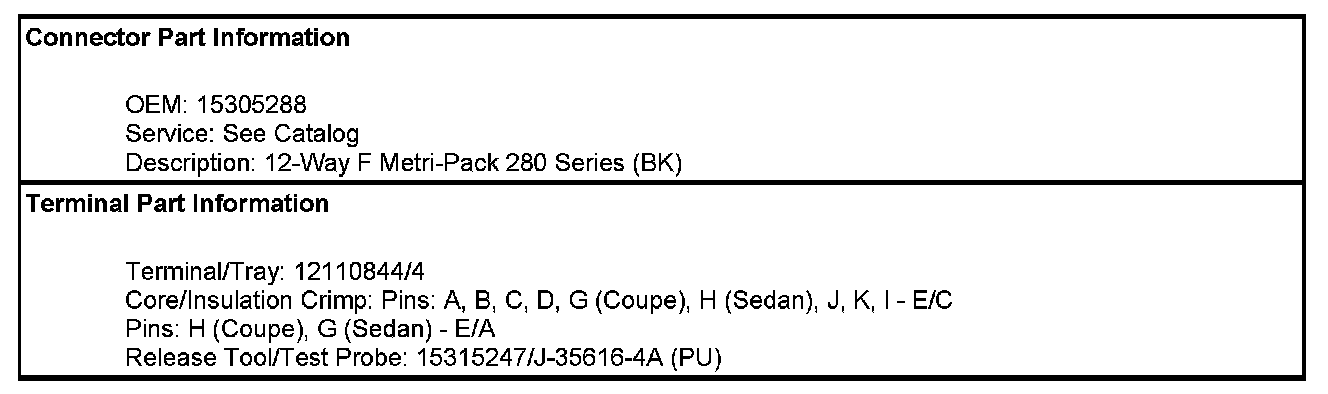

Splice Pack Connector End Views
JX206
