Home >> Chevrolet >> 2008 >> Aveo L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

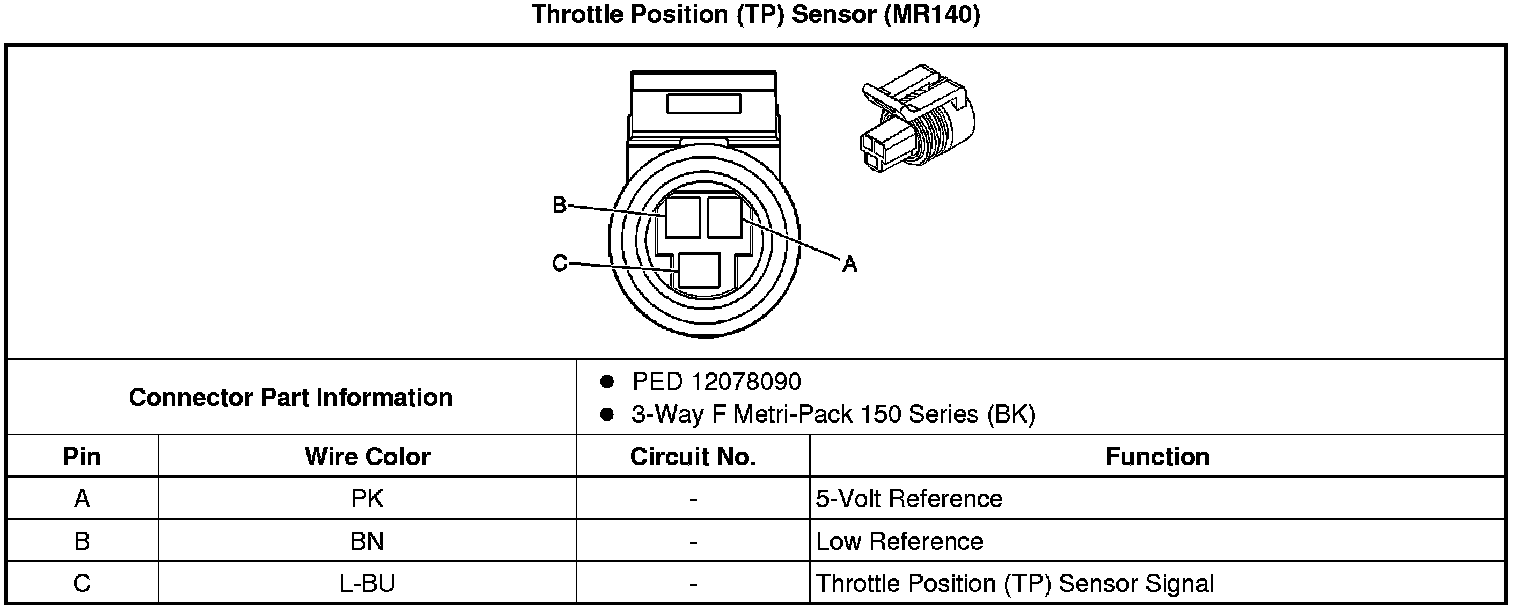

Throttle Position Sensor: Diagrams



Engine Controls Connector End Views (Notchback)
