Connector Views



Displays and Gages Connector End Views

Engine Oil Pressure (EOP) Switch

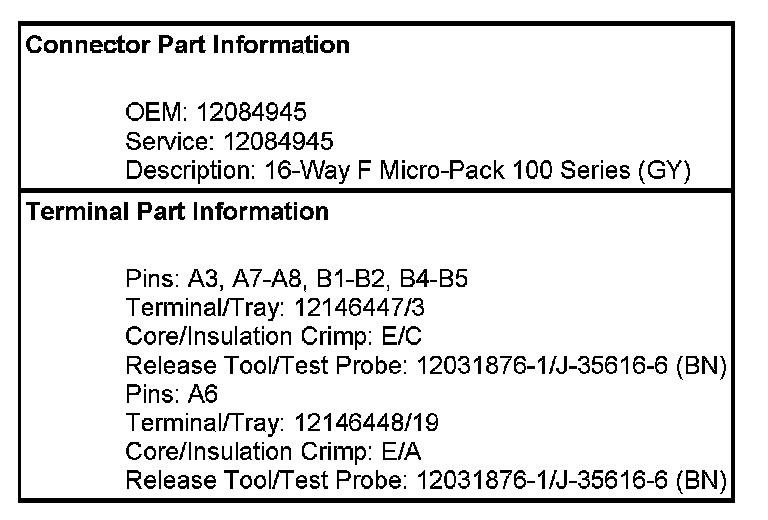

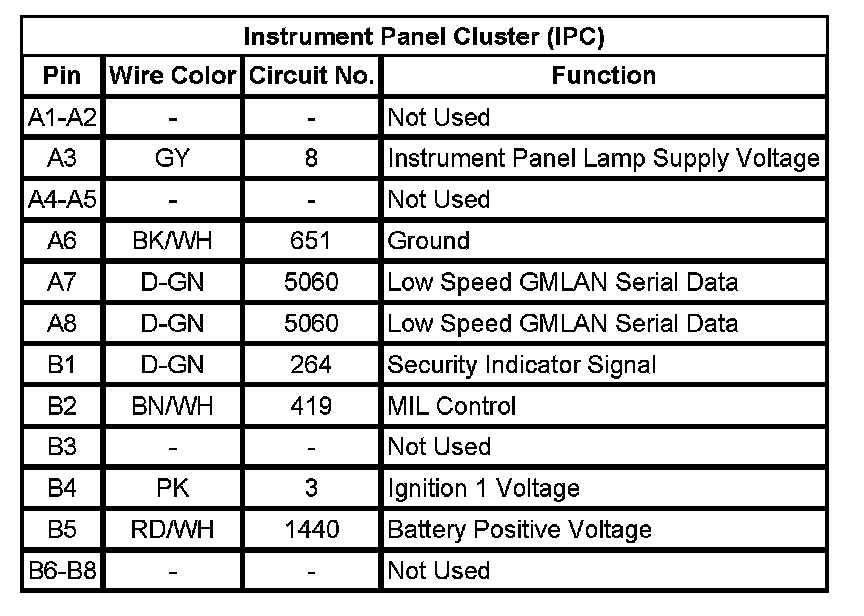

Instrument Panel Cluster (IPC)
