Vehicle Access Connector End Views



Vehicle Access Connector End Views

Window Switch - Driver C1

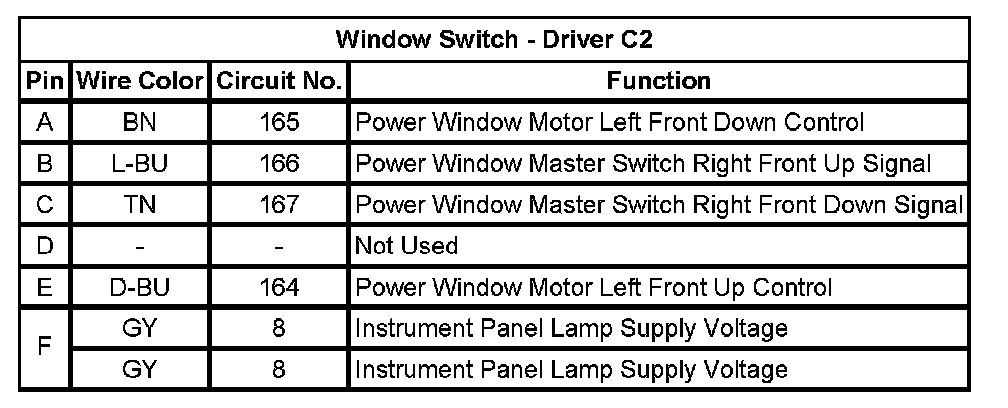

Window Switch - Driver C2














Window Switch - Passenger














Window Switch - LR

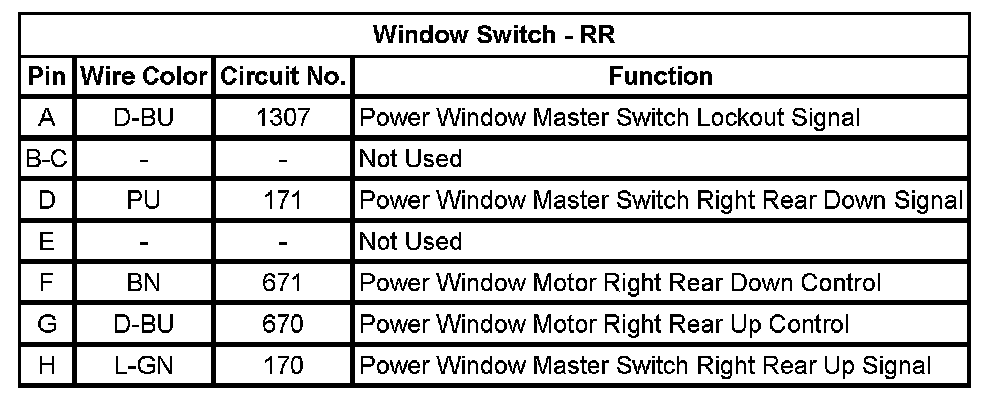

Window Switch - RR
