Home >> Chevrolet >> 2007 >> Impala V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Mount >> Service and Repair >> Automatic Transmission Brace Replacement (RPOs LZ9 / LZE)

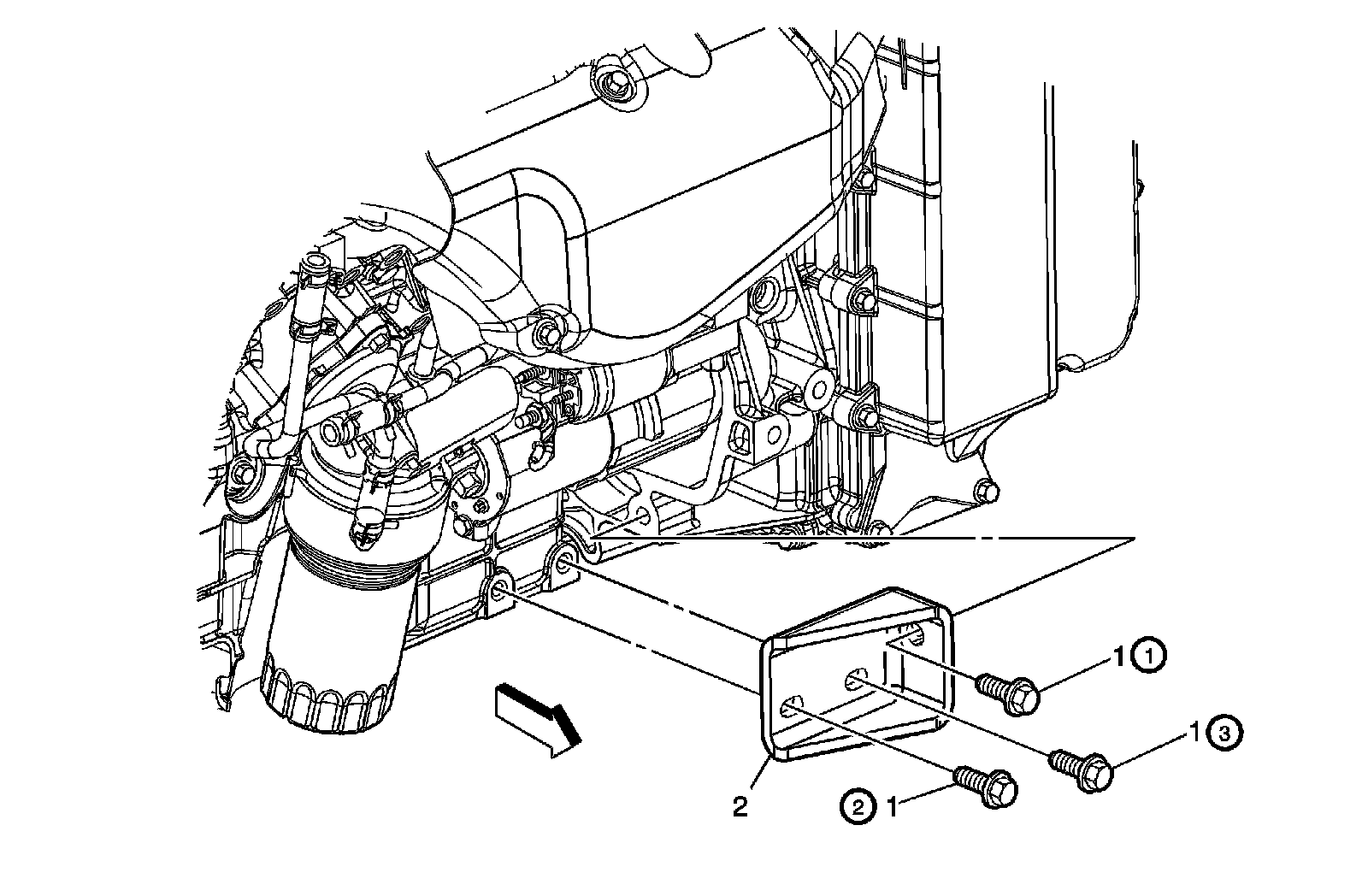

Automatic Transmission Brace Replacement (RPOs LZ9 / LZE)



Automatic Transmission Brace Replacement (RPOs LZ9 / LZE)

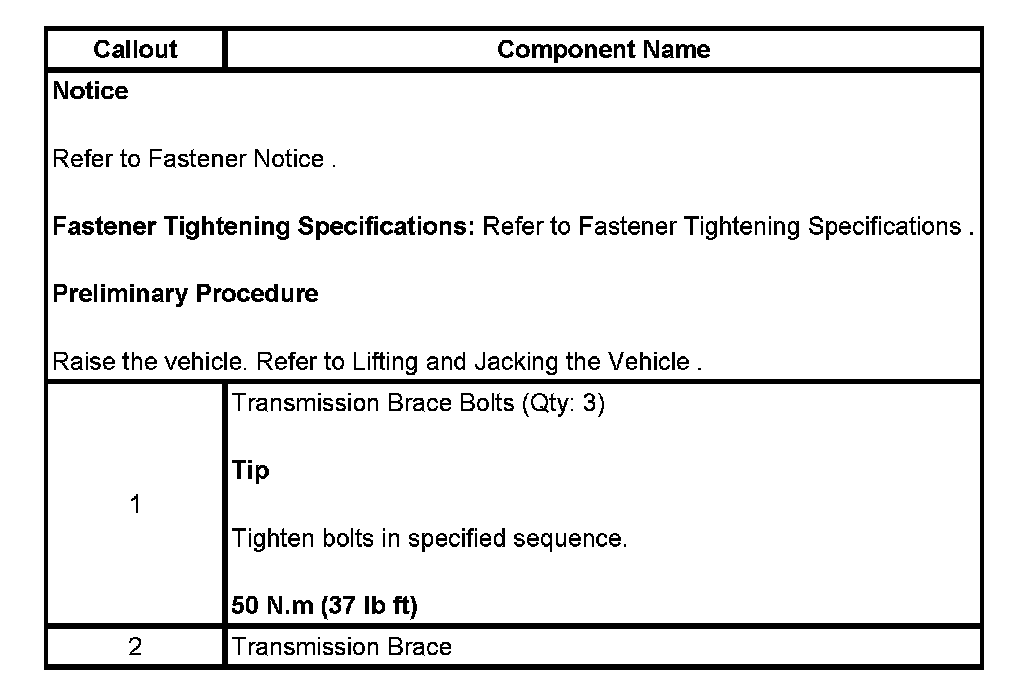

Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
