Engine Mount Bracket Replacement - Left

Engine Mount Bracket Replacement - Left Side

Removal Procedure




1. Remove the engine mount strut.
2. Remove the left exhaust manifold.

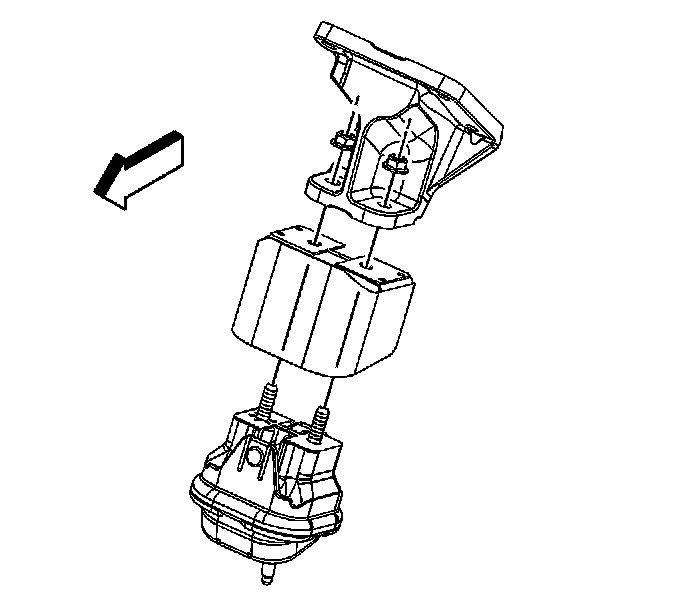

3. Remove the upper engine mount nuts.
4. Install the engine support fixture.
5. Using the engine support fixture, raise the engine.

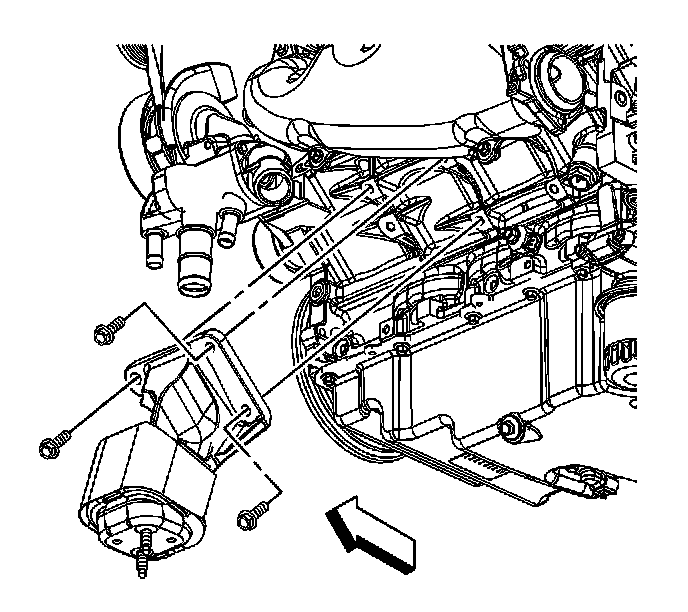

6. Remove the engine mount bracket bolts.
7. Remove the engine mount bracket.

Installation Procedure




1. Install the engine mount bracket.

Notice: Refer to Fastener Notice.

2. Install the engine mount bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).




3. Using the engine support fixture, lower the engine.
4. Remove the engine support fixture.
5. Install the upper engine mount nuts.

Tighten the nuts to 50 N.m (37 lb ft).

6. Install the left exhaust manifold.
7. Install the engine mount strut.
