Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Balancer Replacement

Tools Required
* EN 47699 Flywheel Holding Tool
* J 41665 Crankshaft Balancer and Sprocket Installer
* J 41816 Crankshaft Balancer Remover
* J 41816-2 Crankshaft End Protector
* J 42640 Steering Column Anti-Rotation Pin
* J 45059 Torque Angle Meter

Removal Procedure




1. Install a J 42640.
2. Remove the accessory drive belt.
3. Remove the air cleaner upper housing.
4. Remove the engine mount strut.
5. Remove the starter motor.
6. Remove the front fender splash shield.
7. Remove the transmission bellhousing bolt located at approximately the 10 o'clock position when looking from the rear of the engine.
8. Disconnect the transaxle cooler lines at the transaxle.
9. Remove the stabilizer shaft link lower nuts.
10. Remove the intermediate steering shaft pinch bolt and separate the shaft from the steering gear.
11. Remove the front lower air deflector braces and the deflector.
12. Remove the radiator to frame braces.
13. Install the engine support fixture.
14. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
15. Remove the frame to body bolts.

Notice: Refer to Fastener Notice.

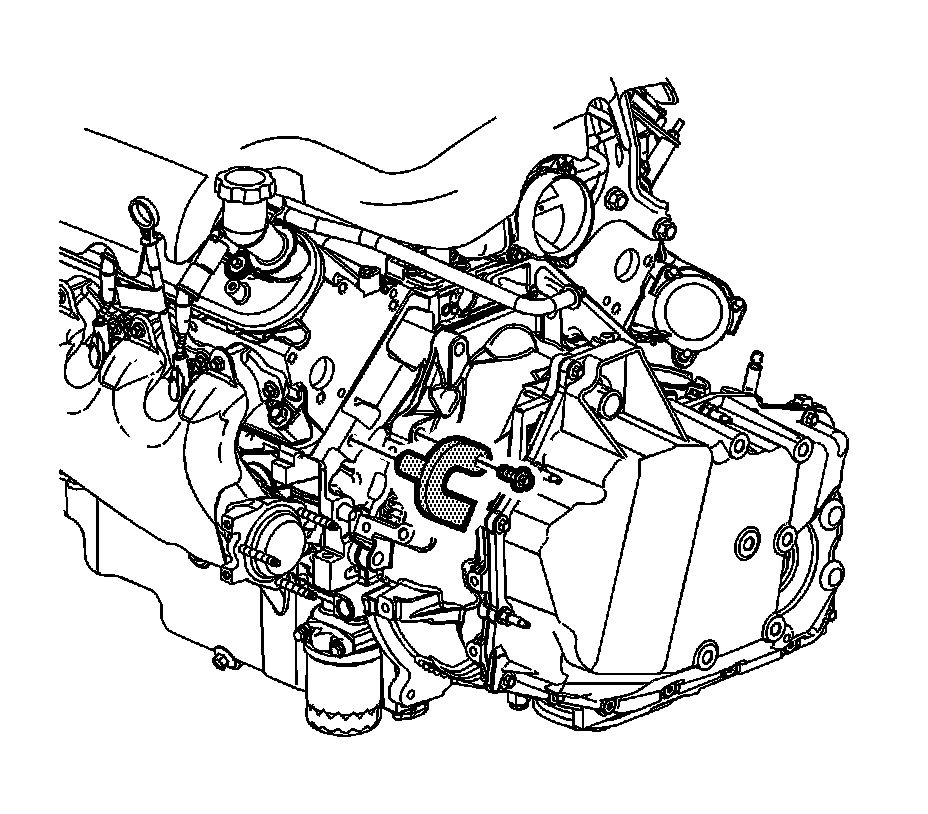

16. Install the EN 47699 and bolt to the block and flywheel.

Tighten the bolt to 60 N.m (44 lb ft).

17. Remove the right front tire and wheel assembly.
18. Lower the engine approximately 100 mm (4 in).




19. Remove the crankshaft balancer bolt (139).
Do not discard the crankshaft balancer bolt. The balancer bolt will be used during the balancer installation procedure.




20. Install the J 41816 (1) and the J 41816-2 (2), to the crankshaft balancer.




21. Remove the crankshaft balancer (138).
22. Remove the J 41816 and the J 41816-2 from the crankshaft balancer.

Installation Procedure

Important:
* The used crankshaft balancer bolt will be used only during the first pass of the balancer installation procedure. Install a NEW bolt and tighten as described in the second, third and forth passes of the balancer bolt tightening procedure.

* The crankshaft balancer installation and bolt tightening involves a four stage tightening process. The first pass ensures that the balancer is installed completely onto the crankshaft. The second, third, and forth passes tighten the new bolt to the proper torque.

* The balancer should be positioned onto the end of the crankshaft as straight as possible prior to tool installation.




1. Position the crankshaft balancer (138) onto the end of the crankshaft.




2. Using the J 41665, install the crankshaft balancer.

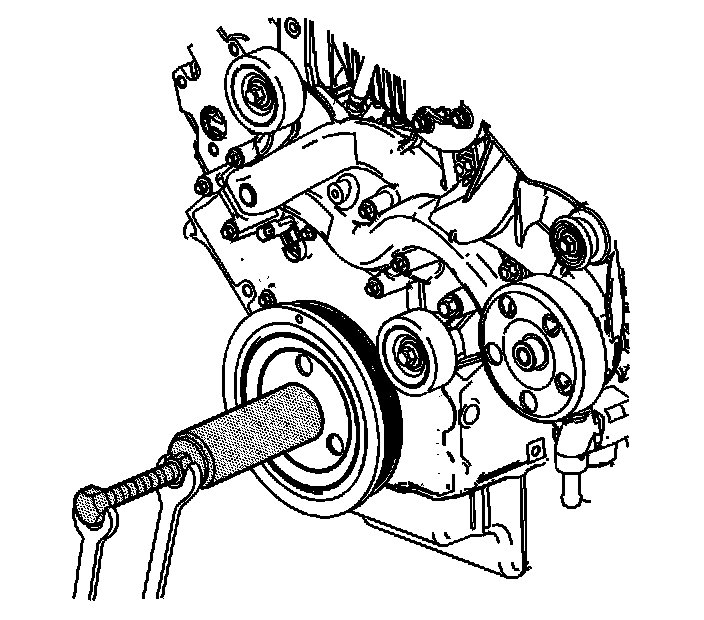

1. Assemble the threaded rod, nut, washer and installer. Insert the smaller end of the installer into the front of the balancer.
2. Use a wrench and hold the hex end of the threaded rod.
3. Use a second wrench and rotate the installation tool nut clockwise until the balancer is started onto the crankshaft.
4. Remove the tool and reverse the installation tool. Position the larger end of the installer against the front of the balancer.
5. Use a wrench and hold the hex end of the threaded rod.
6. Use a second wrench and rotate the installation tool nut clockwise until the balancer is installed onto the crankshaft.
7. Remove the balancer installation tool.




3. Install the USED crankshaft balancer bolt (139).

Tighten the USED bolt to 330 N.m (240 lb ft).

4. Remove the USED crankshaft balancer bolt.





Important: The nose of the crankshaft should be recessed 2.4-4.48 mm (0.094-0.176 in) into the balancer bore.

5. Measure for a correctly installed balancer. If the balancer is not installed to the proper dimensions, install the J 41665 and repeat the installation procedure.




6. Install a NEW crankshaft balancer bolt (139).

* Tighten the bolt a first pass to 50 N.m (37 lb ft).
* Tighten the bolt a second pass to 140 degrees using J 45059.




* Remove the EN 47699 and bolt from the block and flywheel.
* Install the transmission bellhousing bolt located at approximately the 10 o'clock position when looking from the rear of the engine.

Tighten the bolt to 75 N.m (55 lb ft).

* Raise and properly position the frame and install the frame to body bolts. Refer to Frame Replacement.
* Install the frame to radiator braces.
* Install the front lower air deflector.
* Connect the intermediate steering shaft to the steering gear.
* Install the stabilizer shaft link lower nuts.
* Connect the transaxle cooler lines to the transaxle.
* Remove the engine support fixture.
* Install the front fender splash shield.
* Install the starter motor.
* Install the air cleaner upper housing.
* Install the accessory drive belt.
* Install the engine mount strut.
* Install the right front tire and wheel assembly.
* Perform the crankshaft position (CKP) system variation learn procedure. Refer to Crankshaft Position System Variation Learn. Service and Repair
