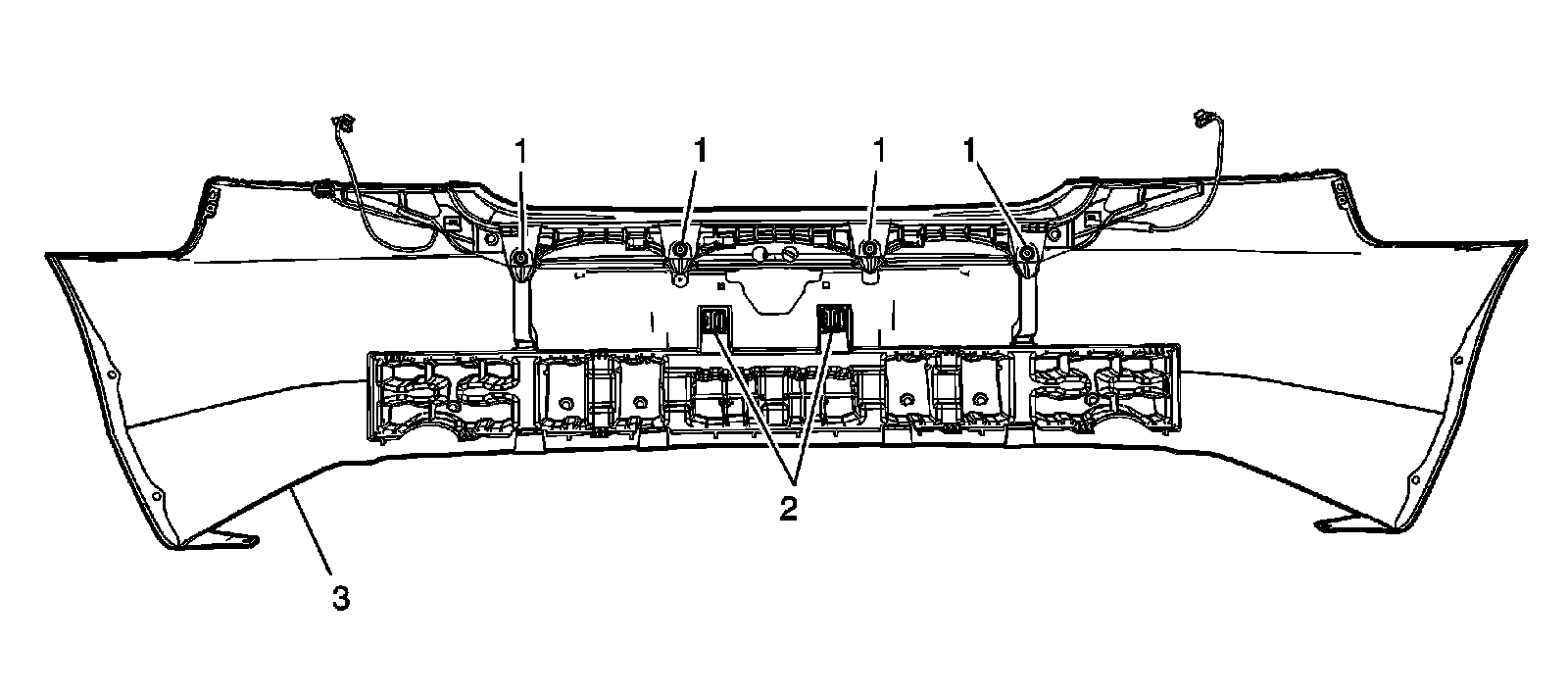

Rear Energy Absorber Replacement (Impala)


Rear Energy Absorber Replacement (Impala)

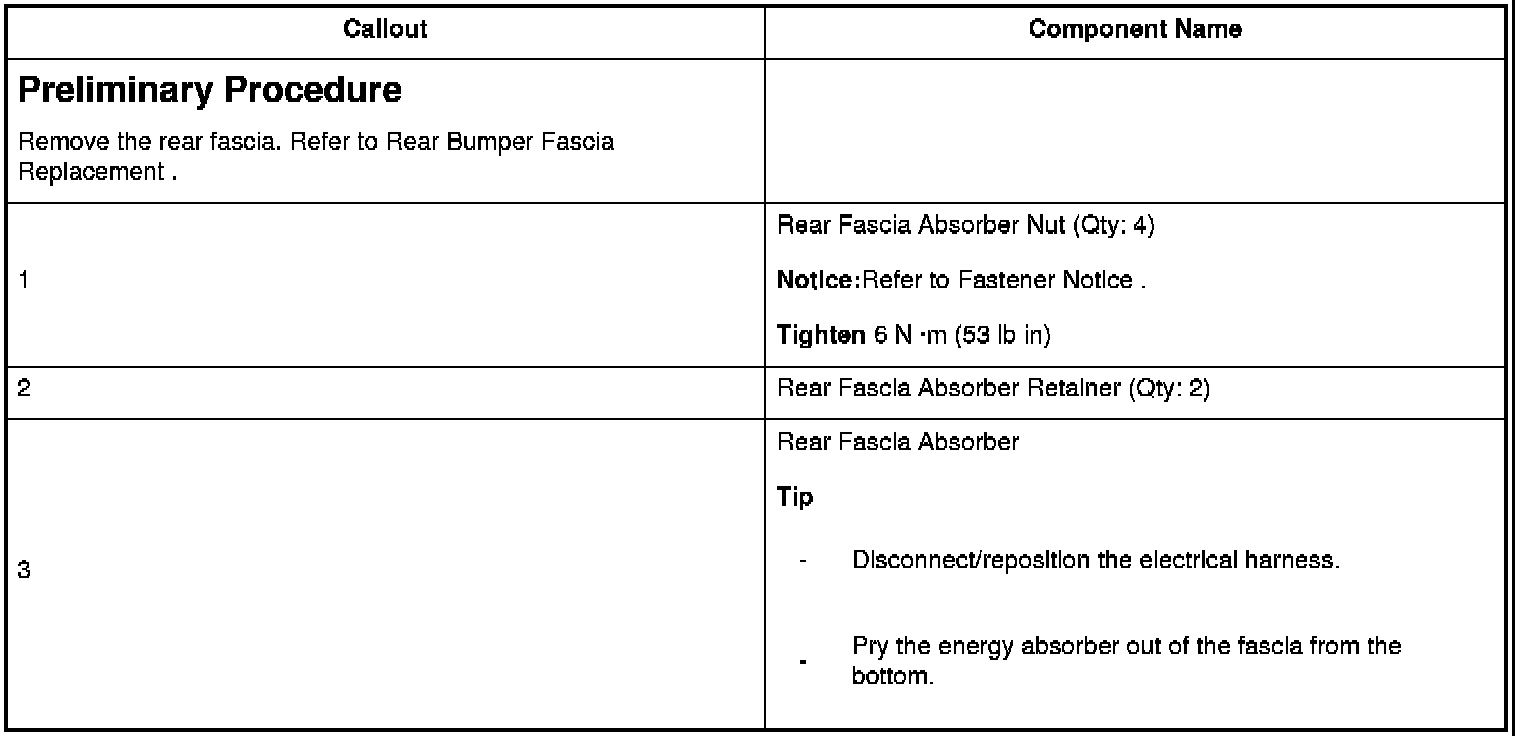

Preliminary Procedure

Notice:Refer to.
Tighten
Tip-Disconnect/reposition the electrical harness.-Pry the energy absorber out of the fascia from the bottom.
