Transmission Fluid Cooler Upper Pipe Replacement - Rear - To Differential Cooler

Transmission Fluid Cooler Upper Pipe Replacement - Rear - To Differential Cooler

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Lower and support the rear of the exhaust.
3. Install a drain pan under the vehicle.

Important: Cap or plug the open transmission fluid cooler pipes immediately to prevent system contamination.

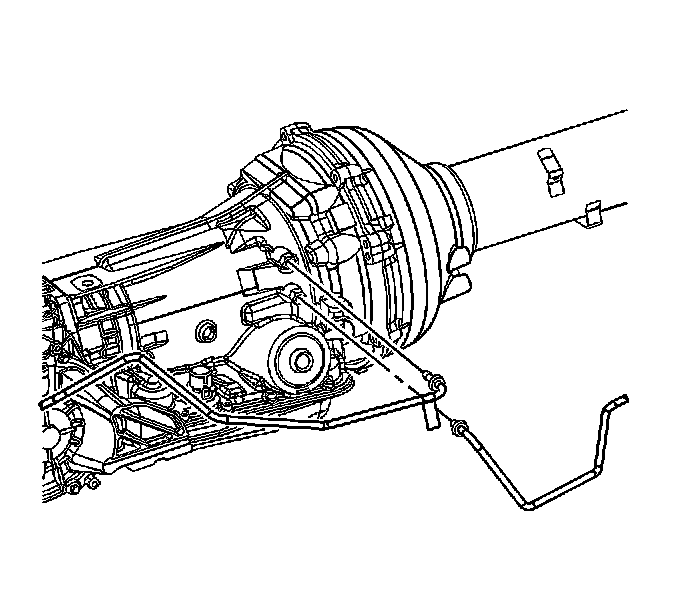

4. Disconnect the rear transmission fluid cooler upper pipe from the transmission.




5. Remove the transmission fluid cooler pipes clip.
6. Disconnect the rear transmission fluid cooler upper pipe from the Differential oil cooler.
7. Remove the rear to differential cooler transmission fluid cooler upper pipe from the vehicle.

Installation Procedure

1. Install the rear to differential cooler transmission fluid cooler upper pipe to the vehicle.




2. Connect the rear transmission fluid cooler upper pipe to the transmission.




3. Connect the rear transmission fluid cooler upper pipe to the Differential oil cooler.
4. Install the transmission fluid cooler pipes clip.
5. Check the transmission fluid level, add fluid if necessary.
6. Raise and secure the rear of the exhaust.
7. Remove the drain pan.
8. Lower the vehicle. Refer to Vehicle Lifting.
