Front Suspension

Stabilizer Shaft Link Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.

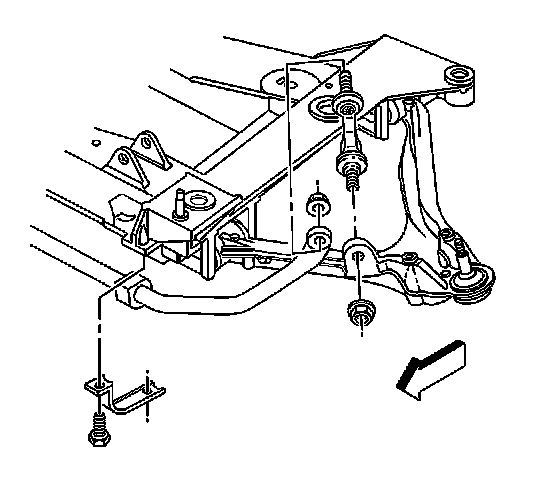

3. Remove the stabilizer shaft link nuts.
4. Remove the stabilizer shaft link from the stabilizer shaft and lower control arm.

Installation Procedure




1. Install the stabilizer shaft link into the stabilizer shaft and lower control arm.

Notice: Refer to Fastener Notice.

2. Install the stabilizer shaft link nuts.

Tighten the stabilizer shaft link nuts to 76 N.m (56 lb ft).

3. Install the tire and wheel assembly.
4. Lower the vehicle.
