Surge Tank Replacement

Surge Tank Replacement

Tools Required

J 38185 Hose Clamp Pliers

Removal Procedure

Caution: To avoid being burned, do not remove the radiator cap or surge tank cap while the engine is hot. The cooling system will release scalding fluid and steam under pressure if radiator cap or surge tank cap is removed while the engine and radiator are still hot.

1. Drain the cooling system. Refer to Draining and Filling Cooling System (GE 47716) Draining and Filling Cooling System (Static Fill).

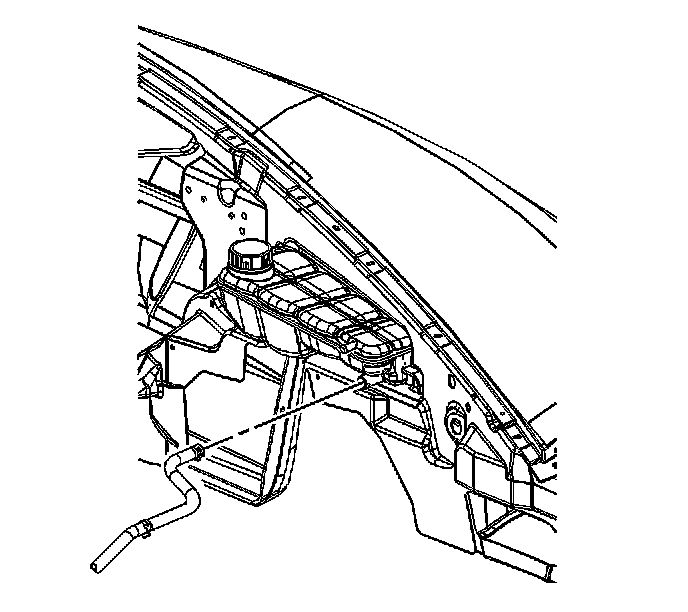

2. Disengage tension on the surge tank inlet hose clamp.
3. Disconnect the surge tank inlet hose from the surge tank.




4. Disengage tension on the surge tank outlet hose clamp using the J 38185.
5. Disconnect the surge tank outlet hose from the surge tank.

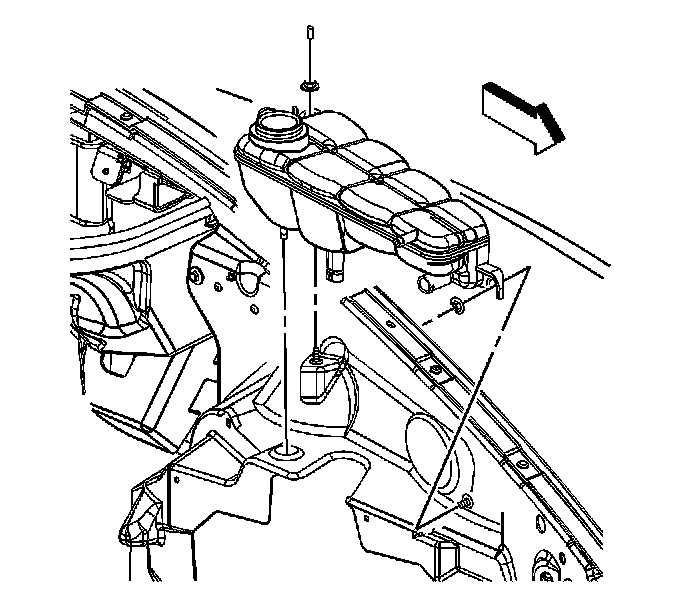

6. Remove the protective cap on the surge tank upper stud.
7. Remove the surge tank upper nut.
8. Loosen the surge tank side nut.
9. Remove the surge tank.

Installation Procedure





Important: Lubricate the inside diameters of the hoses with clean coolant prior to installation.

1. Install the surge tank.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper surge tank nut.

Tighten all nuts to 8 N.m (71 lb in).

3. Install the protective cap on the surge tank upper stud.




4. Connect the surge tank outlet hose to the surge tank.
5. Engage tension on the surge tank outlet hose clamp.




6. Connect the surge tank inlet hose to the surge tank.
7. Engage tension on the surge tank inlet hose clamp.
8. Fill the cooling system. Refer to Draining and Filling Cooling System (GE 47716) Draining and Filling Cooling System (Static Fill).
