Vanity Lamp
Vanity Lamp
Lighting Systems Connector End Views

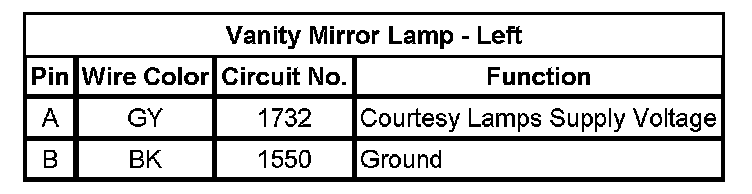

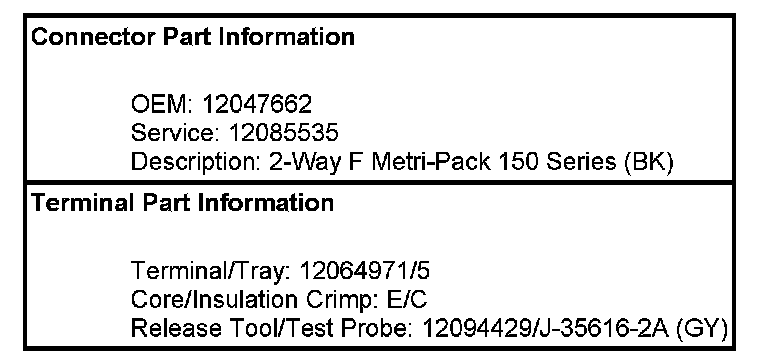

Vanity Mirror Lamp - Left

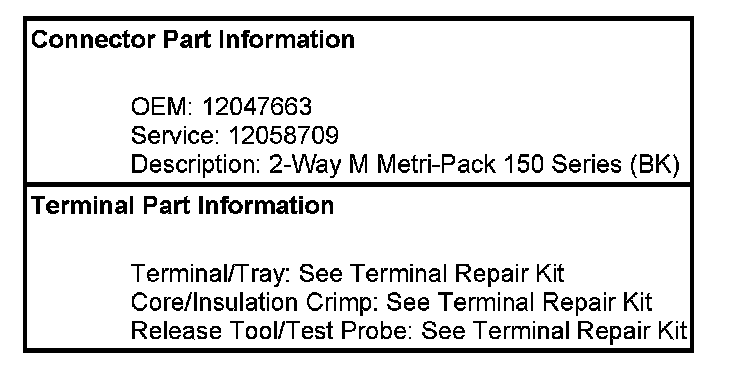

Vanity Mirror Lamp - Right
