Diagrams
>>
Connector Views
>>
Suspension Mode Switch
Suspension Mode Switch

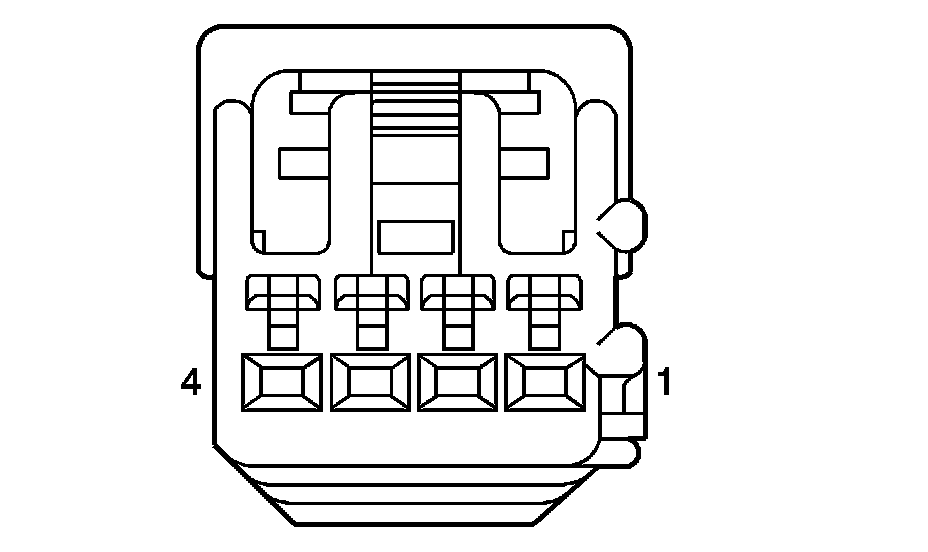

Electronic Suspension Control Connector End Views

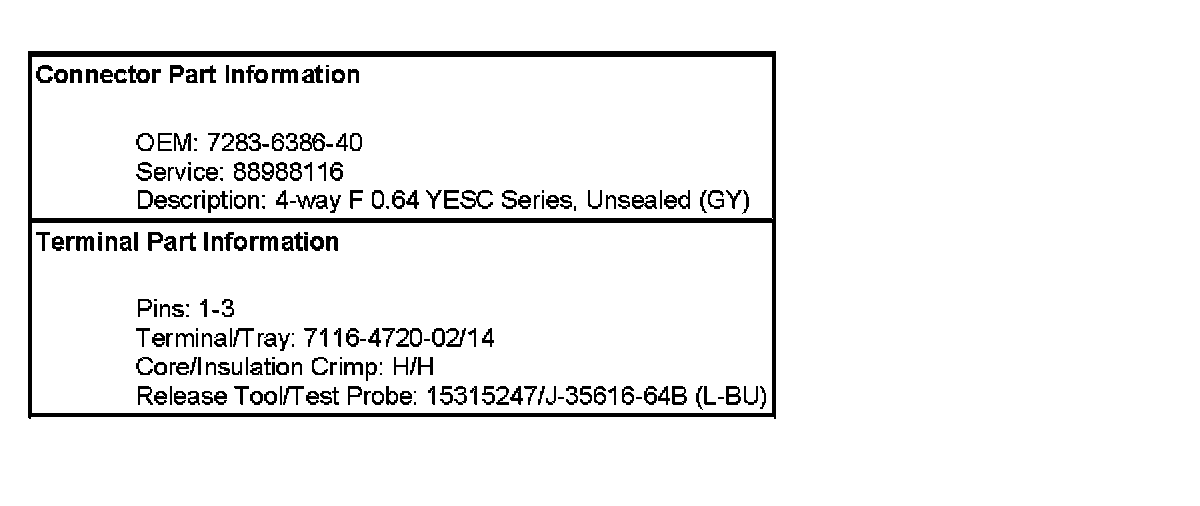

Suspension Control Switch:
