Solar Sensor, HVAC
>>
Sunload Sensor Assembly
Sunload Sensor Assembly

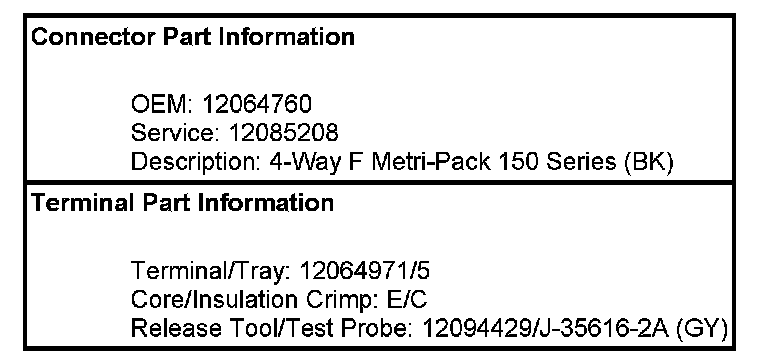

Lighting Systems Connector End Views

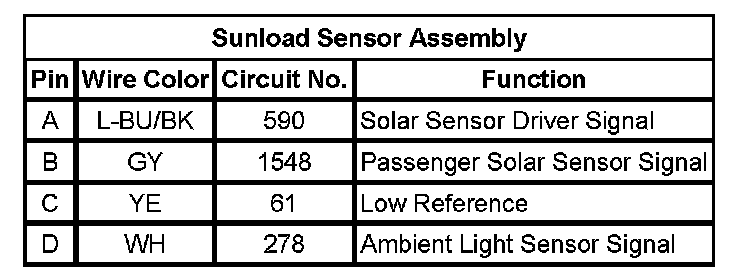

Sunload Sensor Assembly
