C666
C666

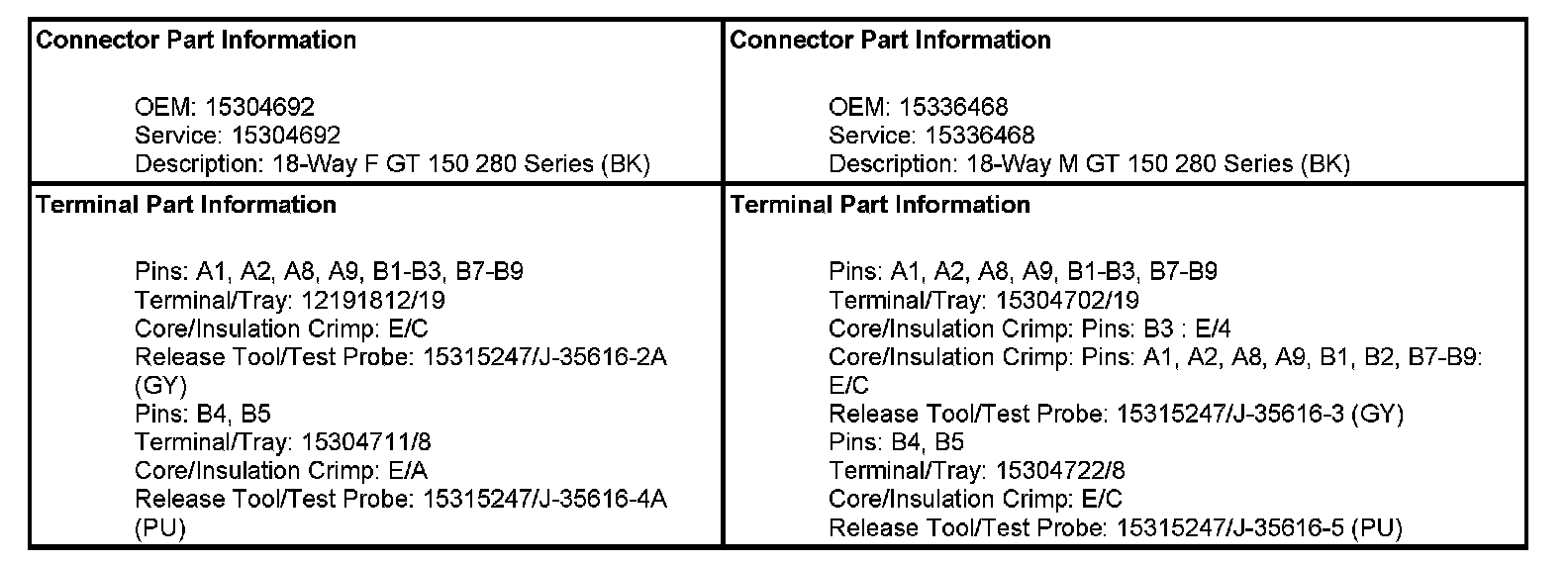

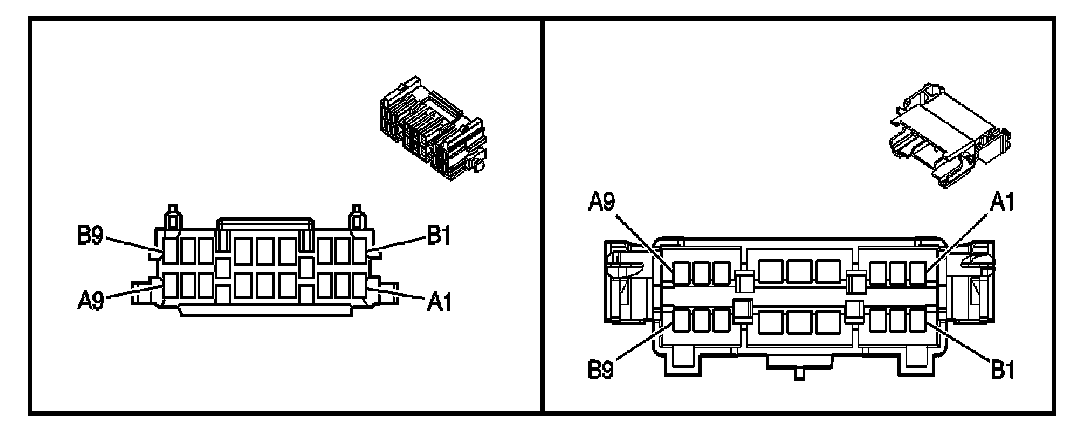

Inline Harness Connector End Views

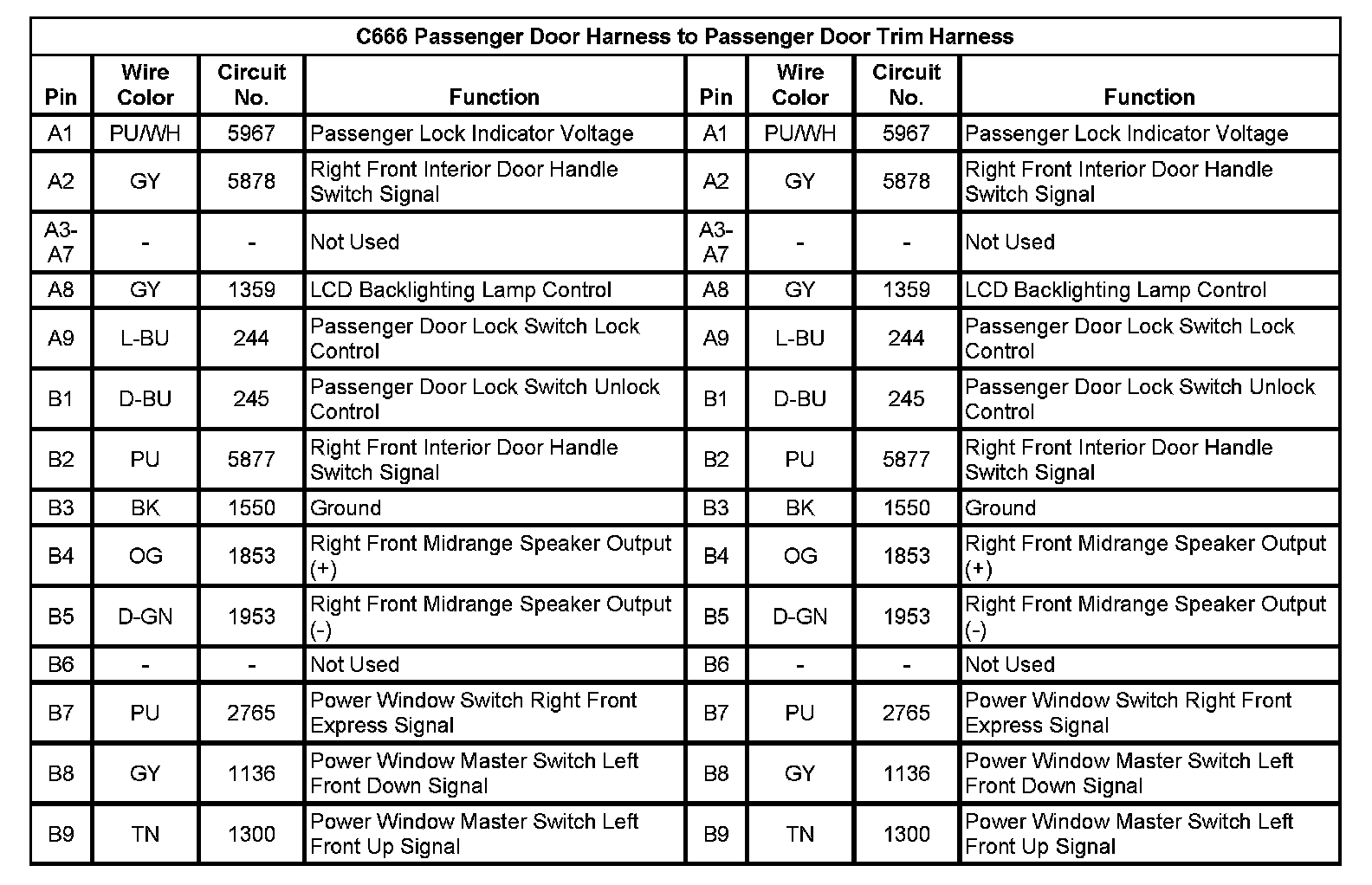

C666 Passenger Door Harness to Passenger Door Trim Harness
