Chevrolet
>>
2007
>>
Corvette V8-7.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Purge Solenoid
Canister Purge Solenoid

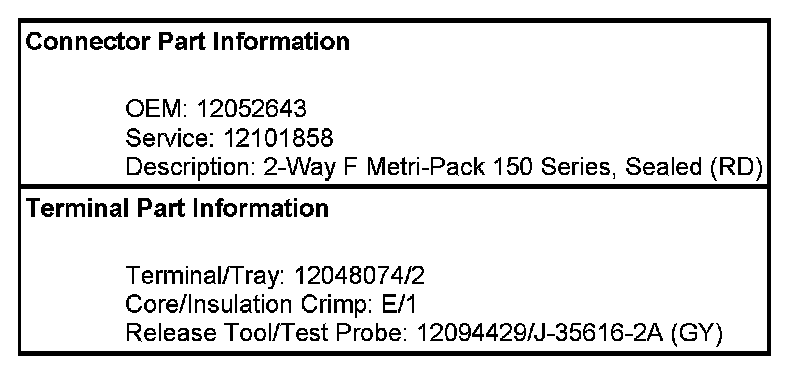

Engine Controls Connector End Views

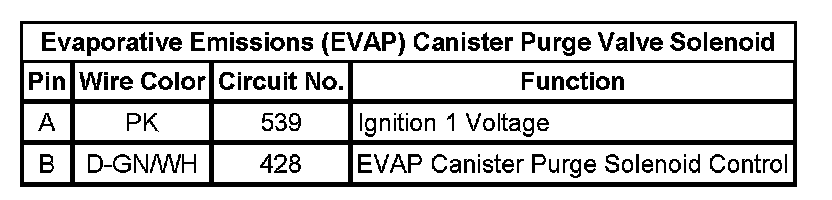

Evaporative Emissions (
EVAP
) Canister Purge Valve Solenoid
